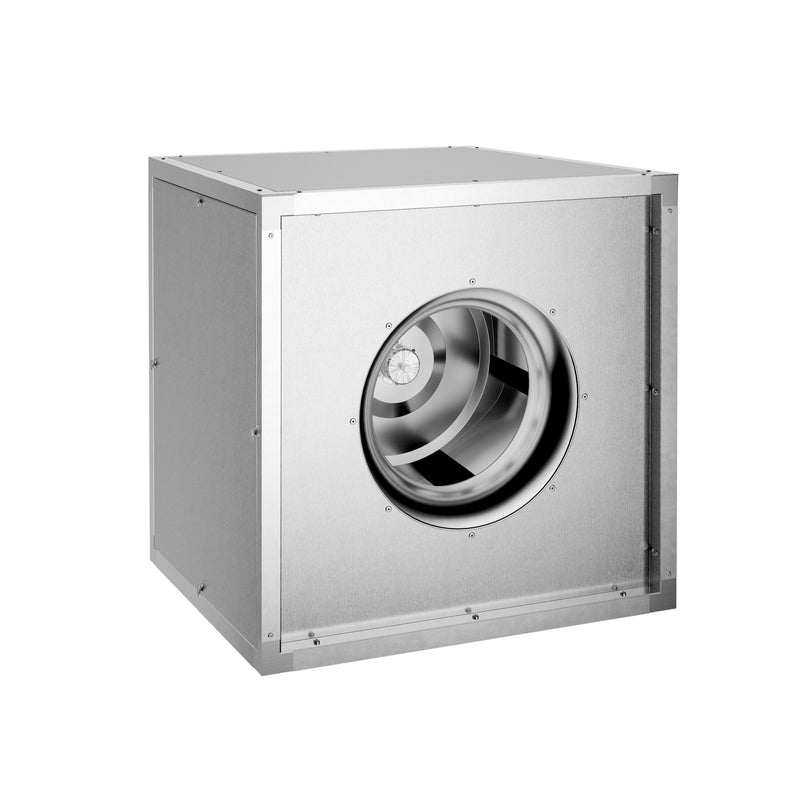

Air Box Pro - 4000 m³ per hour
Stan: Nowy
Kraj produkcji: Italy
Free Shipping
Sz.560mm Gł.560mm Wys.560mm
VDI 4000 PRO4 3F 4P 1V
I18n Error: Missing interpolation value "from" for "På lager: {{ from }} - {{ to }} Dage"
Free Shipping
Description
Characteristics
- PREMIUM model
- Engine made in Italy
- Engine power 4,000 m³
- With centrifugal fan
- Air intake is already turned off
- Highest power with low energy consumption
- Easy fan removal
- Easy to clean
Quality
- Weather-resistant cladding made of galvanized steel sheet
- Thermal and acoustic insulation (rigid polyurethane foam insulation)
Connection
- Power: 420 Watts
- Electrical connection: 400VV / 3N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 560 mm x 560 mm x 560 mm
Guidelines
- Engine compliant with EU 1253/2014
- Compliance with DIN 18869 - T1 according to VDI 2052
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
* nie obejmuje produktów outletowych
Accessories
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- PREMIUM model
- Engine made in Italy
- Engine power 4,000 m³
- With centrifugal fan
- Air intake is already turned off
- Highest power with low energy consumption
- Easy fan removal
- Easy to clean
Quality
- Weather-resistant cladding made of galvanized steel sheet
- Thermal and acoustic insulation (rigid polyurethane foam insulation)
Connection
- Power: 420 Watts
- Electrical connection: 400VV / 3N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 560 mm x 560 mm x 560 mm
Guidelines
- Engine compliant with EU 1253/2014
- Compliance with DIN 18869 - T1 according to VDI 2052
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
sizes
| Width | 560mm |
|---|---|
| Depth | 560mm |
| Height | 560mm |
Details
| Air rotation per hour | 4,000 m³ |
|---|---|
| Temperature of pumped liquid | max. 40 °C |
Connected loads
| power | 420 Watt |
|---|---|
| Tension | 400V |
| Frequency | 50Hz |
| Current | 2.40A |
| Phases | 3N/PE |
Delivery
| Shipping Method | Forwarding agency |
|---|---|
| Delivery Status | Installed |
| Libra | 45kg |
