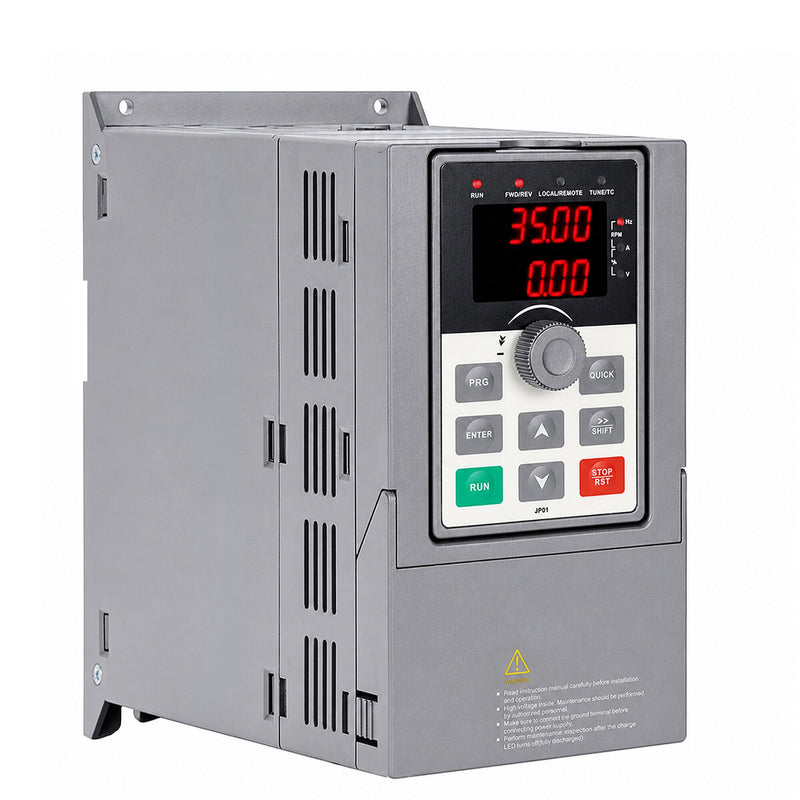

Frequency converter - 4 kW / 400V

Characteristics

• Frequency converter

• Removable control panel

• Flexible digital and analog I/O

• Easy, intuitive start-up and quick installation

• Flexible speed control via potentiometer

• Advanced PID control

• Overload capacity: 1 min 150% / 2 s 180%

• 10 Different speed control options

• 16 fixed speeds selectable via switch inputs

• Plug & Play

Equipment

• Open-Loop-Boost-Modus

• Integrated brake chopper

• 100% ground fault protection

• Over & Under Voltage Protection

• Overcurrent and undercurrent protection

• Overvoltage lock

• External stop signal

• IGBT temperature display

• External stop signal

• Password protection

Sizes

• External dimensions W x D x H: 90 mm x 163 mm x 166 mm

Connected loads

• Power: 4 kW

• Electrical connection: 3N/PE / 400V / 50 Hz - 60 Hz

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• Material compliant with European food standards
