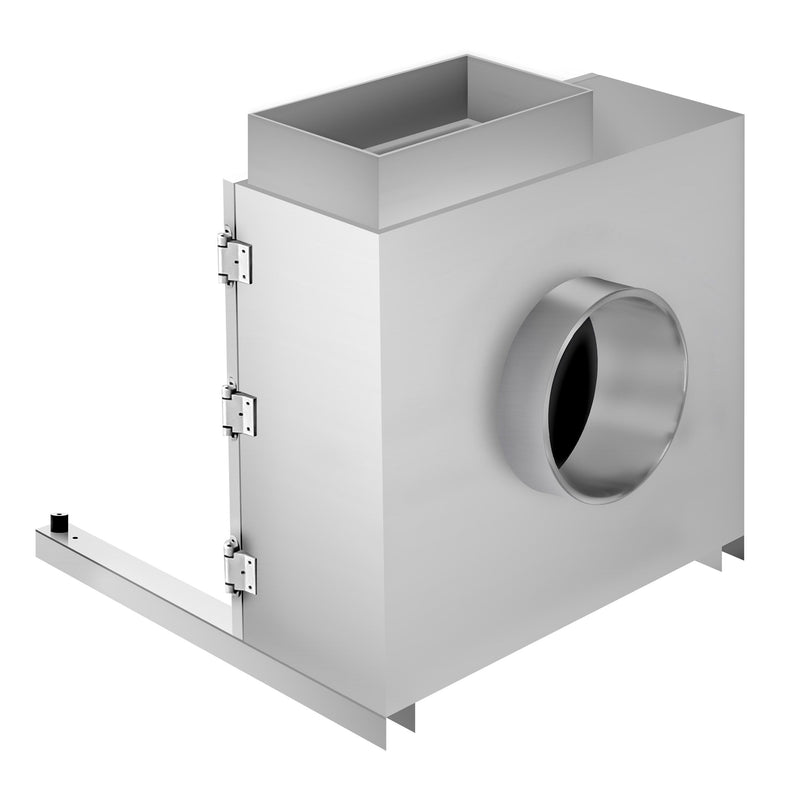

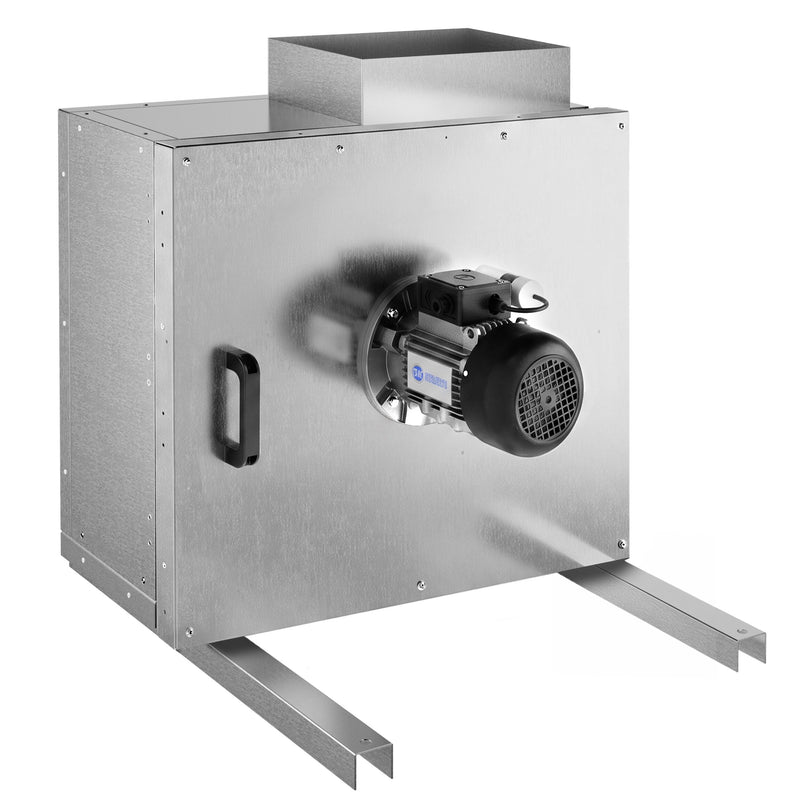

Air Box Pro - 4000 m³ per hour
Szerokość: 820mm - Głębokość: 870mm - Wysokość: 913mm
For higher temperatures - VDI 4000 W PRO 1F 4P 1V
Stan: New
Kraj produkcji: Italy
Free Shipping
7 660,97 zł netto
Free Shipping
Czas dostawy: 2-6 business days
Description
Characteristics
- PREMIUM model
- Engine made in Italy
- Maximum engine power 4,000 m³
- With centrifugal fan
- Specially designed for high temperatures up to 120 °C
- Air intake is already turned off
- Highest power with low energy consumption
- The inspection opening can be folded out for easier maintenance and cleaning
- Easy fan removal
- Easy to clean and wash
Quality
- Weather-resistant cladding made of galvanized steel sheet
- Thermal and acoustic insulation (rigid polyurethane foam insulation)
- Reliable ventilation
Connection
- Power: 550 Watts
- Electrical connection: 230VV / 1N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 820 mm x 870 mm x 913 mm
Guidelines
- Engine compliant with EU 1253/2014
- Compliance with DIN 18869 - T1 according to VDI 2052
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
Technical data
sizes
| Width | 820mm |
|---|---|
| Depth | 870mm |
| Height | 913mm |
Details
| Air rotation per hour | 4,000 m³ |
|---|---|
| Inlet port diameter | 355mm |
| Temperature of the transported medium | -20°C ~ 120°C |
Connected loads
| power | 550 Watt |
|---|---|
| Tension | 230V |
| Frequency | 50Hz |
| Current | 3.60A |
| Phases | 1N/PE |
Delivery
| Shipping Method | Forwarding agency |
|---|---|
| Delivery Status | Installed |
| Libra | 72kg |
Attachments PDF
