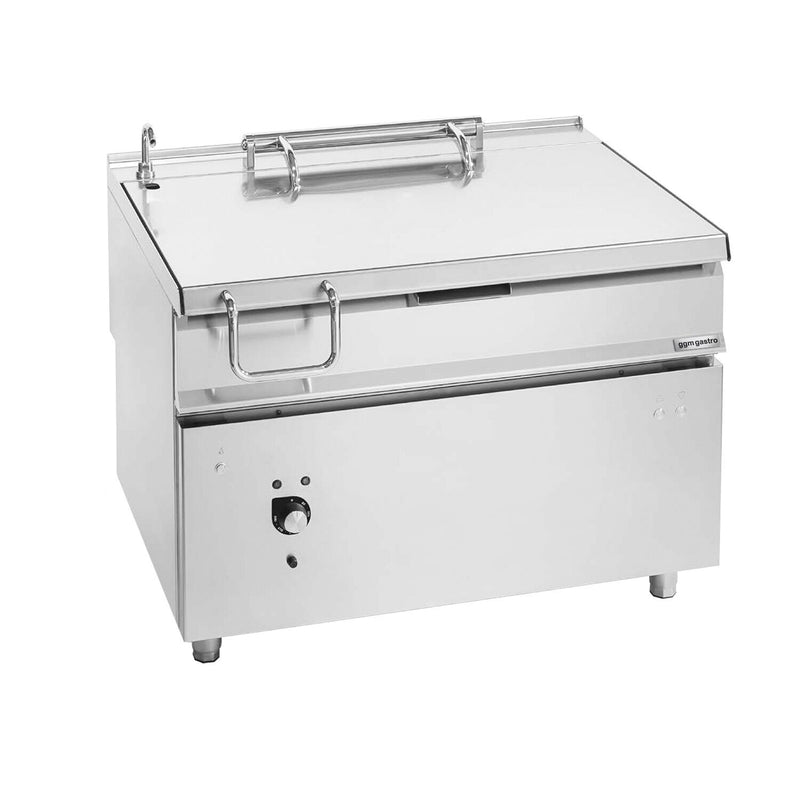

Electric Tilting Frying Pan - 120 Liters - 14.4 kW - with motor
Execution
- Tilting pan for European production
- Design: electrical device
- A great solution for professional use
- Can be combined with other products from the "Paolo 900" series
- Designed as a stationary device
- Self-leveling hinge
- Motorized tilt
- Tilt angle up to 80°
- Table-mounted dispensing tap, neck with particularly high flow rate
- Water tap for filling and rinsing the tank
- Safety thermostat
- Working indicator lights
- Adjustable temperature
- Even heat distribution
- low energy consumption
- Environmentally friendly
- easy to use
- Height adjustable stainless steel legs
Quality
- Rounded inside corners
- Crucible floor welded from outside for better thermal conductivity
- Non-stick coating made of ceramic microspheres
Connection
- Power: 14.40 kW
- Electrical connection: 400V / 3N/PE / 50 Hz
Dimensions
- External dimensions W x D x H: 1,200 mm x 900 mm x 940 mm
Scope of delivery
- The device is supplied without a plug/cable
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Execution
- Tilting pan for European production
- Design: electrical device
- A great solution for professional use
- Can be combined with other products from the "Paolo 900" series
- Designed as a stationary device
- Self-leveling hinge
- Motorized tilt
- Tilt angle up to 80°
- Table-mounted dispensing tap, neck with particularly high flow rate
- Water tap for filling and rinsing the tank
- Safety thermostat
- Working indicator lights
- Adjustable temperature
- Even heat distribution
- low energy consumption
- Environmentally friendly
- easy to use
- Height adjustable stainless steel legs
Quality
- Rounded inside corners
- Crucible floor welded from outside for better thermal conductivity
- Non-stick coating made of ceramic microspheres
Connection
- Power: 14.40 kW
- Electrical connection: 400V / 3N/PE / 50 Hz
Dimensions
- External dimensions W x D x H: 1,200 mm x 900 mm x 940 mm
Scope of delivery
- The device is supplied without a plug/cable
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
Dimensions
Width | 1.200mm |
---|---|
Width | 900mm |
Height | 940mm |
Working height | 900mm |
Pan dimensions
Length | 1.100mm |
---|---|
Width | 590mm |
Height | 225mm |
Details
Filling quantity | 120 l |
---|---|
Temperature | 100°C to 300°C |
Connected loads
Working mode | Electric |
---|---|
efficiency | 14.40kW |
Tension | 400V |
Phases | 3N/PE |
Frequency | 50Hz |
Delivery
Shipment | shipping |
---|---|
Delivery Status | Installed |
Libra | 233kg |
No manuals available
Dimensions
Width | 1.200mm |
---|---|
Width | 900mm |
Height | 940mm |
Working height | 900mm |
Pan dimensions
Length | 1.100mm |
---|---|
Width | 590mm |
Height | 225mm |
Details
Filling quantity | 120 l |
---|---|
Temperature | 100°C to 300°C |
Connected loads
Working mode | Electric |
---|---|
efficiency | 14.40kW |
Tension | 400V |
Phases | 3N/PE |
Frequency | 50Hz |
Delivery
Shipment | shipping |
---|---|
Delivery Status | Installed |
Libra | 233kg |
No manuals available
