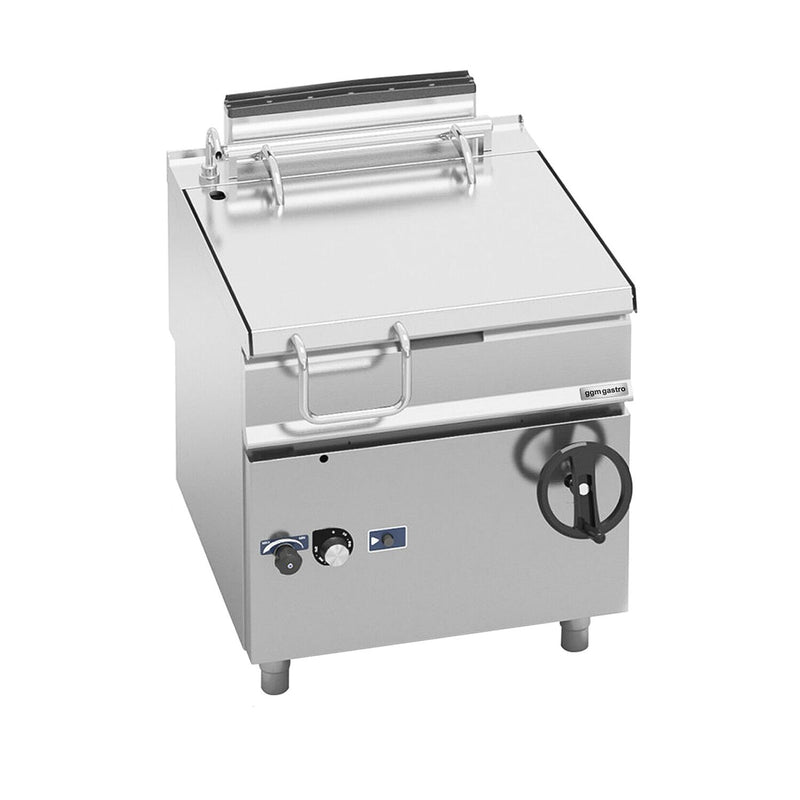

Gas Tilting Frying Pan - 80 Litres - 20 kW - with Manual Knob
Stan: Nowy
Kraj produkcji: Italy
Execution
- Tilting pan for European production
- With engine
- Design: Gas device
- A great solution for professional use
- Can be combined with other products from the "Paolo 900" series
- Designed as a stationary device
- Self-leveling hinge
- Tilt angle up to 80°
- Table-mounted dispensing tap, neck with particularly high flow rate
- Water tap for filling and rinsing the tank
- Safety thermostat
- Working indicator lights
- Adjustable temperature
- Even heat distribution
- Environmentally friendly
- easy to use
- Height adjustable stainless steel legs
Quality
- Housing and cooking tray made of AISI 304 stainless steel
- Rounded inside corners
- Crucible floor welded from outside for better thermal conductivity
- Non-stick coating made of ceramic microspheres
Connection
- Power: 20 kW
- Power supply current: 6 Watts
- Electrical connection: V / 1N/PE phase / 50 Hz
Dimensions
- External dimensions W x D x H: 800 mm x 900 mm x 1,058 mm
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Execution
- Tilting pan for European production
- With engine
- Design: Gas device
- A great solution for professional use
- Can be combined with other products from the "Paolo 900" series
- Designed as a stationary device
- Self-leveling hinge
- Tilt angle up to 80°
- Table-mounted dispensing tap, neck with particularly high flow rate
- Water tap for filling and rinsing the tank
- Safety thermostat
- Working indicator lights
- Adjustable temperature
- Even heat distribution
- Environmentally friendly
- easy to use
- Height adjustable stainless steel legs
Quality
- Housing and cooking tray made of AISI 304 stainless steel
- Rounded inside corners
- Crucible floor welded from outside for better thermal conductivity
- Non-stick coating made of ceramic microspheres
Connection
- Power: 20 kW
- Power supply current: 6 Watts
- Electrical connection: V / 1N/PE phase / 50 Hz
Dimensions
- External dimensions W x D x H: 800 mm x 900 mm x 1,058 mm
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
Dimensions
Width | 800mm |
---|---|
Depth | 900mm |
Height | 1.058mm |
Working height | 900mm |
Pan dimensions
Width | 710mm |
---|---|
Depth | 590mm |
Height | 225mm |
Details
Filling quantity | 80 l |
---|---|
Temperature | 100°C to 300°C |
Connected loads
Working mode | Gas |
---|---|
efficiency | 20kW |
Power supply current | 6 Watt |
Tension | 230V |
Phases | 1N/PE |
Frequency | 50Hz |
Average energy consumption
Kcal/hour | 17196 |
---|---|
Btu/hr | 68242 |
Propane-butane gas ( G30 / G31 ) | 1.71 kg/h |
Natural gas H ( G20 ) | 2.33 m³/h |
Natural gas L ( G25 ) | 2.71 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 171kg |
No manuals available
Dimensions
Width | 800mm |
---|---|
Depth | 900mm |
Height | 1.058mm |
Working height | 900mm |
Pan dimensions
Width | 710mm |
---|---|
Depth | 590mm |
Height | 225mm |
Details
Filling quantity | 80 l |
---|---|
Temperature | 100°C to 300°C |
Connected loads
Working mode | Gas |
---|---|
efficiency | 20kW |
Power supply current | 6 Watt |
Tension | 230V |
Phases | 1N/PE |
Frequency | 50Hz |
Average energy consumption
Kcal/hour | 17196 |
---|---|
Btu/hr | 68242 |
Propane-butane gas ( G30 / G31 ) | 1.71 kg/h |
Natural gas H ( G20 ) | 2.33 m³/h |
Natural gas L ( G25 ) | 2.71 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 171kg |
No manuals available
