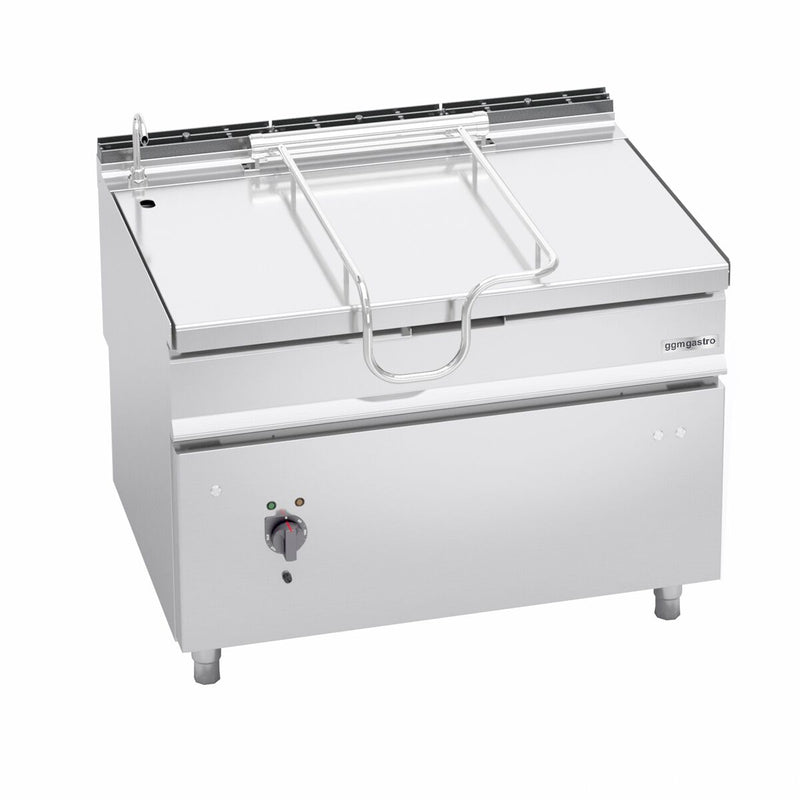

Electric Tilting Frying Pan - 120 Liters - 14.4 kW
Kraj produkcji: Italy
Execution
- Tilting roaster made in Europe
- Type: electrical appliance
- A great solution for professional use
- Can be combined with other products from the "Lorenzo 900" series
- Designed as a stationary device
- Venting of cooking fumes through the integrated flue
- Self-leveling hinge
- Tilt angle up to 80°
- Tap for filling and rinsing the tank
- Safety thermostat
- Working indicator lights
- Adjustable temperature
- Even heat distribution
- low energy consumption
- Environmentally friendly
- easy to use
Quality
- Housing made of high-quality AISI 304 stainless steel
- AISI 316 stainless steel bottom
- Rounded inner corners
- Crucible floor welded from outside for better thermal conductivity
- Non-stick coating made of ceramic microspheres
- Height adjustable stainless steel legs
Connection
- Power: 14.40 kW
- Electrical connection: 400V / 3N/PE / 50 Hz
Dimensions
- External dimensions W x D x H: 1,200 mm x 900 mm x 963 mm
- Actual capacity: 100 l
Scope of delivery
- The device is supplied without a plug/cable
- Dispensing tap
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the directive
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Execution
- Tilting roaster made in Europe
- Type: electrical appliance
- A great solution for professional use
- Can be combined with other products from the "Lorenzo 900" series
- Designed as a stationary device
- Venting of cooking fumes through the integrated flue
- Self-leveling hinge
- Tilt angle up to 80°
- Tap for filling and rinsing the tank
- Safety thermostat
- Working indicator lights
- Adjustable temperature
- Even heat distribution
- low energy consumption
- Environmentally friendly
- easy to use
Quality
- Housing made of high-quality AISI 304 stainless steel
- AISI 316 stainless steel bottom
- Rounded inner corners
- Crucible floor welded from outside for better thermal conductivity
- Non-stick coating made of ceramic microspheres
- Height adjustable stainless steel legs
Connection
- Power: 14.40 kW
- Electrical connection: 400V / 3N/PE / 50 Hz
Dimensions
- External dimensions W x D x H: 1,200 mm x 900 mm x 963 mm
- Actual capacity: 100 l
Scope of delivery
- The device is supplied without a plug/cable
- Dispensing tap
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the directive
- Material compliant with European food standards
Dimensions
Width | 1.200mm |
---|---|
Width | 900mm |
Height | 963mm |
Pan dimensions
Length | 1.100mm |
---|---|
Width | 560mm |
Height | 225mm |
Details
Filling quantity | 100 liters |
---|---|
Temperature | 100°C to 300°C |
Connected loads
Connection | Electric |
---|---|
Power | 14.40kW |
Tension | 400V / 3N/PE |
Frequency | 50Hz |
Delivery
Shipment | shipping |
---|---|
Delivery Status | Installed |
Libra | 205kg |
