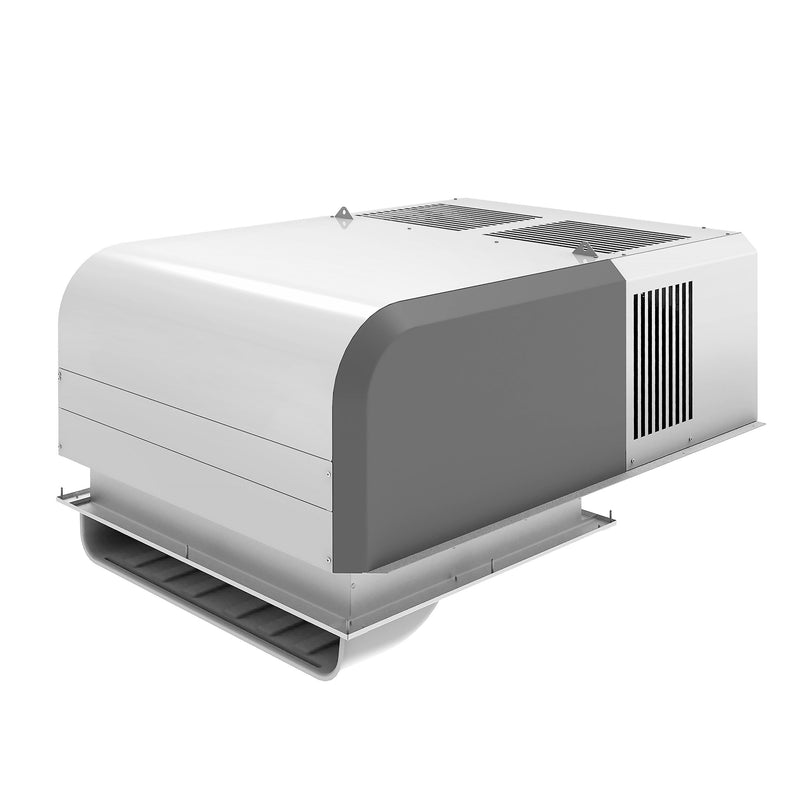

Ceiling-mounted freezing unit - maximum 20.5 m³

ENERGY SAVER

• Completely revised and optimized BEST chiller , improving the COP (Efficiency) value of the unit

• Particularly environmentally friendly: -44% emissions compared to other devices

• 15% energy savings by increasing maximum cooling capacity through the use of high-performance compressors

• New EC fan motors provide optimal airflow, are quiet and lead to energy savings

• New HACCP readiness function: Cell temperature is monitored and regulated in 15 min intervals, recorded and stored. This creates guaranteed optimum food freshness

• The digital control with LED display and newly developed software guarantee maximum efficiency, reliability and flexibility in maintaining the cell temperature and ensure stable operating conditions at all times

Characteristics

• Ceiling mounted freezing unit

• High quality product made in Europe

• Hermetic compressor with thermal winding protection

• Heat exchanger with copper tubes and aluminum fins

• Condensate drains directly to the condensate evaporation tray

• Heated container for evaporating condensed water

• The standard expansion valve allows for proper refrigerant injection into the evaporator over a wide range of operating conditions, ensuring high energy efficiency

• Operating conditions: 5 °C to 43 °C

• Door contact switch with 2.50 m cable

• LED lighting with 5 m cable

• Modbus connection with 5m cable

• High-pressure side safety pressure switch with high and low pressure probes

• Thermostatic expansion valve (TEV)

• IP 20 protection class

Quality

• Energy savings with thermostatic expansion valves, pressure transducers and EC fan motors

• Self-supporting housing made of galvanized stainless steel Sheet metal, Powder coated

• Compact & Durable Design

• Precise dimensional accuracy & high stability

• The structure and housing have been designed to facilitate servicing

• The sheet metal panels can be dismantled very quickly and easily, and access to the refrigeration circuit components is very easy

Insulation

• In accordance with EU regulations (Halon Directives)

• Particular energy savings thanks to the best insulation

• Top-class insulation values ​​thanks to polyurethane

• The units are designed for installation on insulating panels with a maximum thickness of 200 PUR.

Cooling

• On/Off switch

• Temperature: -10 °C to -25 °C

• Maximum room volume: 20.50 m³

• Refrigerant: R290 / 150 g

• Programmable Auto Defrost: Interval, Real Time, Request

• Air cooled capacitor

• Low Noise Air Cooled Capacitors

• Constant high-power cooling

Electronic control

• Electronic control, if necessary can be parameterized according to customer specifications

• Bluetooth connection

• Control via APP (remote control): all operating parameters are displayed in real time on your smartphone with just one click.

• LED display and backlit keyboard

Connection

• Compressor power: 1.23 kW

• Electrical connection: V / 3N/PE phase / 50 Hz

• Supplied with CEE plug and 2.50 m cable length

Sizes

• External dimensions W x D x H: 810 mm x 1,275 mm x 441 mm

Scope of delivery

• including contact switch

• including internal lighting for the cooling chamber

• Delivery without cooling chamber

Attention

• A socket with an appropriate fuse must be provided on site!

• The customer must ensure sufficient ventilation of the installation site. Distances between the unit and ceilings/walls at the installation site min. 400 mm

• The use of an additional safety device is not required according to EN378-1 as the refrigerant charge quantity per refrigeration circuit is less than 150 g. The device must be included in the on-site risk assessment.

• The cooling chamber must be ordered separately

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• Material compliant with European food standards

Optional accessories:

• KC series cooling chamber
