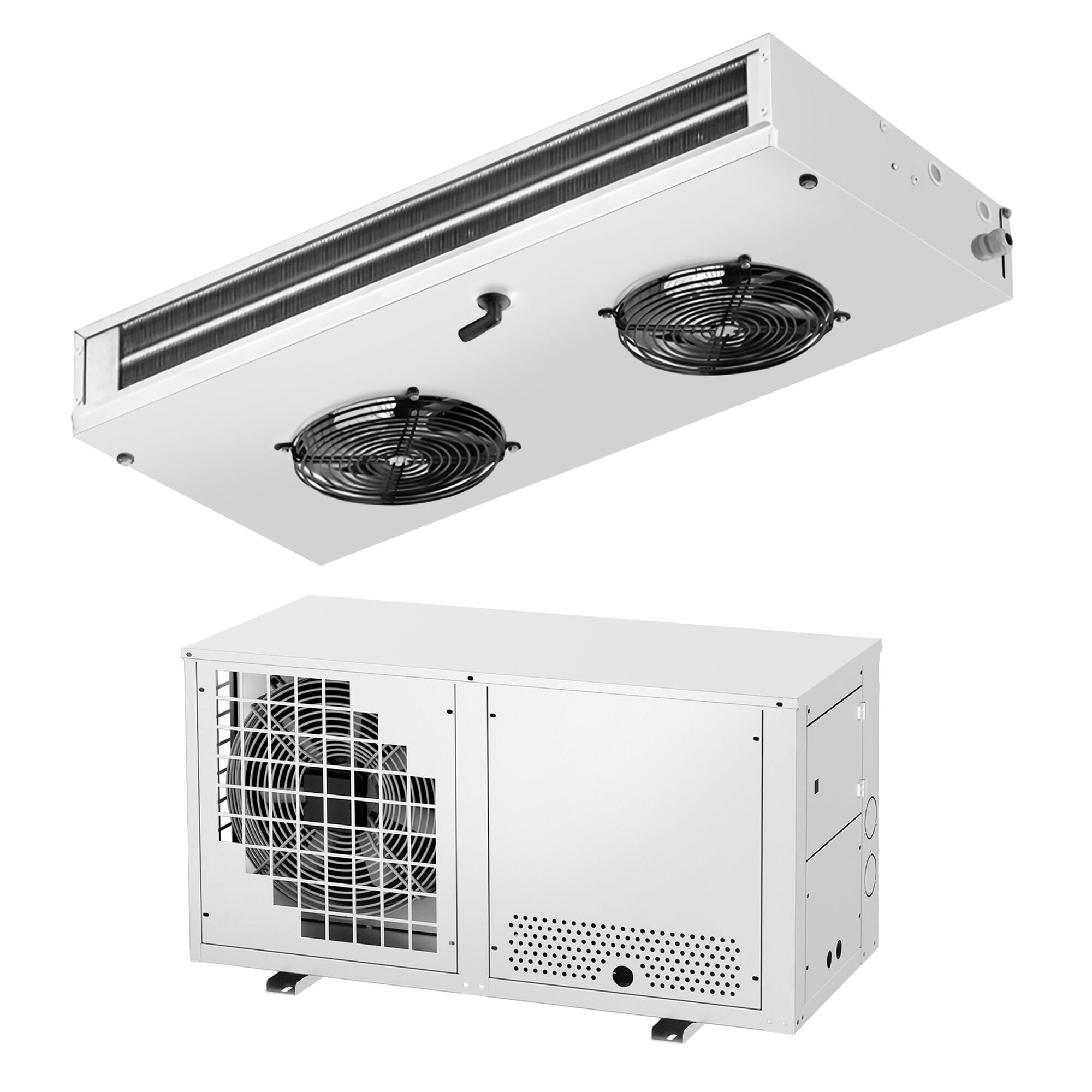

Split type freezing unit - for max. 20 m³ - IP 51 protection class

Characteristics

• Split-type freezing unit

• IP 51 protection class

• condensation water drain

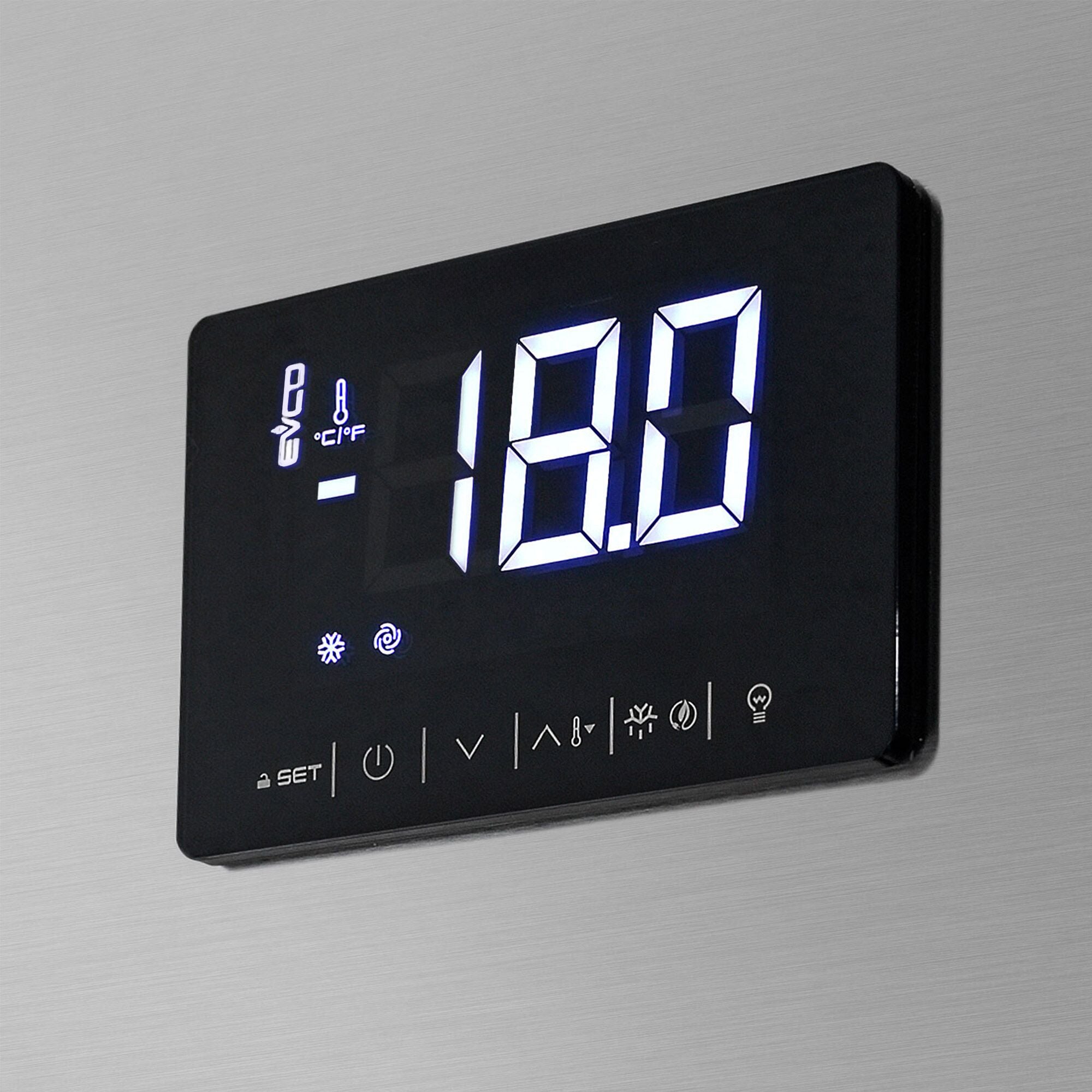

• Electronic control unit with EVCO display

• Expansion with expansion valve

• Digital thermostat

• Easy installation

• Connecting the condensate drain

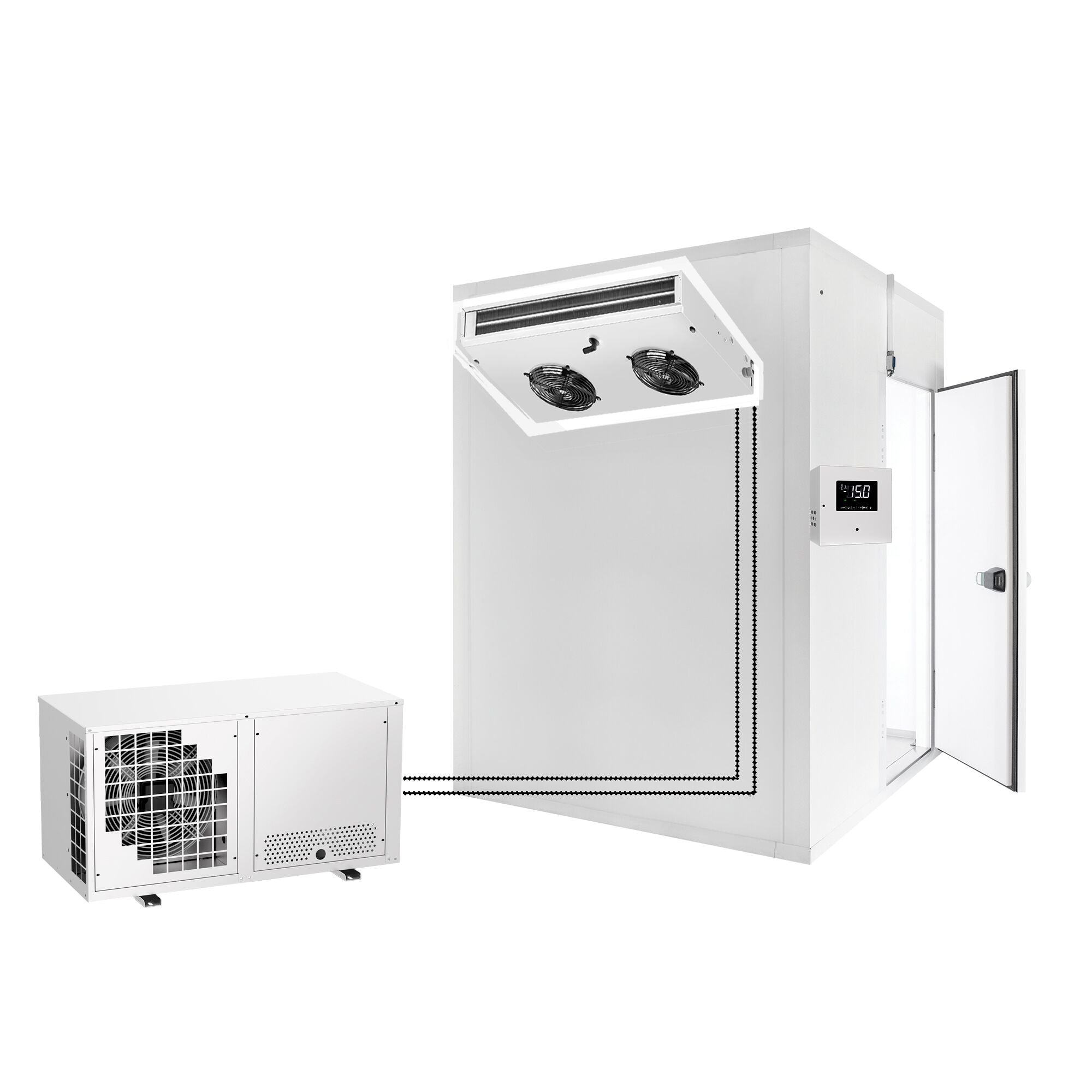

• Separate design of the evaporator and condenser allows heat and noise to be dissipated outside

Quality

• Self-supporting housing (galvanized sheet metal with powder coating)

• Heat exchanger with copper tubes and aluminum fins

• Hermetic compressor with thermal winding protection

• Long service life

• Particularly hygienic thanks to easy cleaning

Cooling

• With refrigerant

• Temperature range: -10 °C to -22 °C

• Ambient temperature up to: 38°C

• Maximum room volume: 20 m³

• Refrigerant: R452a / 1,000 g

• Constant high-power cooling

• Automatic defrosting with programmable controllers

Connection

• Compressor power: 497 Watts

• Electrical connection: V / 3N/PE phase / 50 Hz

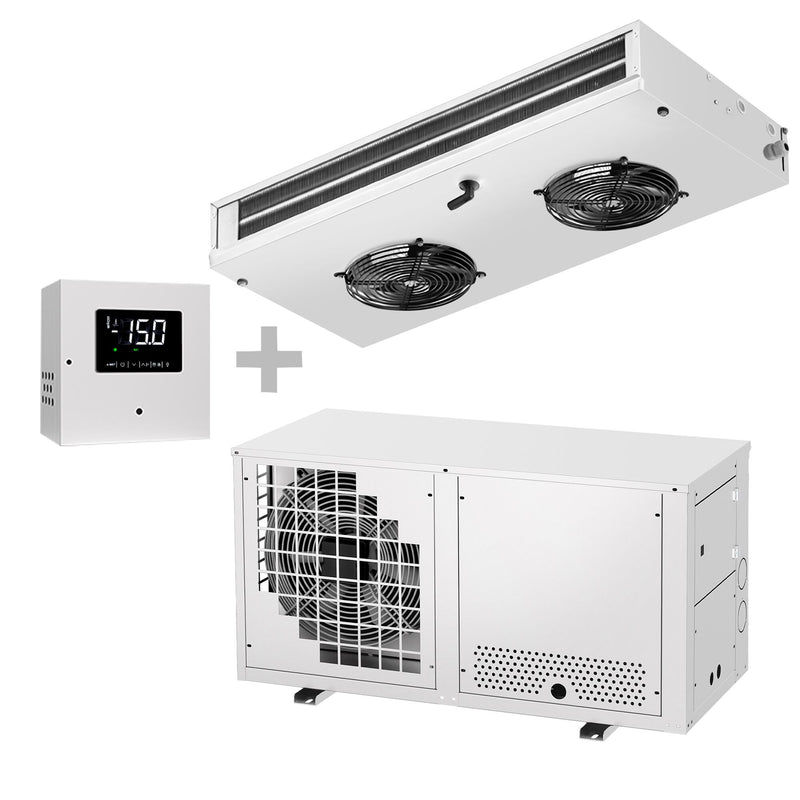

Scope of delivery

• Vaporizer

• Capacitor Device

• Electronic control

• Copper pipe 5 m

Sizes

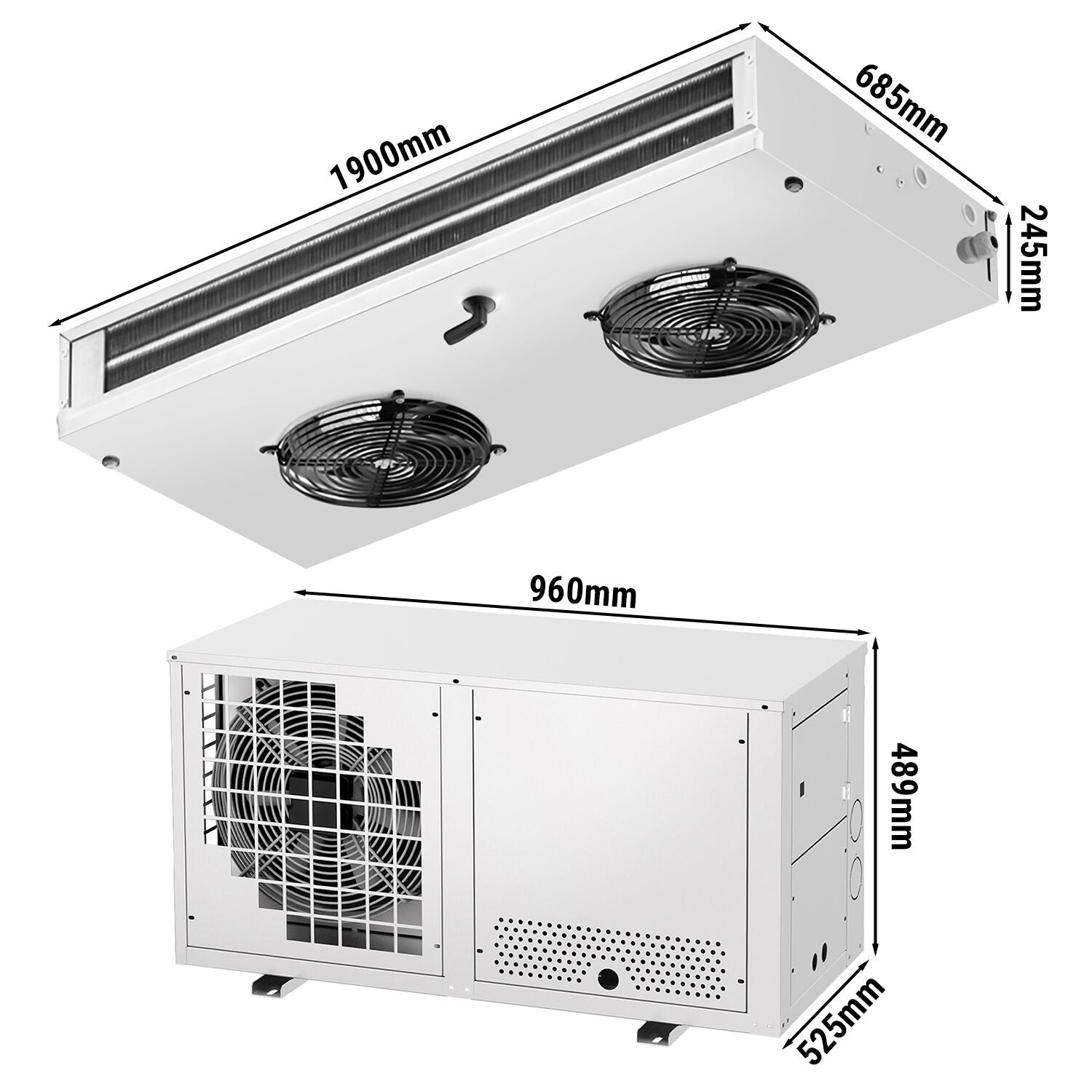

• External size width : 1,900 mm

Attention

• Despite the IP 51 protection rating, we recommend a canopy for outdoor installation.

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• Material compliant with European food standards
