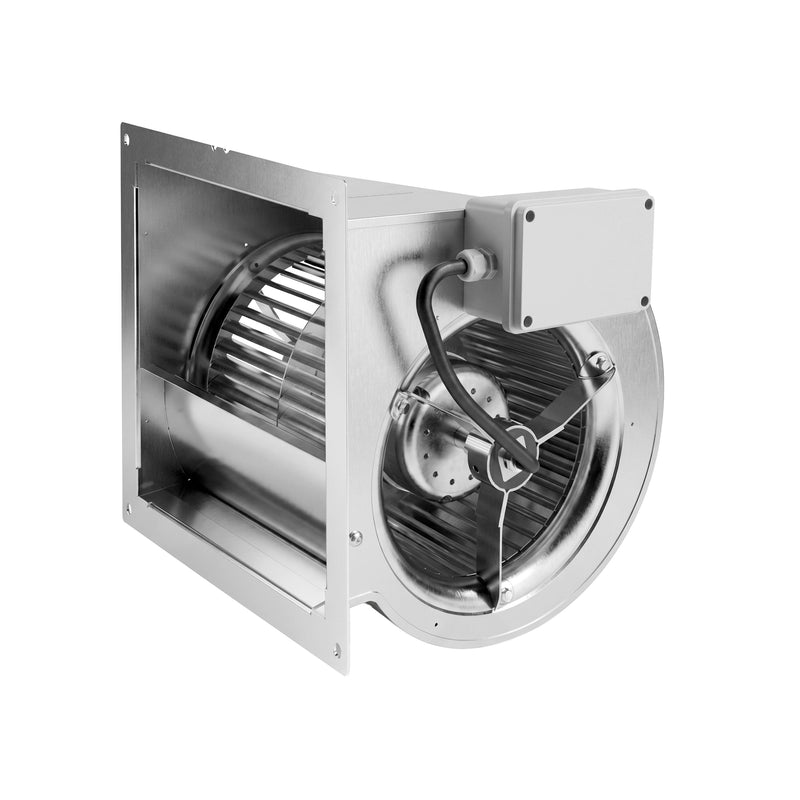

Centrifugal fan - 1300 m³/h - for wall hoods
Stan: Nowy
Kraj produkcji: Italy
Free Shipping
Sz.320mm Gł.318mm Wys.342mm
DAIN 7/7 XPL MTR 4P 147 W 1V IP 55 + GR +FL
Temporarily unavailable
Free Shipping
Description
Characteristics
- Built-in motors for wall hoods
- Best performance 1300 m³
- Temperature: from -20 °C to +40 °C
- Low energy consumption
- Self-adjusting grease nozzle
- Without speed regulator and feet!
- The machine requires virtually no maintenance
- Easy to clean
- Easy installation
High quality
- Galvanized steel radial fan
- Fan impeller made of galvanized steel
Connection
- Power: 147W
- Electrical connection: 230 V / 1 phase / 50 Hz
Dimensions
- External dimensions W x D x H: 320 x 318 x 342 mm
Compliance with standards
- Compliant with EU 327/2011
- ErP Guidelines 2015
- Manufactured in accordance with appropriate hygiene and safety standards
- CE marking as proof of compliance with EU standards
- The material complies with European food standards
* nie obejmuje produktów outletowych
Accessories
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- Built-in motors for wall hoods
- Best performance 1300 m³
- Temperature: from -20 °C to +40 °C
- Low energy consumption
- Self-adjusting grease nozzle
- Without speed regulator and feet!
- The machine requires virtually no maintenance
- Easy to clean
- Easy installation
High quality
- Galvanized steel radial fan
- Fan impeller made of galvanized steel
Connection
- Power: 147W
- Electrical connection: 230 V / 1 phase / 50 Hz
Dimensions
- External dimensions W x D x H: 320 x 318 x 342 mm
Compliance with standards
- Compliant with EU 327/2011
- ErP Guidelines 2015
- Manufactured in accordance with appropriate hygiene and safety standards
- CE marking as proof of compliance with EU standards
- The material complies with European food standards
Dimensions
| Length | 320mm |
|---|---|
| Width | 318mm |
| Height | 342mm |
Drawing dimensions
| AND | 320mm |
|---|---|
| B | 340mm |
| C | 250mm |
| D | 280mm |
| E | 45mm |
| F | 230mm |
| G | 210mm |
| H | 186mm |
Details
| Speed control | Governor |
|---|---|
| Air release dimensions | 200mm |
| Air flow per hour | 1300 m³/h |
| Temperature | -20°C to +40°C |
Connection parameters
| Power | 147W |
|---|---|
| Tension | 230V |
| Frequency | 50Hz |
| Current | 1.5 amps |
| Phases | 1 |
Delivery
| Shipment | package |
|---|---|
| Delivery Status | mounted |
| Mass | 9kg |
