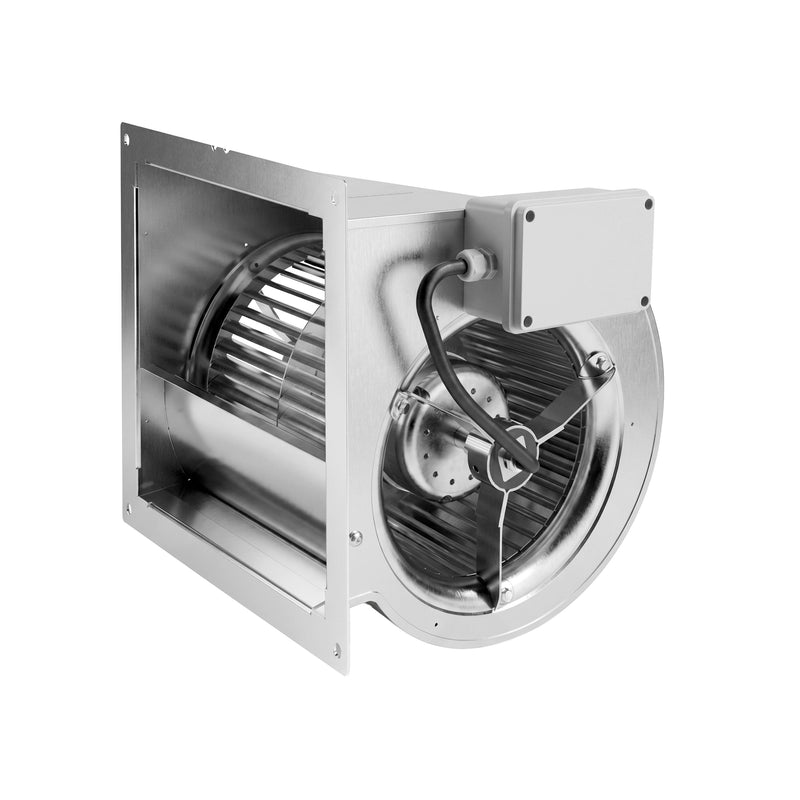

Centrifugal fan - 2200 m³/h - for wall hoods
Stan: Nowy
Kraj produkcji: Italy
Free Shipping
Sz.376mm Gł.320mm Wys.348mm
DARE 9/9R XPL 2031004 1F 4P 1V + GR +FL
I18n Error: Missing interpolation value "from" for "På lager: {{ from }} - {{ to }} Dage"
Free Shipping
Description
Characteristics
- Built-in motor for wall hoods
- Top power 2,200 m³
- Temperature: -20°C ~ 40°C
- Low energy consumption
- Self-adjusting grease nozzle
- Without speed controller and feet!
- The machine is virtually maintenance-free
- Easy to clean
- Easy installation
Quality
- Centrifugal fan made of galvanized steel
- Galvanized Steel Fan Wheel
Connection
- Power: 420 Watts
- Electrical connection: 230VV / 1N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 320 mm x 337 mm x 347 mm
Guidelines
- Compliant with EU 327/2011
- ErP Directive 2015
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
* nie obejmuje produktów outletowych
Accessories
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- Built-in motor for wall hoods
- Top power 2,200 m³
- Temperature: -20°C ~ 40°C
- Low energy consumption
- Self-adjusting grease nozzle
- Without speed controller and feet!
- The machine is virtually maintenance-free
- Easy to clean
- Easy installation
Quality
- Centrifugal fan made of galvanized steel
- Galvanized Steel Fan Wheel
Connection
- Power: 420 Watts
- Electrical connection: 230VV / 1N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 320 mm x 337 mm x 347 mm
Guidelines
- Compliant with EU 327/2011
- ErP Directive 2015
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
sizes
| Width | 320mm |
|---|---|
| Depth | 337mm |
| Height | 347mm |
Details
| Distance between holes | 315mm |
|---|---|
| Speed control | Speed governor |
| air release sizes | 261mm |
| Air rotation per hour | 2,200 m³ |
| Temperature | -20°C to 40°C |
Connected loads
| power | 420 Watt |
|---|---|
| Tension | 230V |
| Frequency | 50Hz |
| Current | 3.80A |
| Phases | 1N/PE |
Delivery
| Shipment | Package |
|---|---|
| Delivery Status | mounted |
| Libra | 15kg |
sizes
| Width | 320mm |
|---|---|
| Depth | 337mm |
| Height | 347mm |
Details
| Distance between holes | 315mm |
|---|---|
| Speed control | Speed governor |
| air release sizes | 261mm |
| Air rotation per hour | 2,200 m³ |
| Temperature | -20°C to 40°C |
Connected loads
| power | 420 Watt |
|---|---|
| Tension | 230V |
| Frequency | 50Hz |
| Current | 3.80A |
| Phases | 1N/PE |
Delivery
| Shipment | Package |
|---|---|
| Delivery Status | mounted |
| Libra | 15kg |
