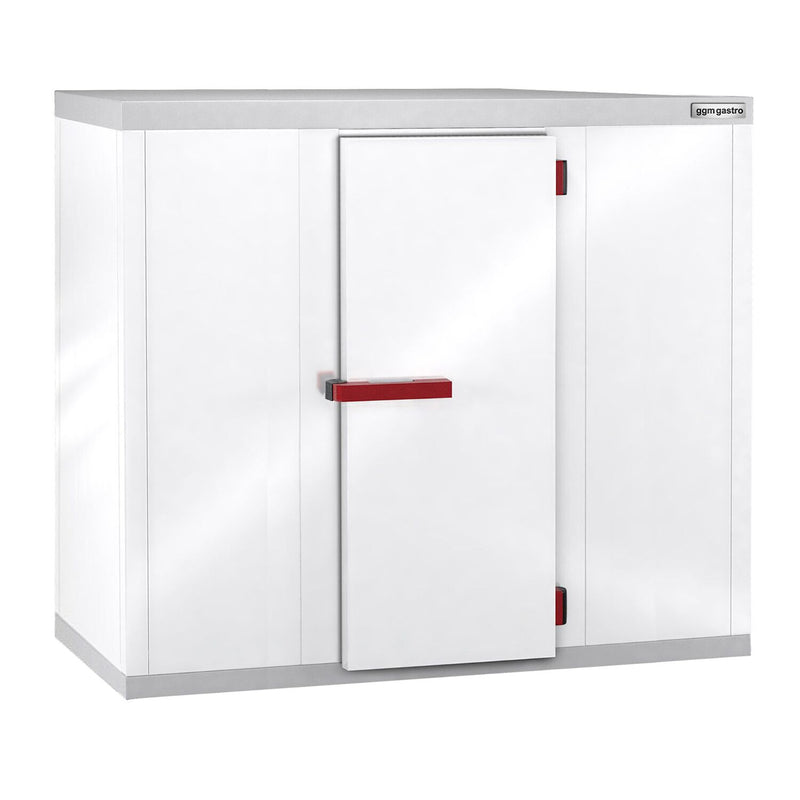

Freezing chamber - 1600x1600mm - 3.82m³

Design

• Top-class freezing chamber

• Avoiding high negative pressure inside the cell

• Perfect for storing supplies

• Particularly hygienic thanks to easy cleaning

• Long service life (usually 15 years and more)

• Possibility of extension without any problems

Quality

• High quality product made in Europe

• Precise dimensional accuracy & high stability

• Very strong and durable

• Compact & Durable Design

Sizes

• External dimensions W x D x H: 1,600 mm x 1,600 mm x 2,190 mm

• Room content: 3.82 m³

Wall-mounted construction

• Easy installation

• Lots of space despite its compact design

• Interior with built-in emergency opening

• Foam pullers for force-connecting elements

• Corrosion-resistant fasteners ensure stability and tightness of the connection

• Connection of elements via a self-centering sealing system

Chamber floor

• Floor ventilation

• Pressure equalization valve

• Glass fiber reinforced plastic

• On a waterproof glued multiplex board

• Base with embossed surface for maximum grip

• Floor with patented anti-slip coating (anti-slip class R11)

• High floor load-bearing capacity thanks to multi-glued pressure-distributing plates

Insulation

• Particular energy savings thanks to the best insulation

• Wall thickness 100 mm PUR (HFC and CFC free)

Surface

• Galvanized steel sheet with zinc-aluminum coating

• Color: White, RAL9.002

• All elements are additionally equipped with a protective film

• The protective film can be removed after installation

Door Features

• Hinged doors

• Jumbo Clasp

• Door threshold made of stainless steel

• Surface mounted and lockable

• Special plastic with high impact resistance

• Interior with built-in emergency opening

• Door sealing profiles guarantee the most effective sealing

• Door and door frame profiles made of special plastic

• Preventing icing of doors and door frames

• Left or right door hinge to choose from. Please specify when ordering!

• Door position centered on longest side as standard. Must be specified when ordering!

Attention

• Winter equipment for outdoor use available at extra charge.

• Special sizes available - please ask when ordering - special sizes are non-returnable!

• Any special requests, such as door hinges or winter equipment, must be included in the comments field when ordering. Later changes are not possible!

• Delivery without cooling unit

• Interior lighting is not included with the freezer compartment - interior lighting is included with the refrigeration unit.

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• In accordance with EU regulations (Halon Directives)

• Material compliant with European food standards

Optional accessories:

• Shelves

• Interior lighting

• Refrigeration unit

• Lamella curtain for cooling
