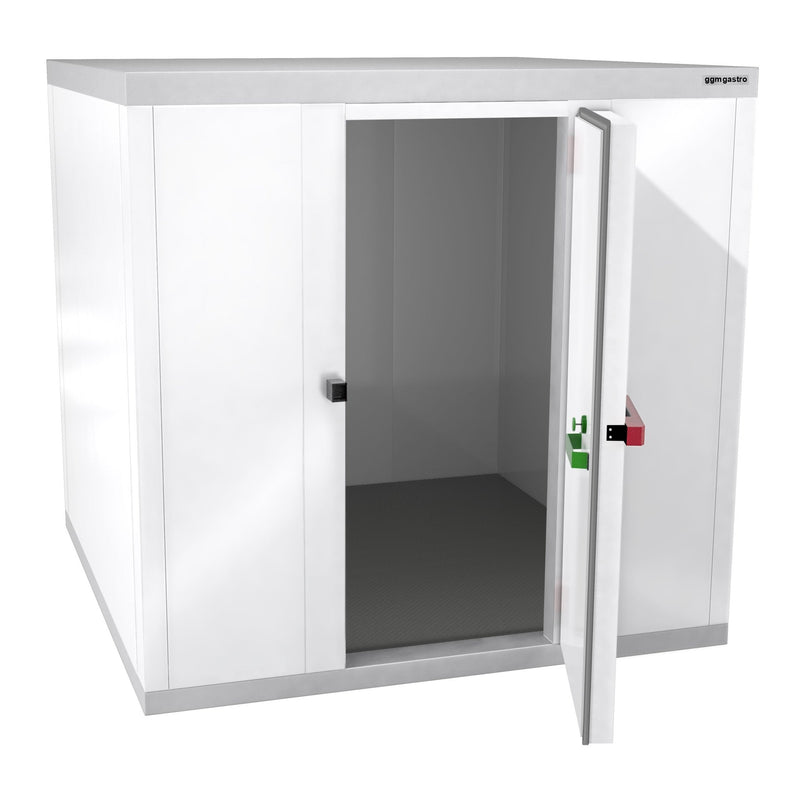

Freezing chamber - 1.25 x 1.60 m - height: 2.19 m - 2.87 m³

Characteristics

• Top-class freezing cabin
• Avoiding high negative pressure inside the cabin
• Optimal for maintaining stock
• Extremely hygienic thanks to easy cleaning
• Long service life (usually 15 years or more)
• Trouble-free subsequent disassembly or modification

High quality

• High quality product made in Europe
• Dimensional accuracy and high stability
• Very strong and durable
• Compact and durable design

Dimensions

• External dimensions H x D x H: 1250 x 1600 x 2190 mm
• Volume: 2.87 m³

Wall superstructure

• Easy installation
• Lots of space despite its compact design
• Inner compartment with integrated emergency opener
• Foamed fasteners for strong connection of elements
• Anti-corrosion coated turnbuckles ensure stability and tightness of the gaps
• Connection of elements via a self-centering sealing system

Cell substrate

• Lower floor ventilation
• Pressure equalization valve
• Glass fiber reinforced plastic
• On waterproof glued multiplex boards
• Embossed backing for maximum grip
• Floor with patented anti-slip coating (anti-slip safety class R11)
• High load-bearing capacity of the bottom thanks to the multiple, continuous connections of the pressure distribution plates

Insulation

• Extremely energy efficient thanks to the highest quality insulation
• Wall thickness 100mm NO CFCs (HFKW AND FCKW)

Surface

• Galvanized steel sheet with zinc-aluminum coating
• Color: white, RAL 9002
• All elements are additionally equipped with a protective film
• The protective film can be removed after installation

Characteristic features of doors

• Swing doors
• Jumbo gasket
• Stainless steel door threshold
• Possibility of placement and closure
• Special impact-resistant plastic
• Inner compartment with integrated emergency opener
• Door sealing profiles ensure the highest level of tightness
• Door profiles and door frames made of special plastic
• Avoiding icing of doors and door frames
• Door stop left or right. Please specify when ordering!
• Door position is standard central on the long side. Please specify when ordering!

Tips

• Winter equipment for outdoor use available at extra charge.
• Possibility of ordering special dimensions - Please ask when ordering! - Return of special dimensions is excluded!
• For special requests such as door stops or winter equipment, please tick the appropriate box when ordering. Later changes will not be possible!
• Delivery without cooling unit
• The interior lighting is not included in the freezer delivery - if you purchase a refrigeration unit, it includes the interior lighting

Compliance with standards

• Manufactured in accordance with appropriate hygiene and safety standards
• CE marking as proof of compliance with EU standards
• In accordance with EU regulations (Halon Directives)
• The material complies with European food standards

OPTIONAL ACCESSORIES

• Shelves
• Interior lighting
• Refrigeration unit
• Anti-freeze lamella
