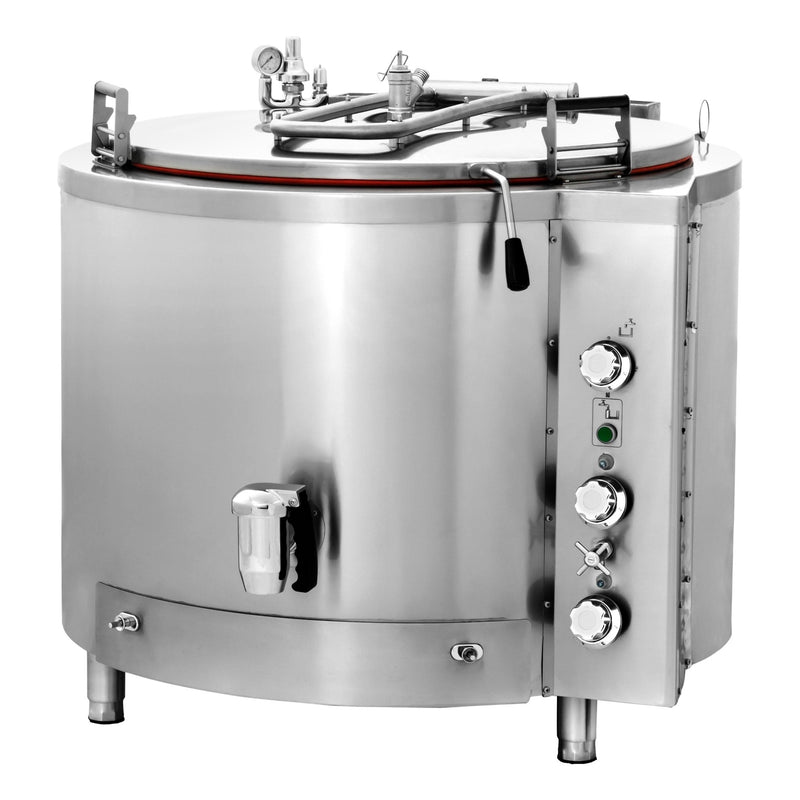

Gas Boiling Kettle - 300 Liters - 40 kW - Indirect Heating
Stan: Nowy
Kraj produkcji: Türkiye
Characteristics
- Desktop version
- European-made boiling kettle
- A great solution for professional use
- Indirect heating
- Double-walled
- Power regulator
- Working indicator lights
- Spring loaded cover
- Fireplace with splash guard
- Pressure gauge for pressure control
- Water valve and outlet for filling and rinsing the container
- easy to use
- Easy to clean
Quality
- Housing made of high-quality AISI 304 stainless steel
- AISI 304 stainless steel boiler
- Stainless steel tubular burner
- Drain tap made of chrome-plated brass
- Height adjustable stainless steel legs
Connection
- Natural gas as standard , the device can optionally be adapted to run on propane.
- Power: 40 kW
Sizes
- Filling quantity 300 l
- Boiler dimensions W x D: 900 mm x 530 mm mm
- External dimensions (WxDxH): 1,100 mm x 1,100 mm x 912 mm
Scope of delivery
- Cold and hot water valve
- Delivery with nozzles for natural gas and propane-butane gas
Guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
- Natural production in line with hygiene and safety guidelines
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- Desktop version
- European-made boiling kettle
- A great solution for professional use
- Indirect heating
- Double-walled
- Power regulator
- Working indicator lights
- Spring loaded cover
- Fireplace with splash guard
- Pressure gauge for pressure control
- Water valve and outlet for filling and rinsing the container
- easy to use
- Easy to clean
Quality
- Housing made of high-quality AISI 304 stainless steel
- AISI 304 stainless steel boiler
- Stainless steel tubular burner
- Drain tap made of chrome-plated brass
- Height adjustable stainless steel legs
Connection
- Natural gas as standard , the device can optionally be adapted to run on propane.
- Power: 40 kW
Sizes
- Filling quantity 300 l
- Boiler dimensions W x D: 900 mm x 530 mm mm
- External dimensions (WxDxH): 1,100 mm x 1,100 mm x 912 mm
Scope of delivery
- Cold and hot water valve
- Delivery with nozzles for natural gas and propane-butane gas
Guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
- Natural production in line with hygiene and safety guidelines
sizes
Width | 1.100mm |
---|---|
Depth | 1.100mm |
Height | 912mm |
boiler dimensions
Diameter | 900mm |
---|---|
Depth | 530mm |
Details
Filling quantity | 300 liters |
---|---|
Cold water connection | 3/4 Zoll |
Hot water connection | 3/4 Zoll |
Connected loads
Connection | gas |
---|---|
Gas connection | 3/4 Zoll |
power | 40kW |
Average energy consumption
Kcal/hour | 34400 |
---|---|
Btu/hr | 136480 |
Propane gas (G30 / G31) | 3.15 kg/h |
Propane gas (G30) | 3.15 kg/h |
Natural gas H ( G20 ) | 4.23 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 199kg |
sizes
Width | 1.100mm |
---|---|
Depth | 1.100mm |
Height | 912mm |
boiler dimensions
Diameter | 900mm |
---|---|
Depth | 530mm |
Details
Filling quantity | 300 liters |
---|---|
Cold water connection | 3/4 Zoll |
Hot water connection | 3/4 Zoll |
Connected loads
Connection | gas |
---|---|
Gas connection | 3/4 Zoll |
power | 40kW |
Average energy consumption
Kcal/hour | 34400 |
---|---|
Btu/hr | 136480 |
Propane gas (G30 / G31) | 3.15 kg/h |
Propane gas (G30) | 3.15 kg/h |
Natural gas H ( G20 ) | 4.23 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 199kg |
