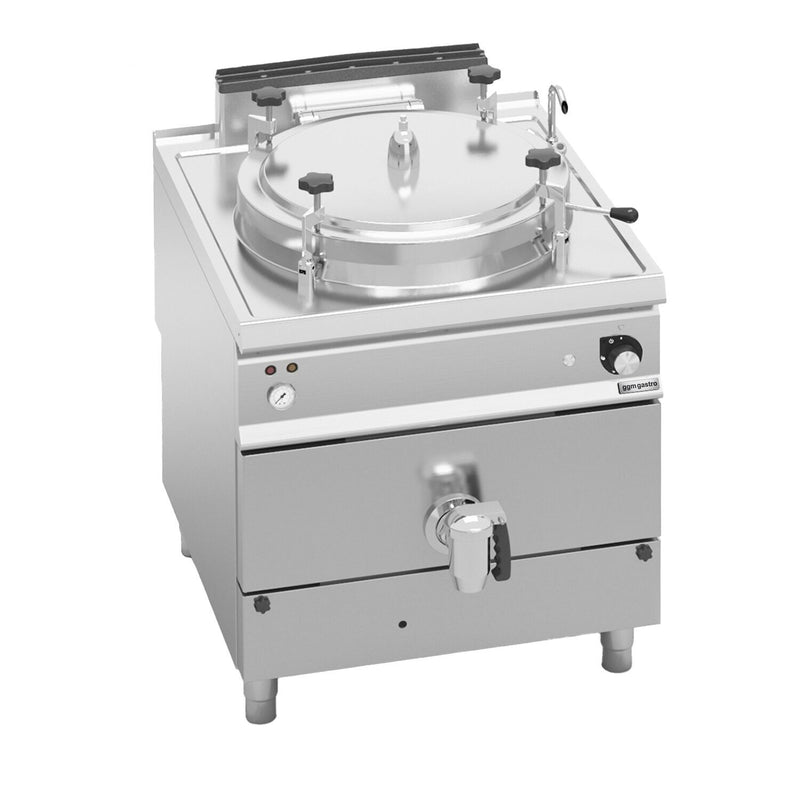

Gas boiling kettle - 150 liters - Indirect heating - 20.9 kW
Kraj produkcji: Italy
Design
- European-made boiling kettle
- The perfect solution for professional use
- Can be combined with other products from the series: Paolo 900
- Capacity: 150 l
- With hot and cold water valves
- With 4 manually adjustable, screw-on mounting elements
- Indirect heating
- Adjustable three-position switch
- Heating with low-pressure steam 0.5 bar
- With safety thermostat
Quality
- Housing made of high quality AISI 304 stainless steel
- Base made of AISI 304 stainless steel
- Heating element made of Incoloy steel
- Drain tap made of chrome-plated brass
Connection
- Gas power: 20.90 kW
- Power supply current: 30 Watts
- Electrical connection: V / 1N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 800 mm x 900 mm x 1,114 mm
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Design
- European-made boiling kettle
- The perfect solution for professional use
- Can be combined with other products from the series: Paolo 900
- Capacity: 150 l
- With hot and cold water valves
- With 4 manually adjustable, screw-on mounting elements
- Indirect heating
- Adjustable three-position switch
- Heating with low-pressure steam 0.5 bar
- With safety thermostat
Quality
- Housing made of high quality AISI 304 stainless steel
- Base made of AISI 304 stainless steel
- Heating element made of Incoloy steel
- Drain tap made of chrome-plated brass
Connection
- Gas power: 20.90 kW
- Power supply current: 30 Watts
- Electrical connection: V / 1N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 800 mm x 900 mm x 1,114 mm
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
sizes
Width | 800mm |
---|---|
Depth | 900mm |
Height | 1.114mm |
Working height | 900mm |
Details
Capacity | 150 l |
---|---|
Floor thickness | 20/10 |
Wall thickness | 15/10 |
Drainage device | 2 inches |
Connected loads
Working mode | Gas |
---|---|
power | 20.90kW |
Power supply current | 30 Watt |
Tension | 220 - 240 Volt |
Phase(s) | 1N/PE |
Frequency | 50Hz |
Average energy consumption
Kcal/hour | 17974 |
---|---|
Btu/hr | 71311 |
Propane-butane gas ( G30 / G31 ) | 1.64 kg/h |
Natural gas H ( G20 ) | 2.22 m³/h |
Natural gas L ( G25 ) | 2.58 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 144 kg |
