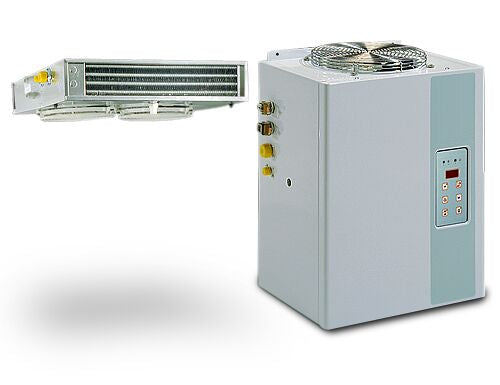

Split-type freezing unit - maximum 3.0 m³

Characteristics

• IP 23 protection class

• With lighting

• condensation water drain

• Connecting the condensate drain

• Electronic control

• Outside

• With heating

• Connection for pre-filled refrigerant lines

• Door contact switch

• Self-supporting housing (galvanized sheet metal with powder coating)

• Hermetic compressor with thermal winding protection

• Heat exchanger with copper tubes and aluminum fins

• Particularly hygienic thanks to easy cleaning

Quality

• Long service life

• Top class split unit

• Precise dimensional accuracy & high stability

• Compact refrigeration unit as a split device

• High quality product made in Europe

Insulation

• In accordance with EU regulations (Halon Directives)

• Particular energy savings thanks to the best insulation

• Top-class insulation values ​​thanks to polyurethane

Cooling

• With refrigerant

• Temperature: -15°C ~ -25°C

• Maximum room volume: 3 m³

• Refrigerant: R452a / 900g

• Air-cooled capacitors

• Ambient temperatures up to +43 °C

• Constant high-power cooling

• Automatic defrosting with programmable controllers

Connection

• Compressor power: 602 Watts

• Electrical connection: 230V / 50 Hz

• Supplied with CEE plug

Sizes

• External dimensions of the unit W x D x H: 400mm x 320mm x 720mm

• External dimensions of the evaporator WxDxH: 656 mm x 433 mm x 188 mm

Scope of delivery

• Including Contact Switch

• including internal lighting for the cooling chamber

• Unit and evaporator

• 5 m Pipeline

• Refrigerant

• Delivery without cooling chamber

Attention

• The cooling chamber must be ordered separately

• Outdoor winter equipment available at extra charge

Guidelines

• Natural production in line with hygiene and safety guidelines

• In accordance with CE regulations ISO 9001 (international TÜV certificate)

• Material compliant with European food standards

Optional accessories:

• TC series cooling chamber
