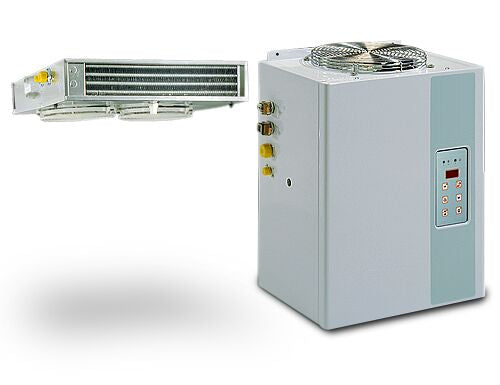

Split cooling unit - maximum 16.4 m³

Design

• IP 23 protection class

• With lighting

• condensation water drain

• Electronic control

• Capillary tube extension

• Connection for pre-filled refrigerant lines

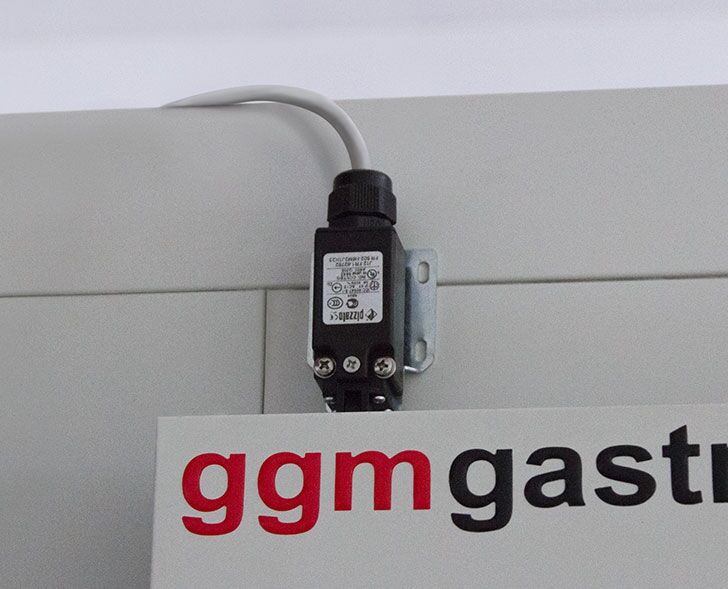

• Door contact switch

• Self-supporting housing (galvanized sheet metal with powder coating)

• Hermetic compressor with thermal winding protection

• Heat exchanger with copper tubes and aluminum fins

• Particularly hygienic thanks to easy cleaning

Quality

• Long service life

• Top class split unit

• Precise dimensional accuracy & high stability

• Compact refrigeration unit as a split device

• High quality product made in Europe

Insulation

• In accordance with EU regulations (Halon Directives)

• Particular energy savings thanks to the best insulation

• Top-class insulation values ​​thanks to polyurethane

Cooling

• With refrigerant

• Temperature: -5°C ~ 8°C

• Maximum room volume: 16.40 m³

• Refrigerant: R452a / 1,280 g

• Air-cooled capacitors

• Ambient temperatures up to +43 °C

• Constant high-power cooling

• Automatic defrosting with programmable controllers

Connection

• Compressor power: 1,200 Watts

• Electrical connection: 230V / 50 Hz

• Supplied with CEE plug

Sizes

• External dimensions of the unit W x D x H: 650mm x 390mm x 840mm

• Evaporator external dimensions WxDxH: 1,106 mm x 433 mm x 188 mm

Scope of delivery

• Including Contact Switch

• including internal lighting for the cooling chamber

• Delivery without cooling chamber

Attention

• The cooling chamber must be ordered separately

• Outdoor winter equipment available at extra charge

Guidelines

• Natural production in line with hygiene and safety guidelines

• Produced in accordance with hygiene and safety guidelines

• Material compliant with European food standards

Optional accessories:

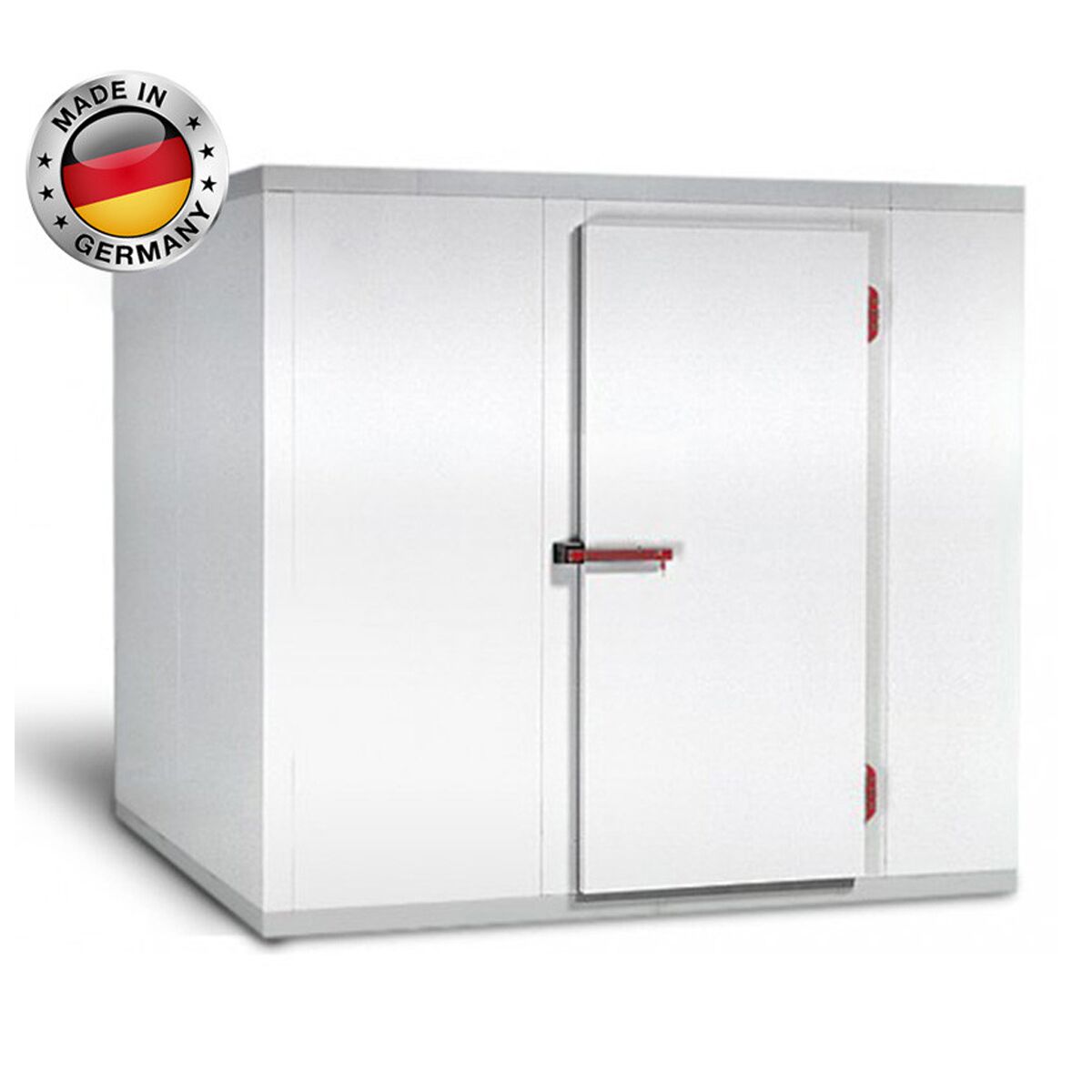

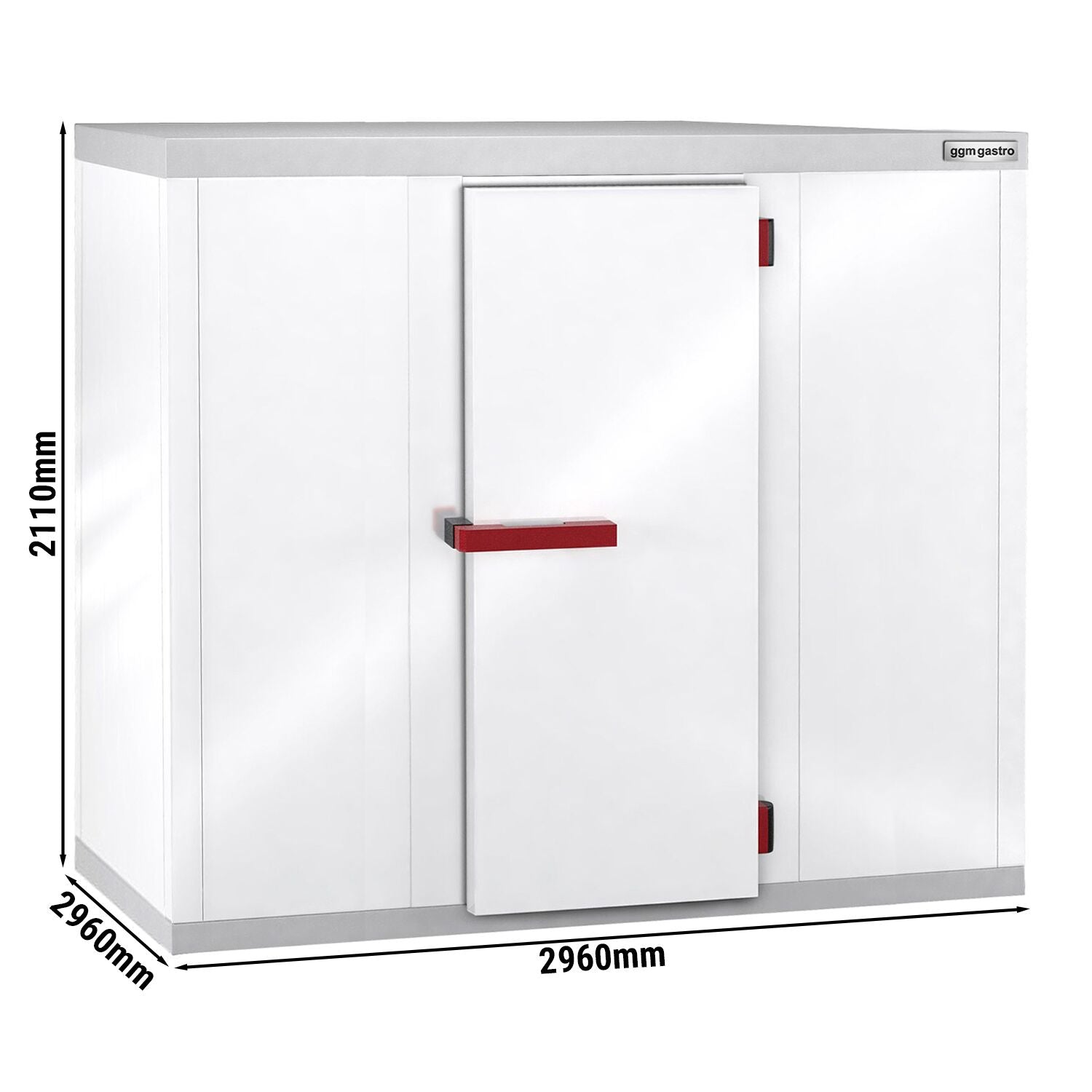

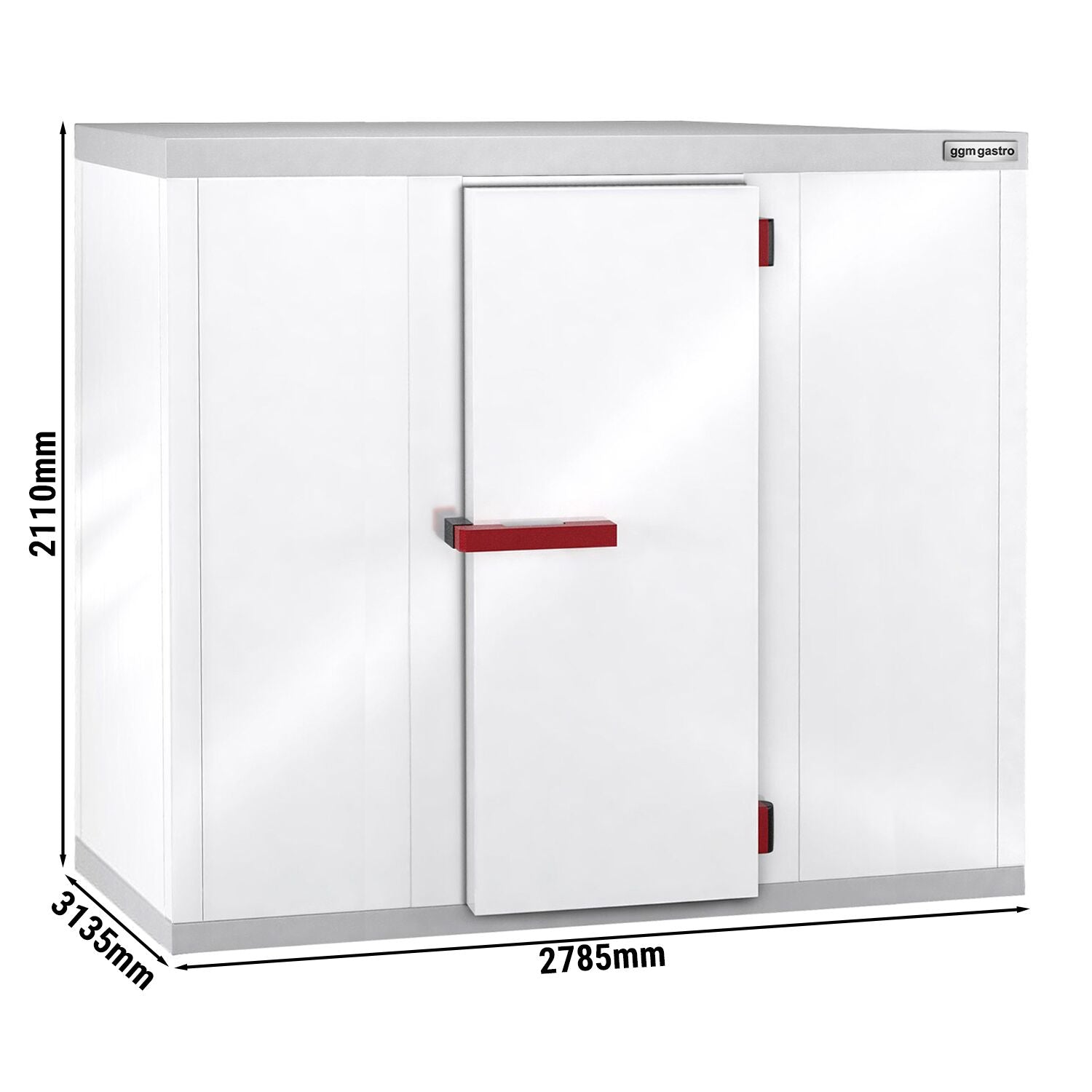

• KC series cooling chamber
