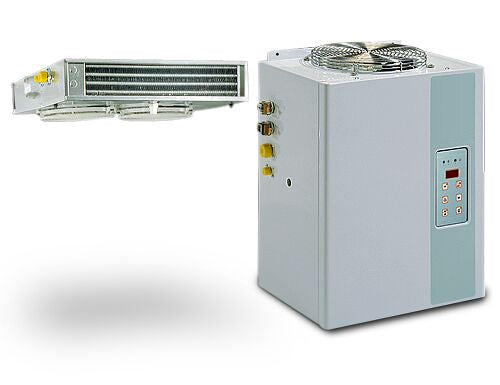

Split refrigeration unit - maximum 19.8 m³

Characteristics

• Protection class IP 23
• With lighting
• Condensation water drain
• Electronic control
• Expansion with capillary tube
• Connection for pre-filled refrigerant lines
• Door light switch, high pressure switch and remote control board
• Self-supporting housing (galvanized sheet metal with powder coating)
• Hermetic compressor with thermal winding protection
• Heat exchanger with copper tubes and aluminum fins
• Extremely hygienic thanks to easy cleaning

High quality

• Long service life
• Top class split unit
• Dimensional accuracy and high stability
• Compact refrigeration unit as a split device
• High quality product made in Europe

Insulation

• In accordance with EU regulations (Halon Directives)
• Extremely energy efficient thanks to the highest quality insulation
• Highest quality insulation thanks to the use of polyurethane

Cooling

• With refrigerant
• Temperature: -5 °C to +8 °C
• Maximum volume: 19.8 m³
• Air-cooled capacitors
• Refrigerant: R452a / 2090
• Ambient temperatures up to +43°C
• Constant high-power cooling
• Automatic defrosting with programmable controllers

Connection

• Compressor power: 1292W
• Electrical connection: 400 V / 50 Hz

Dimensions

• External dimensions of the unit (W x D x H): 650 x 390 x 840 mm
• External dimensions of the evaporator (WxDxH): 944 x 402 x 350 mm

Included in the set

• With contact switch
• With interior lighting for the refrigeration cabin
• Delivery without refrigeration cabin

Tips

• The cooling cabin must be ordered separately
• Winter equipment for outdoor use available at extra charge

Compliance with standards

• Manufactured in accordance with appropriate hygiene and safety standards
• In accordance with CE regulations ISO 9001 (international TÜV certificate)
• The material complies with European food standards

OPTIONAL ACCESSORIES

• KC series refrigerated cabin
