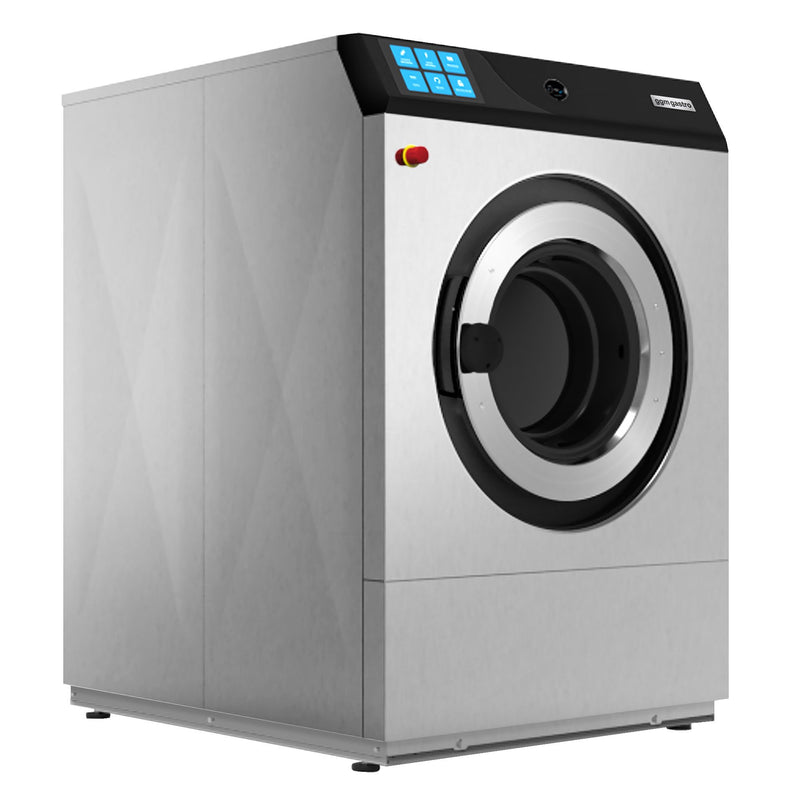

Electric washing machine - 18 kg - 915 cycles - Touch
Product benefits
- WLAN module - full control of washing cycles via WLAN using IM11, the IMConnect portal and the Laundry for You app.
- Balanced water filling - Hot and cold water are mixed during the filling phase to save energy.
- TapTech Interactive Label - Allows quick access to user manuals and device information by touching or scanning
- Programmable water, temperature and motor speed values for complete customization of wash cycles
Attention
- IMPORTANT: First remove the shipping screws! Failure to remove the shipping screws will damage the unit.
Characteristics
- High quality product made in Europe
- Professional device
- Recommended filling quantity: max. 18 kg
- Suitable for gentle washing of all types of fabrics
- Electric heating element
- New design with 7-inch touch screen
- Tilted control panel for better visibility and easy operation
- GSM system (software updates, file downloads, remote diagnostics and maintenance)
- USB port for software updates, export/import of washing programs, downloading statistics
- Reduced space between drum and valve, so no more water and detergent is wasted.
- Self-cleaning detergent chamber
- Easily removable front panel allows easy maintenance of exhaust valve and damper control system
- Timer function
- Emergency stop switch
- Door locking system
- Compatible with water recovery tanks
- Does not require anchoring in the ground
Quality
- Housing made of high quality Stainless steel SS 304
- Drum and outer drum made of AISI 304 stainless steel as standard
- Leveling system: vertical and horizontal shock absorbers for maximum stability and low noise levels
Connection
- Power: 14 kW
- Electrical connection: V / 3N/PE phase / 50 Hz
- The device is supplied without a plug!
Sizes
- External dimensions W x D x H: 880 mm x 1,004 mm x 1,285 mm
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Product benefits
- WLAN module - full control of washing cycles via WLAN using IM11, the IMConnect portal and the Laundry for You app.
- Balanced water filling - Hot and cold water are mixed during the filling phase to save energy.
- TapTech Interactive Label - Allows quick access to user manuals and device information by touching or scanning
- Programmable water, temperature and motor speed values for complete customization of wash cycles
Attention
- IMPORTANT: First remove the shipping screws! Failure to remove the shipping screws will damage the unit.
Characteristics
- High quality product made in Europe
- Professional device
- Recommended filling quantity: max. 18 kg
- Suitable for gentle washing of all types of fabrics
- Electric heating element
- New design with 7-inch touch screen
- Tilted control panel for better visibility and easy operation
- GSM system (software updates, file downloads, remote diagnostics and maintenance)
- USB port for software updates, export/import of washing programs, downloading statistics
- Reduced space between drum and valve, so no more water and detergent is wasted.
- Self-cleaning detergent chamber
- Easily removable front panel allows easy maintenance of exhaust valve and damper control system
- Timer function
- Emergency stop switch
- Door locking system
- Compatible with water recovery tanks
- Does not require anchoring in the ground
Quality
- Housing made of high quality Stainless steel SS 304
- Drum and outer drum made of AISI 304 stainless steel as standard
- Leveling system: vertical and horizontal shock absorbers for maximum stability and low noise levels
Connection
- Power: 14 kW
- Electrical connection: V / 3N/PE phase / 50 Hz
- The device is supplied without a plug!
Sizes
- External dimensions W x D x H: 880 mm x 1,004 mm x 1,285 mm
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
sizes
Width | 880mm |
---|---|
Depth | 1.004 mm |
Height | 1.285mm |
Drum size
Diameter | 700mm |
---|---|
Depth | 470mm |
Drum Contents | 181 l |
Details
Action | Touch screen |
---|---|
G-Factor | 327 |
Rotation speed | 915 rpm |
Steam consumption | 11 kg/h (Ciclo B-ISO9398) |
Water connection | 2x 3/4 inches |
Water drain | Ø 50 mm |
Connected loads
power | 14kW |
---|---|
Tension | 400V |
Phases | 3N/PE |
Frequency | 50Hz |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 481 kg |
No manuals available
