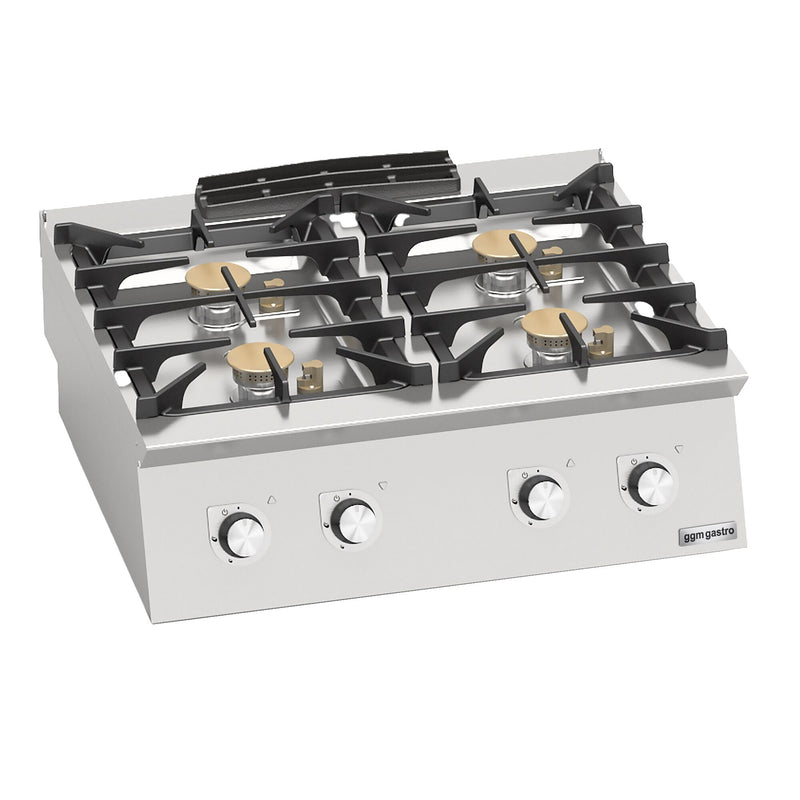

Gas cooker - 24 kW - 4 burners
Stan: Nowy
Kraj produkcji: Italy
Design
- Gas cooker made in Europe
- Heating elements and electronics made in Germany
- A great solution for professional use
- Gas savings of up to 30% per year
- Can be combined with other products from the series: Paolo 700
- Made as a tabletop device
- Control by means of a valve tap
- Automatic gas shut-off
- with thermocouple fuse
- Fireplace with splash guard
- Removable burner trays
- low energy consumption
- Environmentally friendly
- easy to use
Quality
- Housing and interior elements made of high quality AISI 304 stainless steel
- Cast iron burners
- Top plate thickness 20/10
- Scotch Brite satin finish
- Thermocouple and pilot flame with brass safety catch
Hotplate
- 4x burner
- Each burner is individually adjustable
Connection
- Natural gas as standard , the device can optionally be adapted to run on propane.
- Power: 24 kW
Sizes
- External dimensions W x D x H: 800 mm x 730 mm x 280 mm
Scope of delivery
- Delivery with nozzles for natural gas and propane-butane gas
- Height adjustable screw legs
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
- IMQ, IMQ-GS and RoHS certificates
- IPX5 certified
Optional accessories:
- Flame reducer for gas burners
- open substructure
- Closed device base
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Design
- Gas cooker made in Europe
- Heating elements and electronics made in Germany
- A great solution for professional use
- Gas savings of up to 30% per year
- Can be combined with other products from the series: Paolo 700
- Made as a tabletop device
- Control by means of a valve tap
- Automatic gas shut-off
- with thermocouple fuse
- Fireplace with splash guard
- Removable burner trays
- low energy consumption
- Environmentally friendly
- easy to use
Quality
- Housing and interior elements made of high quality AISI 304 stainless steel
- Cast iron burners
- Top plate thickness 20/10
- Scotch Brite satin finish
- Thermocouple and pilot flame with brass safety catch
Hotplate
- 4x burner
- Each burner is individually adjustable
Connection
- Natural gas as standard , the device can optionally be adapted to run on propane.
- Power: 24 kW
Sizes
- External dimensions W x D x H: 800 mm x 730 mm x 280 mm
Scope of delivery
- Delivery with nozzles for natural gas and propane-butane gas
- Height adjustable screw legs
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
- IMQ, IMQ-GS and RoHS certificates
- IPX5 certified
Optional accessories:
- Flame reducer for gas burners
- open substructure
- Closed device base
sizes
Width | 800mm |
---|---|
Depth | 730mm |
Height | 280mm |
Connected loads
Working mode | Gas |
---|---|
Burner power Ø 95 mm | 4x6kW |
Average energy consumption
Kcal/hour | 20.640 |
---|---|
Btu/hr | 81,888 |
Propane-butane gas ( G30 / G31 ) | 1.89 kg/h |
Natural gas H ( G20 ) | 2.54 m³/h |
Natural gas L ( G25 ) | 2.96 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 60kg |
