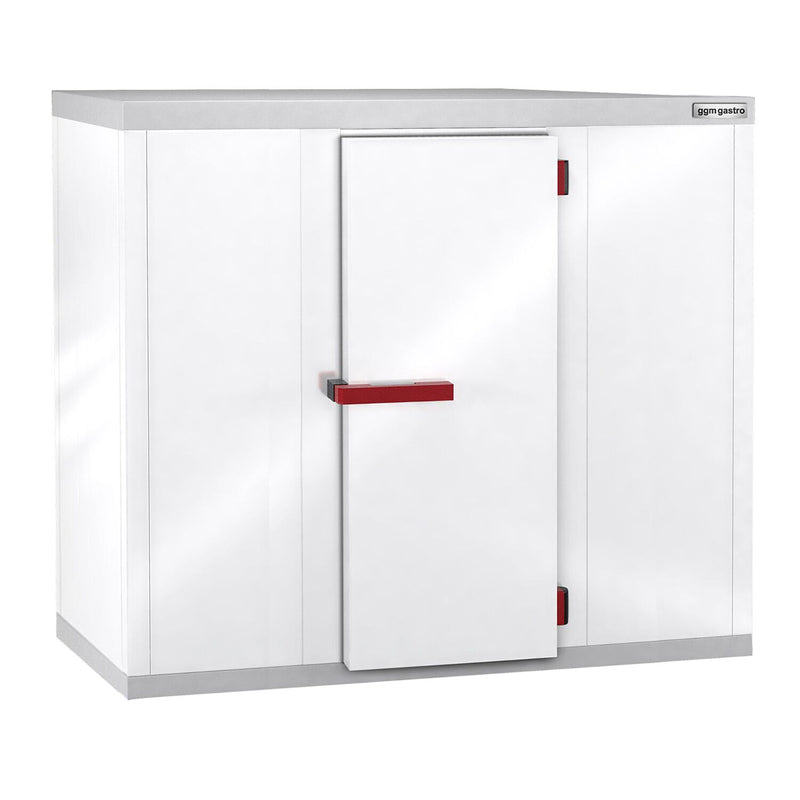

Cooling chamber - 2780x3480mm - 17.02m³

Characteristics

• Top-class refrigeration cabin
• Optimal for maintaining stock
• Long service life (usually 15 years or more)
• Extremely hygienic thanks to easy cleaning
• Trouble-free subsequent disassembly or modification

High quality

• High quality product made in Europe
• Highest quality insulation thanks to the use of polyurethane
• Dimensional accuracy and high stability
• Very strong and durable
• Compact and durable design

Dimensions

• External dimensions W x D x H: 2785 x 3485 x 2110 mm
• Volume: 17.02 m³

Wall superstructure

• Foamed fasteners for strong connection of elements
• Anti-corrosion coated turnbuckles ensure stability and tightness of the gaps
• Connection of elements via a self-centering sealing system
• Easy installation

Cell substrate

• Floor with patented anti-slip coating (anti-slip safety class R11)
• Embossed backing for maximum grip
• High load-bearing capacity of the bottom thanks to the multiple, continuous connections of the pressure distribution plates

Insulation

• Wall thickness 80 mm NO CFCs (HFKW AND FCKW)
• In accordance with EU regulations (Halon Directives)
• Extremely energy efficient thanks to the highest quality insulation

Surface

• Galvanized steel sheet, 0.63 mm mm with plastic coating
• Color: white, RAL 9002
• All elements are additionally equipped with a protective film
• The protective film can be removed after installation

Characteristic features of doors

• Pivot doors with adjustable hinges
• Jumbo gasket
• Possibility of placement and closure
• Inner compartment with integrated emergency opener
• Door stop left or right. Please specify when ordering!
• Door position is standard central on the long side. Please specify when ordering!
• Frame profiles made of impact-resistant plastic
• Stainless steel door threshold
• Door sealing profiles ensure the highest level of tightness

Included in the set

• Delivery without cooling unit
• The delivery does not include interior lighting.

Tips

• Possibility of ordering special dimensions - Please ask when ordering! - Return of special dimensions is excluded!
• Winter equipment for outdoor use available at extra charge.
• For special requests such as door stops or winter equipment, please tick the appropriate box when ordering. Later changes will not be possible!
• The interior lighting is not included in the scope of delivery of the cooling cell - the interior lighting is included when purchasing the air conditioner

Compliance with standards

• Manufactured in accordance with appropriate hygiene and safety standards
• CE marking as proof of compliance with EU standards
• The material complies with European food standards

OPTIONAL ACCESSORIES

• Shelves
• Interior lighting
• Refrigeration unit
• Anti-freeze lamella
