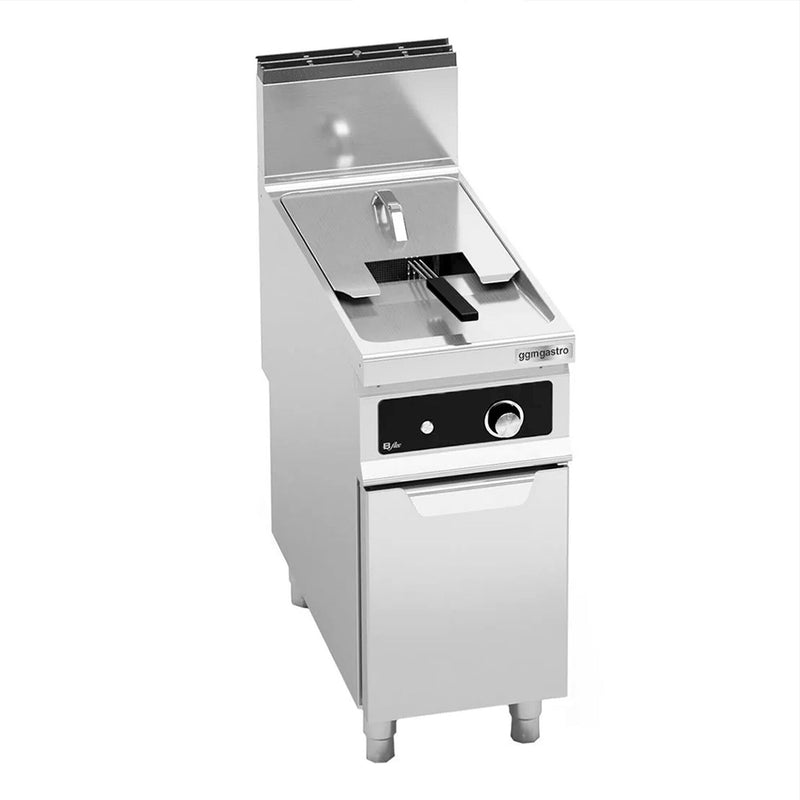

Gas fryer - 18 liters - 14 kW - Electronic control
Kraj produkcji: Italy
Design
- High quality gas fryer
- A great solution for professional use
- Heating elements and electronics made in Germany
- Can be combined with other products from the series: Lorenzo 900
- Stationary device
- Electronic control
- Indirect heating
- Capacity: 18 l
- Front oil drain with safety catch
- Fireplace with splash guard
- Thermocouple safety system (piezo ignition)
- Thermostat
- Temperature: from 110 °C ~ 190 °C
- On/Off switch
- low energy consumption
- Environmentally friendly
- Optimal heat distribution
- easy to use
Quality
- Housing made of high-quality AISI 304 stainless steel
- Stainless steel burner
- Rounded inside corners
- Height adjustable stainless steel legs
Connection
- Natural gas as standard , the device can optionally be adapted to run on propane.
- Power: 14 Watts
Sizes
- External dimensions W x D x H: 400 mm x 900 mm x 1,160 mm
Scope of delivery
- 1 basket
- Delivery with nozzles for natural gas and propane-butane gas
- 1 x Cover
- Closed device base
Guidelines
- Material compliant with European food standards
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Design
- High quality gas fryer
- A great solution for professional use
- Heating elements and electronics made in Germany
- Can be combined with other products from the series: Lorenzo 900
- Stationary device
- Electronic control
- Indirect heating
- Capacity: 18 l
- Front oil drain with safety catch
- Fireplace with splash guard
- Thermocouple safety system (piezo ignition)
- Thermostat
- Temperature: from 110 °C ~ 190 °C
- On/Off switch
- low energy consumption
- Environmentally friendly
- Optimal heat distribution
- easy to use
Quality
- Housing made of high-quality AISI 304 stainless steel
- Stainless steel burner
- Rounded inside corners
- Height adjustable stainless steel legs
Connection
- Natural gas as standard , the device can optionally be adapted to run on propane.
- Power: 14 Watts
Sizes
- External dimensions W x D x H: 400 mm x 900 mm x 1,160 mm
Scope of delivery
- 1 basket
- Delivery with nozzles for natural gas and propane-butane gas
- 1 x Cover
- Closed device base
Guidelines
- Material compliant with European food standards
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
sizes
Width | 400mm |
---|---|
Depth | 900mm |
Height | 1.160mm |
sink sizes
Width | 307mm |
---|---|
Depth | 342mm |
Height | 342mm |
Basket size
Width | 275mm |
---|---|
Depth | 285mm |
Height | 135mm |
Details
Max. Temperature | 190 °C |
---|---|
Max. Filling Quantity | 18 l |
Drain valve | 1" inches |
Connected loads
Connection | Electric |
---|---|
power | 14 Watt |
Connection | gas |
Average energy consumption
Kcal/hour | 12.040 |
---|---|
Btu/hr | 47,768 |
Propane-butane gas ( G30 / G31 ) | 1.10 kg/hour |
Natural gas H ( G20 ) | 1.48 m³/h |
Natural gas L ( G25 ) | 1.72 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 59kg |
No manuals available
sizes
Width | 400mm |
---|---|
Depth | 900mm |
Height | 1.160mm |
sink sizes
Width | 307mm |
---|---|
Depth | 342mm |
Height | 342mm |
Basket size
Width | 275mm |
---|---|
Depth | 285mm |
Height | 135mm |
Details
Max. Temperature | 190 °C |
---|---|
Max. Filling Quantity | 18 l |
Drain valve | 1" inches |
Connected loads
Connection | Electric |
---|---|
power | 14 Watt |
Connection | gas |
Average energy consumption
Kcal/hour | 12.040 |
---|---|
Btu/hr | 47,768 |
Propane-butane gas ( G30 / G31 ) | 1.10 kg/hour |
Natural gas H ( G20 ) | 1.48 m³/h |
Natural gas L ( G25 ) | 1.72 m³/h |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 59kg |
No manuals available
