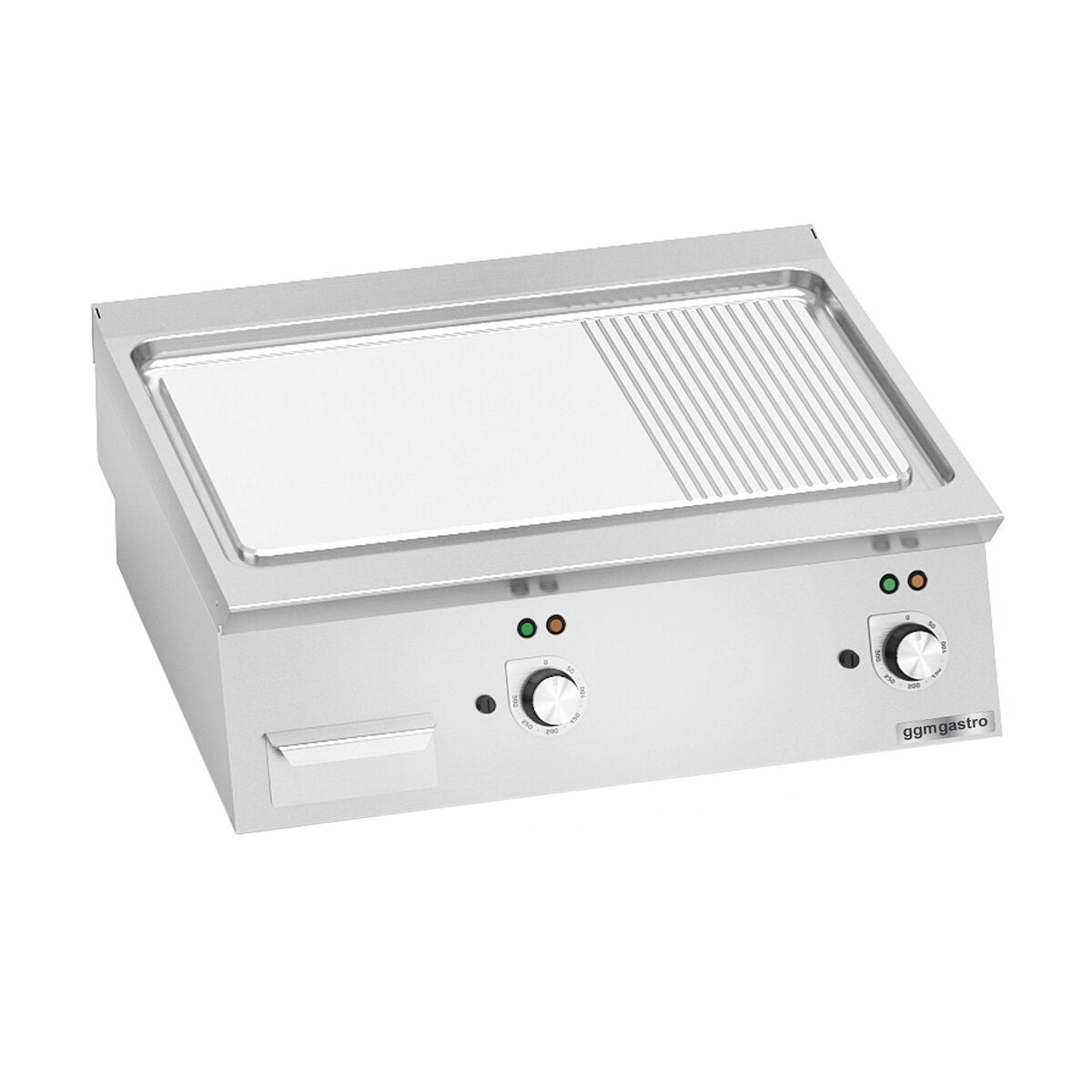

Electric Grill Plate - 9.6 kW - Smooth & Grooved
Kraj produkcji: Italy
Characteristics
- European-made frying plate
- Heating elements and electronics made in Germany
- Version: electric device
- A great solution for professional use
- Can be combined with other products from the series: Paolo 700
- Made as a tabletop device
- Grill surface with collection channel and drain hole
- Smooth surface & grooved surface
- Cooking dry or with a small amount of oil
- Grill plate with fat drawer
- Adjustable temperature
- Splash protection
- Even heat distribution
- Safety thermostat
- Working indicator lights
- easy to use
- Compact & space saving
Quality
- Housing and interior elements made of high quality AISI 304 stainless steel
- Smooth surface made of satin Scotch Brite stainless steel
- High-quality, rust-proof, durable and hygienic top plate made of high-quality stainless steel AISI 316 stainless steel
- Top plate thickness 20/10
- Steel base plate ensures the best possible heat distribution
- Heating element made of Incoloy steel
Grill area
- 2 heating zones
- Temperature up to 300 °C
Connection
- Power: 9.60 kW
- Electrical connection: 400VV / 3N/PE phase / 50 Hz
Sizes

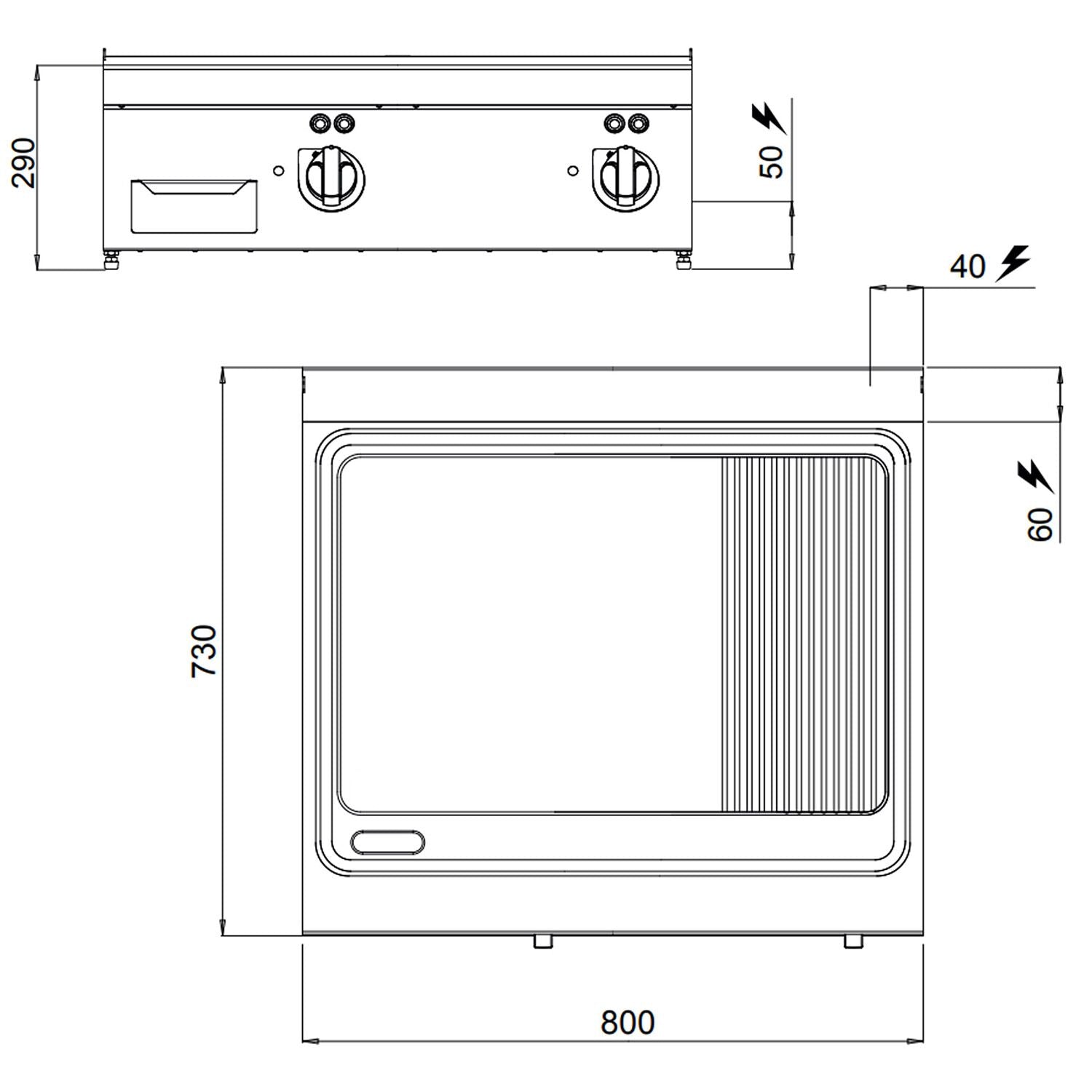

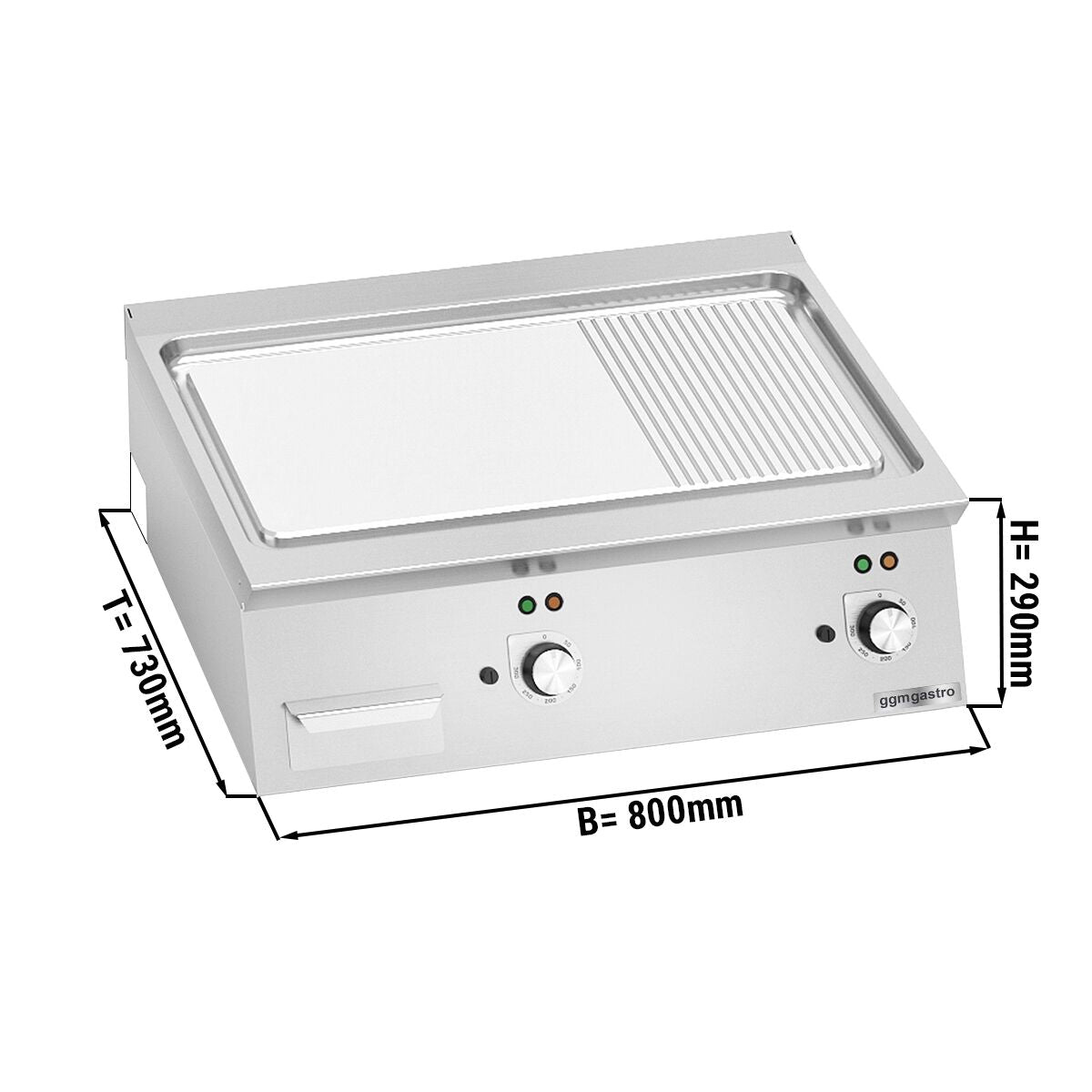

- External dimensions W x D x H: 800 mm x 730 mm x 290 mm
Scope of delivery
- Delivery without cable
- Height adjustable screw legs
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
- IMQ, IMQ-GS and RoHS certificates
- IPX5 certified
Optional accessories:
- Stainless steel scraper - smooth
- open substructure
- Closed device base
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- European-made frying plate
- Heating elements and electronics made in Germany
- Version: electric device
- A great solution for professional use
- Can be combined with other products from the series: Paolo 700
- Made as a tabletop device
- Grill surface with collection channel and drain hole
- Smooth surface & grooved surface
- Cooking dry or with a small amount of oil
- Grill plate with fat drawer
- Adjustable temperature
- Splash protection
- Even heat distribution
- Safety thermostat
- Working indicator lights
- easy to use
- Compact & space saving
Quality
- Housing and interior elements made of high quality AISI 304 stainless steel
- Smooth surface made of satin Scotch Brite stainless steel
- High-quality, rust-proof, durable and hygienic top plate made of high-quality stainless steel AISI 316 stainless steel
- Top plate thickness 20/10
- Steel base plate ensures the best possible heat distribution
- Heating element made of Incoloy steel
Grill area
- 2 heating zones
- Temperature up to 300 °C
Connection
- Power: 9.60 kW
- Electrical connection: 400VV / 3N/PE phase / 50 Hz
Sizes
- External dimensions W x D x H: 800 mm x 730 mm x 290 mm
Scope of delivery
- Delivery without cable
- Height adjustable screw legs
Guidelines
- Natural production in line with hygiene and safety guidelines
- The product is CE marked in accordance with the regulations
- Material compliant with European food standards
- IMQ, IMQ-GS and RoHS certificates
- IPX5 certified
Optional accessories:
- Stainless steel scraper - smooth
- open substructure
- Closed device base
sizes
Width | 800mm |
---|---|
Depth | 730mm |
Height | 290mm |
Details
Temperature | 50 °C °C ~300 °C |
---|
Connected loads
Working mode | Electric |
---|---|
power | 9.60kW |
Tension | 400V |
Frequency | 50Hz |
Phases | 3N/PE |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 80kg |
No manuals available
sizes
Width | 800mm |
---|---|
Depth | 730mm |
Height | 290mm |
Details
Temperature | 50 °C °C ~300 °C |
---|
Connected loads
Working mode | Electric |
---|---|
power | 9.60kW |
Tension | 400V |
Frequency | 50Hz |
Phases | 3N/PE |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 80kg |
No manuals available
