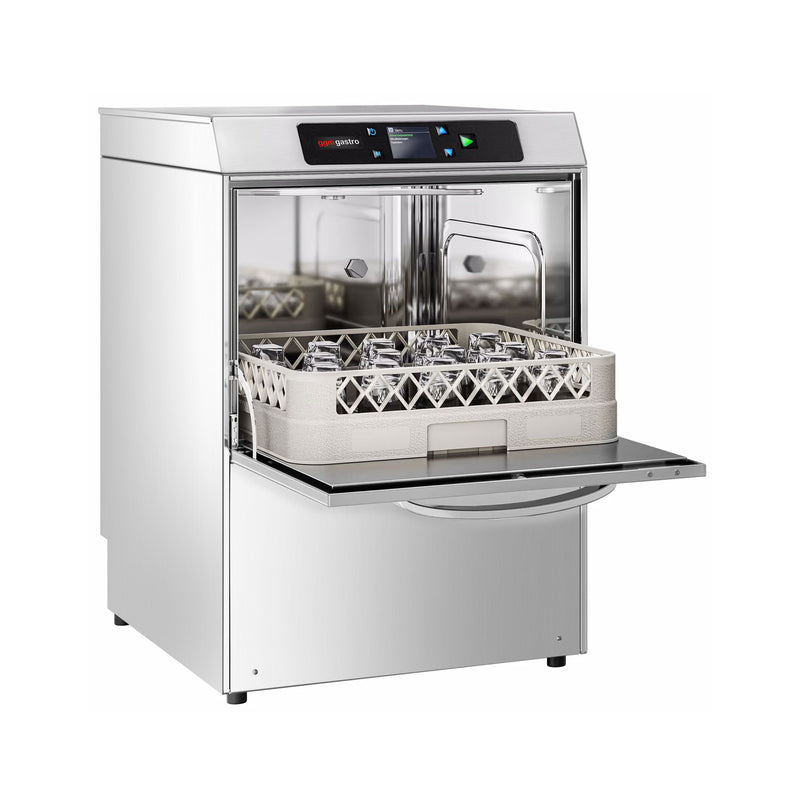

Double-walled glasswasher - digital - 3.4 kW - with drain, detergent & rinse aid pump & Wi-Fi option

Product benefits

• WLAN system for sending text messages to inform about any irregularities or preventive messages regarding the status of the dishwasher and adjustments via the remote control

• Electronic control with high-resolution 45x60 mm TFT color display with direct display of temperatures, phases and any anomalies

• Four variable wash cycles for different types of dishes to wash

• The rinsing system with an expansion tank, high pressure pump and insulated boiler maintains the set temperature and pressure of the rinsing water at a constant level

Design

• Premium dishwasher

• Double-walled dishwasher with lye and detergent pump

• Device for substructure

• Tank and door made of high quality stainless steel AISI 304 stainless steel

• Fully printed tank with rounded corners and a bottom sloping towards the filters

• Insulated, balanced doors

• Integrated Wi-Fi connection system for remote control

• 2 wash arms for effective cleaning

• With 2 rinsing arms

• Electric rinse aid dispenser

• It is recommended to use an external descaling agent.

• List of the number of daily and total wash cycles performed

Quality

• Double-walled housing made of high-quality AISI 304 stainless steel

• Washing and rinsing arm made of stainless steel

• Very durable and energy efficient

Rinsing process

• with 4 programs

• Rinse program I: Rinse time 60 seconds, 60 baskets / hour.

• Rinse program II: Rinse time 120 seconds, 30 baskets / hour.

• Rinse program III: Rinse time 180 seconds, 20 baskets/hour.

• Rinse program IV: Rinse time 480 seconds, 8 baskets/hour.

Technology

• Electric supply of cleaning agent

• Rinsing chamber with double filter system

• Rotating, non-clogging wash and rinse arms

• Standby mode for energy saving

• Electric rinse aid dispenser pump (white hose)

• The drain pump pumps the sewage over the height difference to the sewage connection

Connection

• Power: 3.40 kW

• Electrical connection: 230V / 1N/PE / 50 Hz

Sizes

• External dimensions W x D x H: 473 mm x 539 mm x 700 mm

Scope of delivery

• 1x universal basket

• 1x dish basket

• 1x cutlery basket

• 1x Water inlet hose

• 1x water drain hose

• 1x rinse aid hose with float

• 1x detergent hose (red)

• 1 Schuko plug

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• Material compliant with European food standards

Attention

• The WI-FI module stores HACCP parameters such as cycles, temperatures and alarms. These parameters can be downloaded via smartphone or a dedicated website.

• For information on mains voltage, please refer to the instruction manual.

• Please note that this appliance requires a cold water connection.

• Only suitable for chlorine-free cleaning agents.

• We recommend that you descale your appliance and its components regularly to ensure smooth dishwashing!

• If you have used a descaler in the inlet, please note that after approx. 1500 - 2000 the water flow must be regenerated. The actual maximum flow rate depends on the water hardness.
