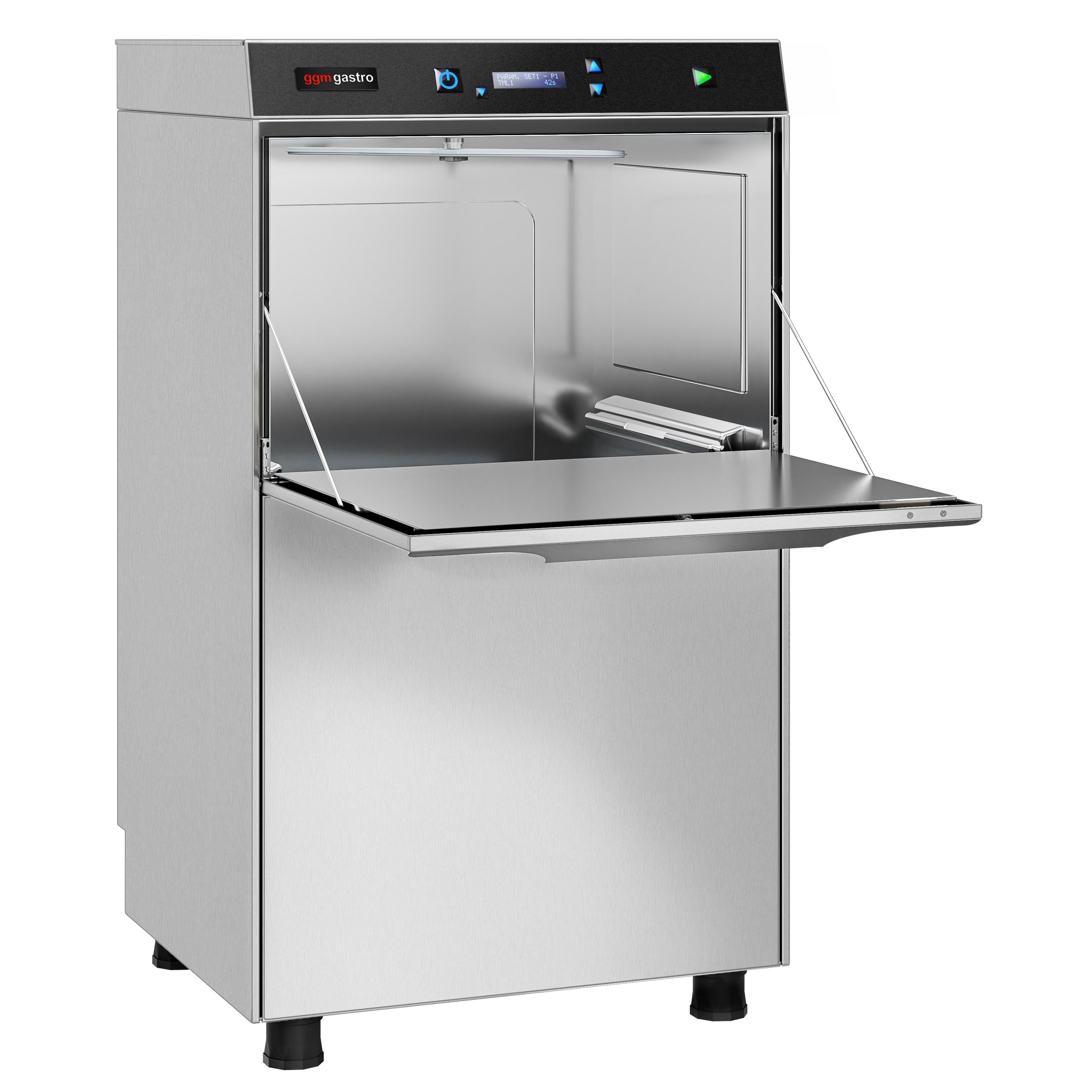

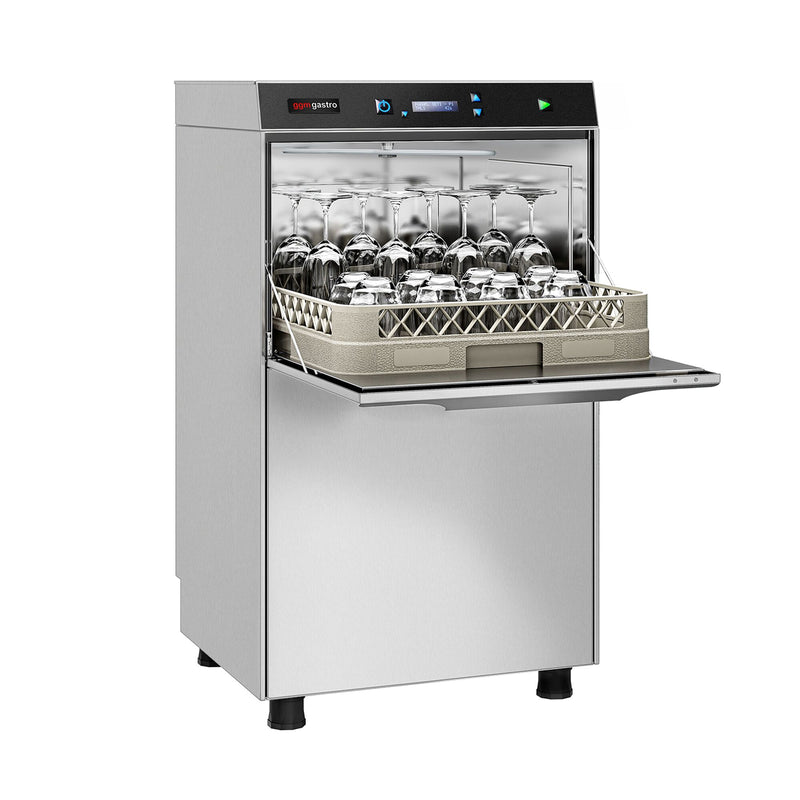

Double-walled dishwasher - digital - 3.9 kW - with detergent pump

Characteristics

• Dishwasher without drain pump

• Stationary device

• with cleaning pump

• Electric rinse aid dispenser

• 2 Washing arms for effective cleaning

• With rinsing aid arms

• Electronic control panel with LCD display

• Maintenance-free electromechanical controller

• suitable for washing GN containers

• Opening doors with a security system

• High rinsing power

• Removable cylindrical filter for removing waste and dirt

• Easy to clean

Quality

• High-quality stainless steel casing

• Very durable device

Rinsing process

• Easy to use

• with 4 programs

• Rinse program I: Rinse time 60 seconds, 60 baskets / hour.

• Rinse program II: Rinse time 120 seconds, 30 baskets / hour.

• Rinse program III: Rinse time 180 seconds, 20 baskets/hour.

• Rinse program IV: Rinse time 480 seconds, 8 baskets/hour.

Technology

• Electric supply of cleaning agent

• Rinsing chamber with double filter system

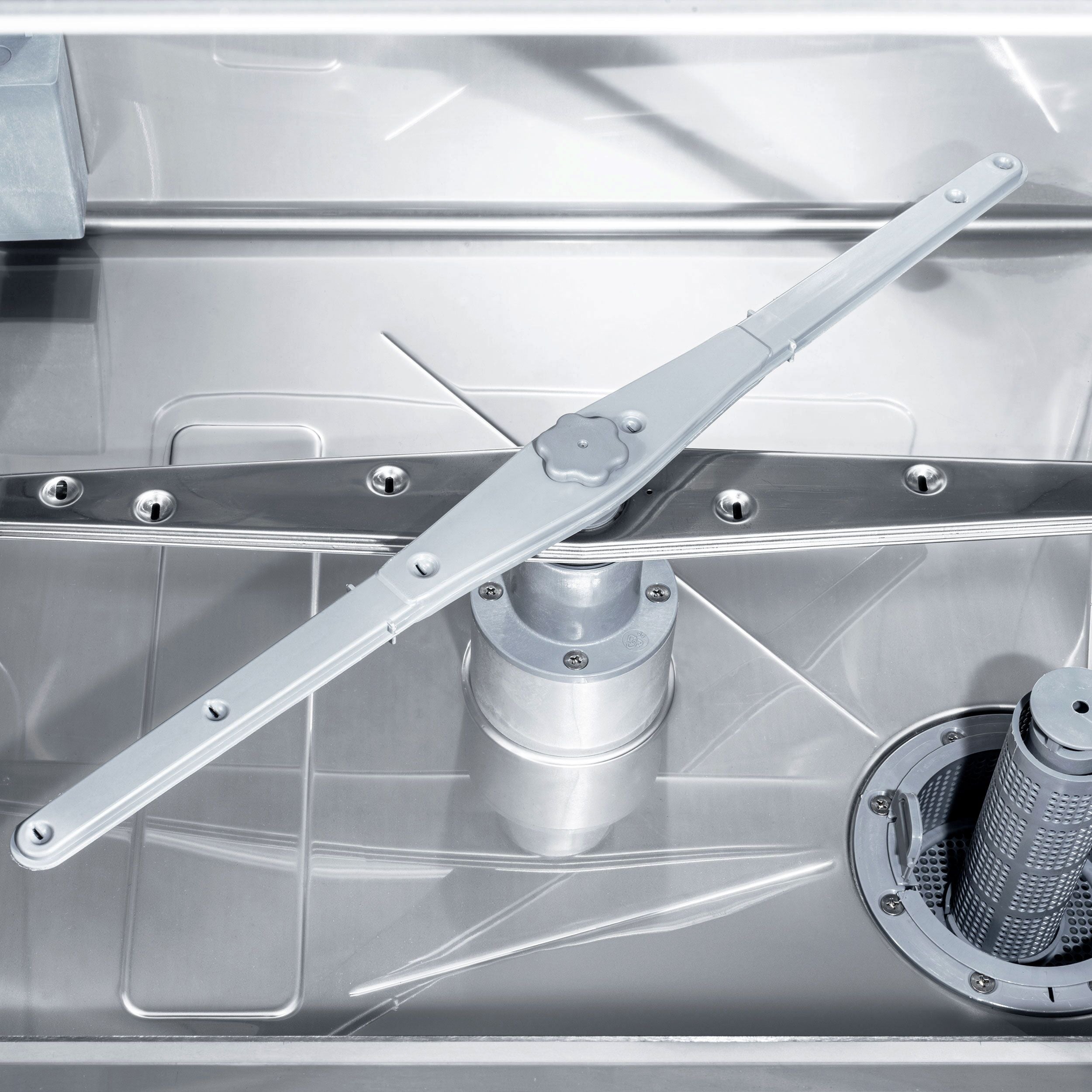

• Rotating, non-clogging wash and rinse arms

• Electric cleaning pump (red hose)

• Electric rinse aid dispenser pump (white hose)

Connection

• Power: 3.90 kW

• Electrical connection: 400V / 3N/PE / 50 Hz

Sizes

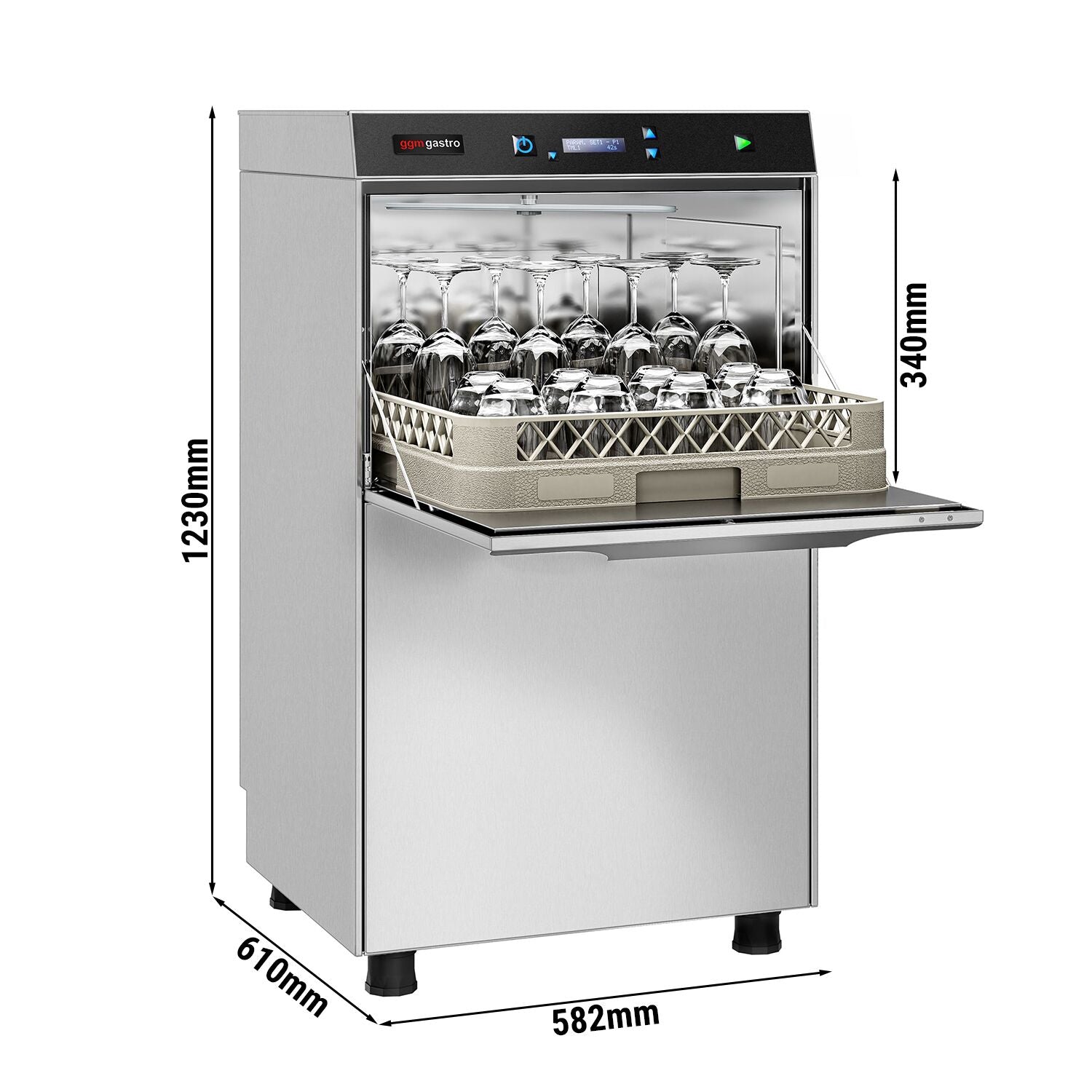

• External dimensions W x D x H: 582 mm x 610 mm x 1,230 mm

Scope of delivery

• 1 Universal basket

• 1 Dish basket

• 1 cutlery basket

• The device is supplied without a plug!

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

Attention

• For information on mains voltage, please refer to the instruction manual.

• Only suitable for chlorine-free cleaning agents.

• Please note that the appliance can be used with both hot and cold water connections. The washing programme values ​​can only be guaranteed with a hot water connection.

• We recommend that you descale your appliance and its components regularly to ensure smooth dishwashing!

• If you have used a descaler in the inlet, please note that after approx. 1500 - 2000 liters the water flow must be regenerated. The actual maximum flow rate depends on the water hardness.

• Detailed instructions can be found in the "Download" and "Video" tabs.
