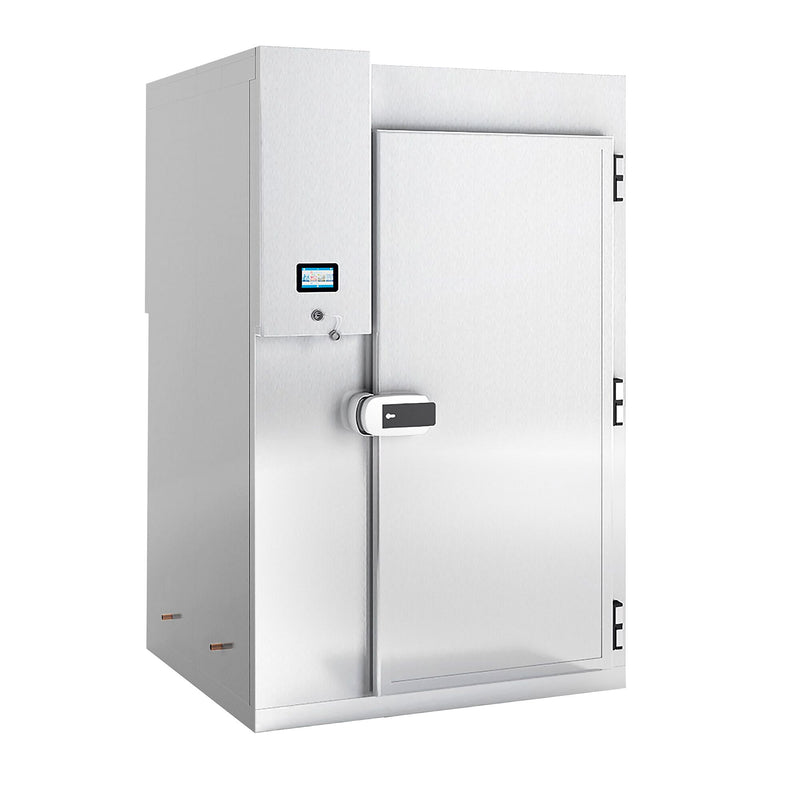

Shock freezer - Touch - 1861 liters - 20x GN 1/1 or EN 60x40 - without ramp

Characteristics

• The kit includes: Blast freezer and chiller

• Touch screen

• Suitable for: GN 1/1 and 600x400 containers

• Climate class 4: This device is designed for operation at ambient temperatures between +10 °C and +30 °C

• Lockable doors

Quality

• Exterior and interior made of high quality AISI 304 stainless steel

• Internal construction: Reflective internal surface with rounded corners

• Insulation: Polyurethane: High density polyurethane 40 kg/m3, CFC free

• Insulation thickness: 80 mm

• Door frame heating

Cooling

• Compressor

• Manual defrost

• Refrigerant: R452a

• Temperature range: min. -35 °C

• From 90 °C to 3 °C in 90 min.

• From 90 °C to -18 °C in 270 min.

• Frost prevention control program

• Extendable conical heating probe

Connection

• Power: 9.77 kW

• Electrical connection: 400VV / 1N/PE phase / 50 Hz

Sizes

• External dimensions (WxDxH): 1,200 mm x 1,095 mm x 2,280 mm

• Internal size: W x D x H: 945mm x 840mm x 2,107mm

Attention

• Ramp not included in delivery

• Refrigerant lines are not included in the scope of delivery and must be purchased and installed by a specialist on site.

• The GN container trolley is not included in the scope of delivery.

• The system is filled for a refrigerant line length of 10 meters. If, due to the planned development, it is necessary to install a line longer than 10 m, the refrigerant must be added to the system on site by a specialist.

Guidelines

• Material compliant with European food standards

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations
