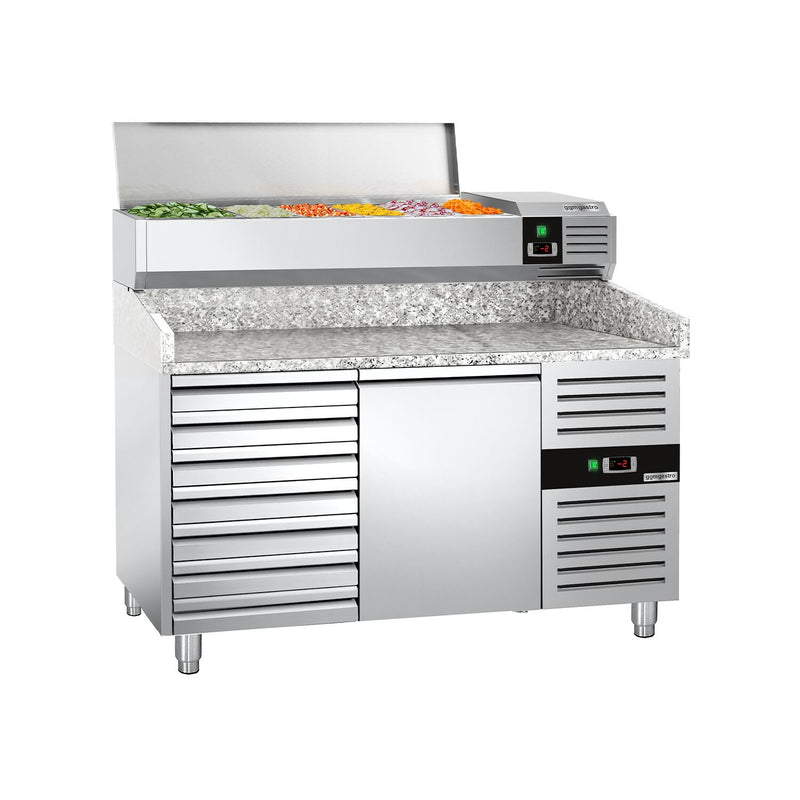

Refrigerated pizza table PREMIUM - 1500x800mm - with 1 door and 7 drawers - including a top refrigerated display - 6x GN 1/3
Stan: Nowy
Kraj produkcji: China
Design
- PREMIUM version
- Working height: 850 mm
- Electronic control
- Digital display
- Usable capacity: 190 l
- Insulation of sides and doors 0
- High power with low power consumption (environmentally friendly)
- Height adjustable legs
- Suitable for pizzerias
Quality
- Housing and doors made of high quality AISI 304 stainless steel
- Thickness of stainless steel: 0.90 mm
- Kitchen countertop with granite base
Cooling
- Cold rooms: convection cooling
- Temperature range: -2 °C to 8 °C
- Top-mounted refrigerated display cabinet: Static cooling
- Temperature range: -2 °C to 8 °C
- Extremely efficient cooling engine
- Low energy consumption
- Constant high-power cooling
- Refrigerant: R600a , CFC - free
Cold rooms
- 1 cold room with 1 door
- 1 grate per door
- easy opening and closing of doors
- Partition dimensions: EN 1/1
Top-mounted refrigerated display case
- Suitable for 6x GN 1/3
- Hinged stainless steel lid
Interior fittings
- Stainless steel interior
- 7 Drawers (not refrigerated)
Connection
- Electrical connection: 230VV / 1N/PE phase / 50 Hz
- Refrigerated table
- Power: 275 Watts
- Average power (kW/24 hrs): 1.80 KW
- Top-mounted refrigerated display case
- Power: 110 Watts
- Average power (kW/24h): 1.3 kW
Sizes
- External dimensions W x D x H: 1,500 mm x 800 mm x 1,281 mm
Scope of delivery
- 1 Pair of slide-in rails
- GN container NOT included in the scope of delivery
Guidelines
- In accordance with CE regulations ISO 9001 (international TÜV certificate)
- Natural production in line with hygiene and safety guidelines
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Design
- PREMIUM version
- Working height: 850 mm
- Electronic control
- Digital display
- Usable capacity: 190 l
- Insulation of sides and doors 0
- High power with low power consumption (environmentally friendly)
- Height adjustable legs
- Suitable for pizzerias
Quality
- Housing and doors made of high quality AISI 304 stainless steel
- Thickness of stainless steel: 0.90 mm
- Kitchen countertop with granite base
Cooling
- Cold rooms: convection cooling
- Temperature range: -2 °C to 8 °C
- Top-mounted refrigerated display cabinet: Static cooling
- Temperature range: -2 °C to 8 °C
- Extremely efficient cooling engine
- Low energy consumption
- Constant high-power cooling
- Refrigerant: R600a , CFC - free
Cold rooms
- 1 cold room with 1 door
- 1 grate per door
- easy opening and closing of doors
- Partition dimensions: EN 1/1
Top-mounted refrigerated display case
- Suitable for 6x GN 1/3
- Hinged stainless steel lid
Interior fittings
- Stainless steel interior
- 7 Drawers (not refrigerated)
Connection
- Electrical connection: 230VV / 1N/PE phase / 50 Hz
- Refrigerated table
- Power: 275 Watts
- Average power (kW/24 hrs): 1.80 KW
- Top-mounted refrigerated display case
- Power: 110 Watts
- Average power (kW/24h): 1.3 kW
Sizes
- External dimensions W x D x H: 1,500 mm x 800 mm x 1,281 mm
Scope of delivery
- 1 Pair of slide-in rails
- GN container NOT included in the scope of delivery
Guidelines
- In accordance with CE regulations ISO 9001 (international TÜV certificate)
- Natural production in line with hygiene and safety guidelines
- Material compliant with European food standards
Technical values for the cooling table
sizes
Width | 1,500 mm |
---|---|
Depth | 800mm |
Height | 1.000mm |
partition sizes
Width | 400mm |
---|---|
Depth | 600mm |
partition sizes | 1/1 |
door sizes
Width | 490mm |
---|---|
Height | 620mm |
Details
Useful content | 190 l |
---|---|
Stainless steel legs | Ø 40 mm (height adjustable) |
Door | 1 |
Refrigerant:
Cooling factor | convection cooling |
---|---|
Refrigerant | R600a |
Temperature | -2°C to 8°C |
Connected loads
Connection | Electric |
---|---|
power | 275 Watt |
Average power (kW/24 hrs) | 1.80 kW |
Tension | 230V |
Frequency | 50Hz |
Phases | 1N/PE |
Technical values for a top-mounted refrigerated display cabinet
sizes
Width | 1,500 mm |
---|---|
Depth | 395mm |
Height | 281mm |
Details
Contents of the cap | 6xGN 1/3 |
---|
Cooling
Cooling factor | Static cooling |
---|---|
Defrosting | Manual |
Refrigerant | R600a |
Temperature | -2°C to 8°C |
Connected loads
Connection | Electric |
---|---|
Power | 110 Watt |
Average power (kW/24 hrs) | 1.3kW |
Tension | 230V |
Frequency | 50Hz |
Overall sizes
Width | 1,500 mm |
---|---|
Depth | 800mm |
Height | 1,281 mm |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 355 kg |
Technical values for the cooling table
sizes
Width | 1,500 mm |
---|---|
Depth | 800mm |
Height | 1.000mm |
partition sizes
Width | 400mm |
---|---|
Depth | 600mm |
partition sizes | 1/1 |
door sizes
Width | 490mm |
---|---|
Height | 620mm |
Details
Useful content | 190 l |
---|---|
Stainless steel legs | Ø 40 mm (height adjustable) |
Door | 1 |
Refrigerant:
Cooling factor | convection cooling |
---|---|
Refrigerant | R600a |
Temperature | -2°C to 8°C |
Connected loads
Connection | Electric |
---|---|
power | 275 Watt |
Average power (kW/24 hrs) | 1.80 kW |
Tension | 230V |
Frequency | 50Hz |
Phases | 1N/PE |
Technical values for a top-mounted refrigerated display cabinet
sizes
Width | 1,500 mm |
---|---|
Depth | 395mm |
Height | 281mm |
Details
Contents of the cap | 6xGN 1/3 |
---|
Cooling
Cooling factor | Static cooling |
---|---|
Defrosting | Manual |
Refrigerant | R600a |
Temperature | -2°C to 8°C |
Connected loads
Connection | Electric |
---|---|
Power | 110 Watt |
Average power (kW/24 hrs) | 1.3kW |
Tension | 230V |
Frequency | 50Hz |
Overall sizes
Width | 1,500 mm |
---|---|
Depth | 800mm |
Height | 1,281 mm |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 355 kg |
