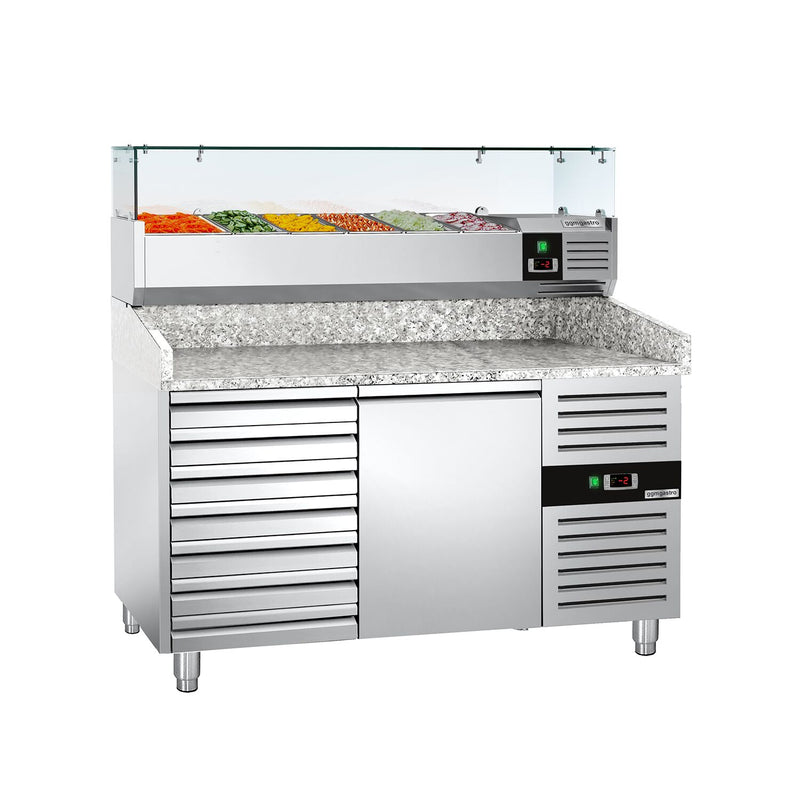

ECO refrigerated pizza table - 1500x800mm - with 1 door and 7 drawers - including a top refrigerated display - 6x GN 1/3
Stan: Nowy
Kraj produkcji: China
Characteristics
- ECO version
- Working height: 850 mm .
- Electronic control
- Digital display
- Gross capacity: 190 l .
- Insulation on sides and door insulation 50 mm thick.
- High efficiency with low power consumption (environmentally friendly)
- Height adjustable legs
- Suitable for pizzerias
- Easy to clean
Quality
- Body, doors and drawers made of high-quality AISI 304 stainless steel
- Thickness of stainless steel: 0.90 mm
- Kitchen countertop with granite edge
Cooling
- Cold rooms: circulating air cooling
- Temperature range: -2 °C to 8 °C
- Top unit, refrigerated display: static cooling
- Temperature range: -2 °C to 8 °C
- Extremely efficient cooling engine
- Low energy consumption
- Constant high-power cooling
- Refrigerant: R600a, CFC-free
Cold rooms
- 1 cold room with 1 door
- 1 grate per door
- easy opening and closing of doors
- Chamber size: EN
Adjustable showcase
- Suitable for 6x GN 1/3 .
- Simple glass construction
Interior fittings
- 7 Uncooled drawer(s)
- Stainless steel interior
Connection
- Average consumption (kW/24 h): 1.80 kW
- Electrical connection: 1N/PE 50 Hz230V
- Cooling kit demonstration performance: 110 Watts
- Average power (kW/24 h): 1.3 kW .
- Electrical connection: 1N/PE 50 Hz230V
Dimensions
- External dimensions (WxDxH): 1,500 mm x 800 mm x 1,439 mm
Included in the set
- 1Pair of slide rails
- GN containers NOT INCLUDED in the scope of delivery
- 1 x PL Rust
Compliance with standards
- In accordance with CE regulations ISO 9001 (international TÜV certificate)
- Manufactured in accordance with appropriate hygiene and safety standards
- The materials comply with European food safety standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- ECO version
- Working height: 850 mm .
- Electronic control
- Digital display
- Gross capacity: 190 l .
- Insulation on sides and door insulation 50 mm thick.
- High efficiency with low power consumption (environmentally friendly)
- Height adjustable legs
- Suitable for pizzerias
- Easy to clean
Quality
- Body, doors and drawers made of high-quality AISI 304 stainless steel
- Thickness of stainless steel: 0.90 mm
- Kitchen countertop with granite edge
Cooling
- Cold rooms: circulating air cooling
- Temperature range: -2 °C to 8 °C
- Top unit, refrigerated display: static cooling
- Temperature range: -2 °C to 8 °C
- Extremely efficient cooling engine
- Low energy consumption
- Constant high-power cooling
- Refrigerant: R600a, CFC-free
Cold rooms
- 1 cold room with 1 door
- 1 grate per door
- easy opening and closing of doors
- Chamber size: EN
Adjustable showcase
- Suitable for 6x GN 1/3 .
- Simple glass construction
Interior fittings
- 7 Uncooled drawer(s)
- Stainless steel interior
Connection
- Average consumption (kW/24 h): 1.80 kW
- Electrical connection: 1N/PE 50 Hz230V
- Cooling kit demonstration performance: 110 Watts
- Average power (kW/24 h): 1.3 kW .
- Electrical connection: 1N/PE 50 Hz230V
Dimensions
- External dimensions (WxDxH): 1,500 mm x 800 mm x 1,439 mm
Included in the set
- 1Pair of slide rails
- GN containers NOT INCLUDED in the scope of delivery
- 1 x PL Rust
Compliance with standards
- In accordance with CE regulations ISO 9001 (international TÜV certificate)
- Manufactured in accordance with appropriate hygiene and safety standards
- The materials comply with European food safety standards
Technical values of the cooling table
Dimensions
Depth | 800mm |
---|
Partition dimensions
Depth | 400mm |
---|---|
Partition dimensions | EN |
Door dimensions
Door height | 620mm |
---|
Details
Usable volume | 190 l |
---|---|
Stainless steel legs | Ø 40 mm (height adjustable) |
Door | 1 |
Drawers | 7 |
Coolant:
Cooling agent | Air circulation cooling |
---|---|
Coolant | R600a |
Temperature | -2°C to 8°C |
Connection parameters
Connection | Electric |
---|---|
Cooling table output | 275 Watt |
Tension | 230V |
Frequency | 50Hz |
Phases | 1N/PE |
Technical values of the refrigerated display case
Dimensions
Length | 1,500 mm |
---|---|
Width | 395mm |
Height | 439mm |
Details
Suitable for | 6xGN 1/3 |
---|
Cooling
Cooling agent | static cooling |
---|---|
Defrosting | hand |
Coolant | R600a |
Temperature | -2°C to 8°C |
Connection parameters
Connection | Electric |
---|---|
Cooling device efficiency | 110 Watt |
Average power (kW/24 h) | 1.3kW |
Tension | 230V |
Frequency | 50Hz |
Overall dimensions
Width | 1,500 mm |
---|---|
Width | 800mm |
Height | 1,439 mm |
Delivery
Shipment | shipping |
---|---|
Delivery Status | Installed |
Mass | 351 kg |
Technical values of the cooling table
Dimensions
Depth | 800mm |
---|
Partition dimensions
Depth | 400mm |
---|---|
Partition dimensions | EN |
Door dimensions
Door height | 620mm |
---|
Details
Usable volume | 190 l |
---|---|
Stainless steel legs | Ø 40 mm (height adjustable) |
Door | 1 |
Drawers | 7 |
Coolant:
Cooling agent | Air circulation cooling |
---|---|
Coolant | R600a |
Temperature | -2°C to 8°C |
Connection parameters
Connection | Electric |
---|---|
Cooling table output | 275 Watt |
Tension | 230V |
Frequency | 50Hz |
Phases | 1N/PE |
Technical values of the refrigerated display case
Dimensions
Length | 1,500 mm |
---|---|
Width | 395mm |
Height | 439mm |
Details
Suitable for | 6xGN 1/3 |
---|
Cooling
Cooling agent | static cooling |
---|---|
Defrosting | hand |
Coolant | R600a |
Temperature | -2°C to 8°C |
Connection parameters
Connection | Electric |
---|---|
Cooling device efficiency | 110 Watt |
Average power (kW/24 h) | 1.3kW |
Tension | 230V |
Frequency | 50Hz |
Overall dimensions
Width | 1,500 mm |
---|---|
Width | 800mm |
Height | 1,439 mm |
Delivery
Shipment | shipping |
---|---|
Delivery Status | Installed |
Mass | 351 kg |
