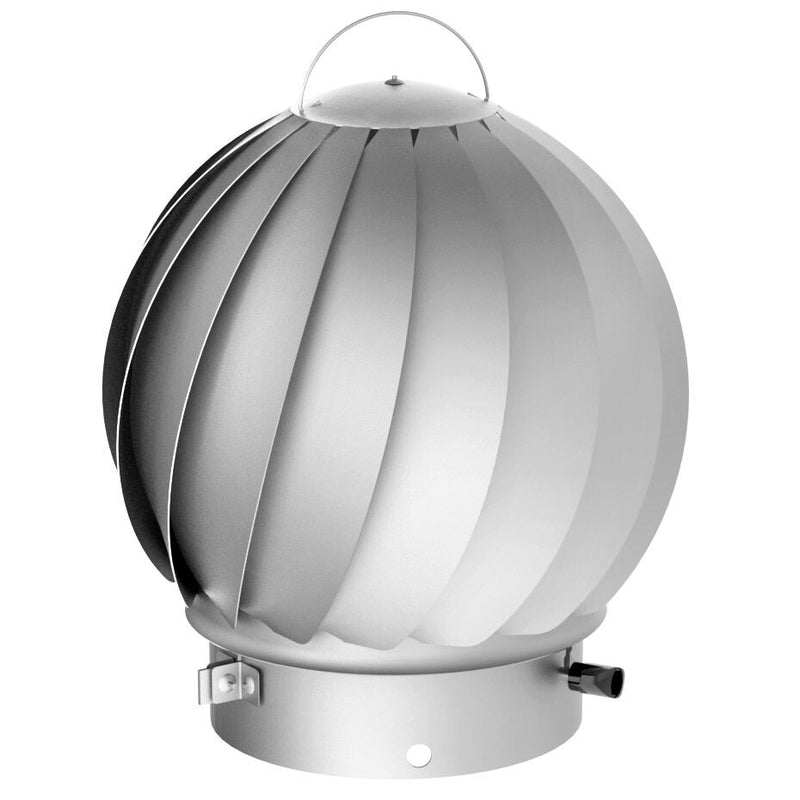

Rotating chimney cap - Ø 300 - 350 mm

Design

• Upper part of the chimney Ø 300-350mm

• For solid fuels up to 600 °C

• Prevents backflow of exhaust gases and ensures a constant chimney flow.

• It can also be used in conjunction with a ventilation system.

• Rotates even at very low wind speeds.

• The negative pressure generated in the ventilation or exhaust system improves the draft in the system.

• It does not require an energy supply compared to electronic chimney fans.

• Environmentally friendly

• suitable for removing accumulated heat in attics, halls or barns.

• Easy cleaning of exhaust and top pipes thanks to the pipe holder and hinged impeller unit

• Low vibration and pleasantly quiet operation

• Easy installation

Quality

• Made of stainless steel

• Corrosion protection

• Matt stainless steel blinds (anti-glare)

• Permanently lubricated ball bearings in moving parts

Sizes

• External dimensions W x D x H: 420 mm x 420 mm x 315 mm

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

Attention

• Installation should be carried out by a specialist (chimney sweep, chimney builder, roofer or ventilation engineer).

• Chimney tips are high-precision devices. To ensure proper operation, the blades must not be bent or otherwise damaged.

• The transport bracket must be removed after installation.

• Depending on the pipe diameter, an ESKAJ300 or ESKAJ350 adapter is required.
