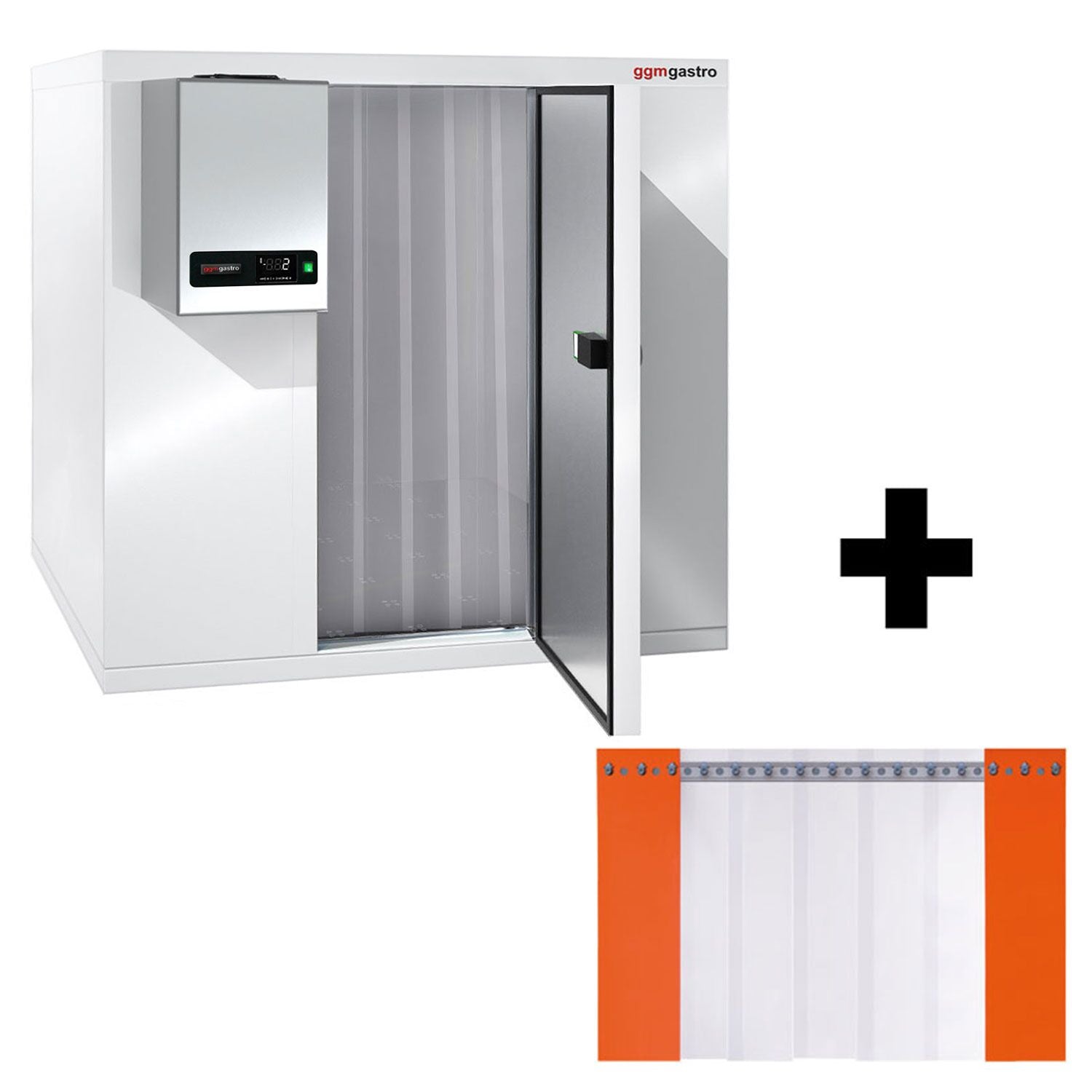

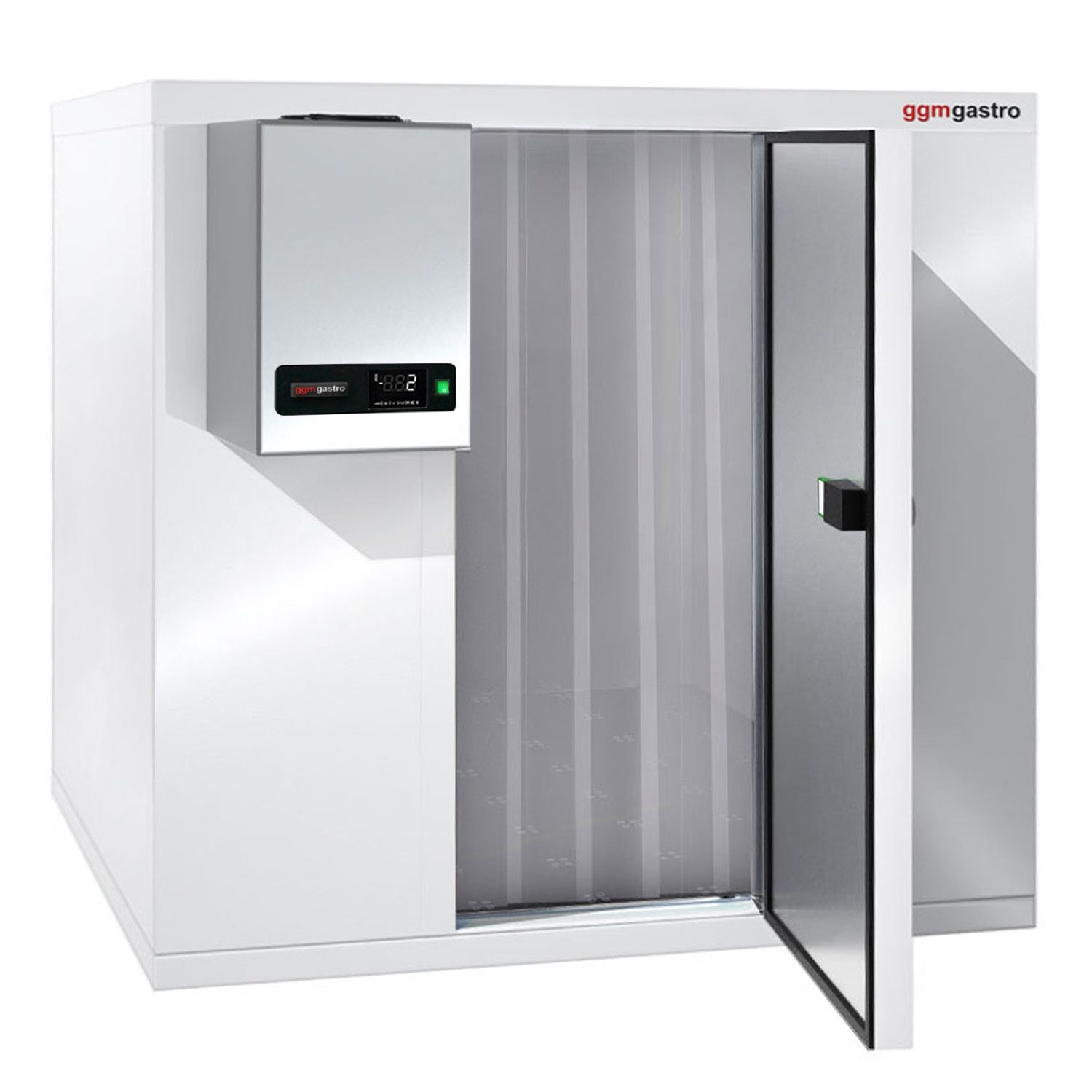

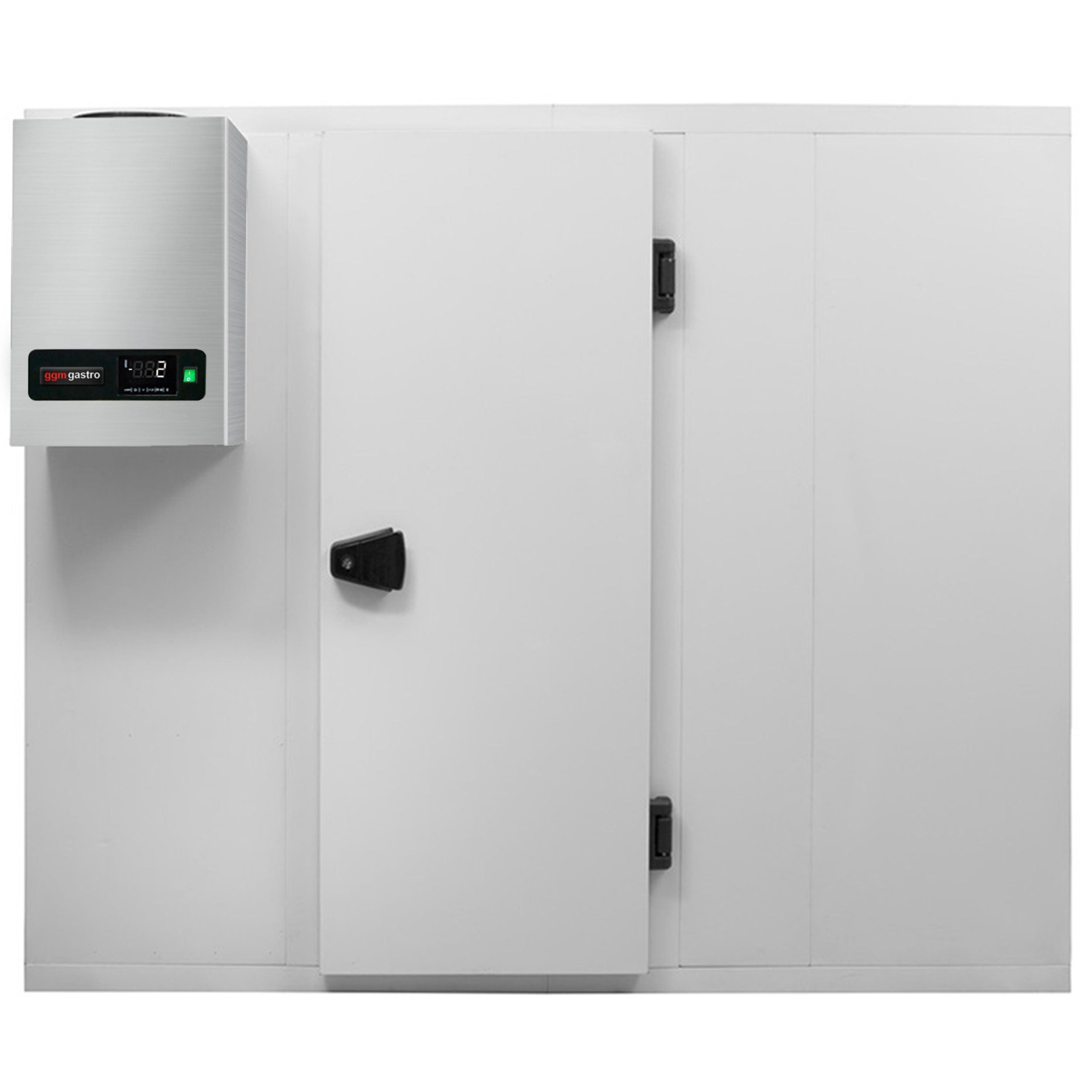

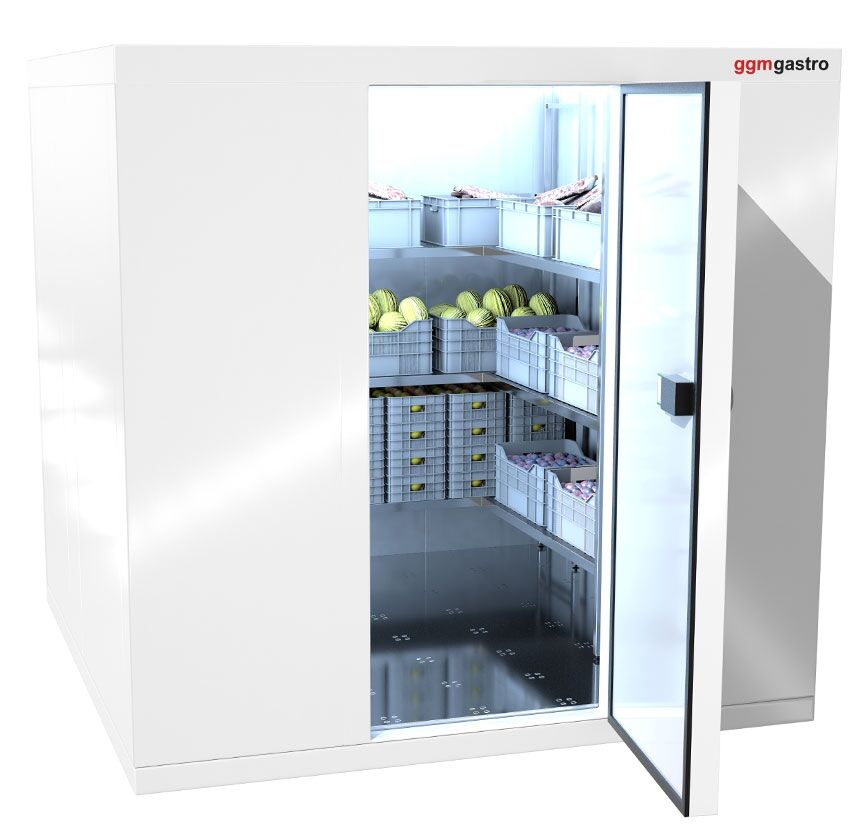

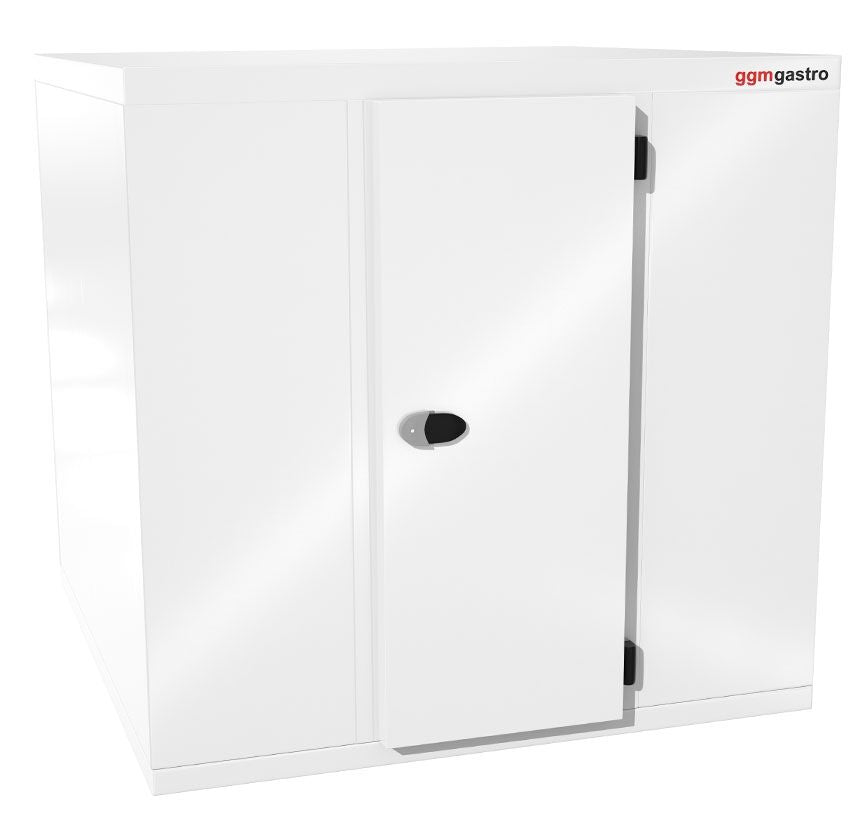

Freezing chamber - 1500x1500mm - 2.8m³ - including the freezing unit and the lamella curtain

Design

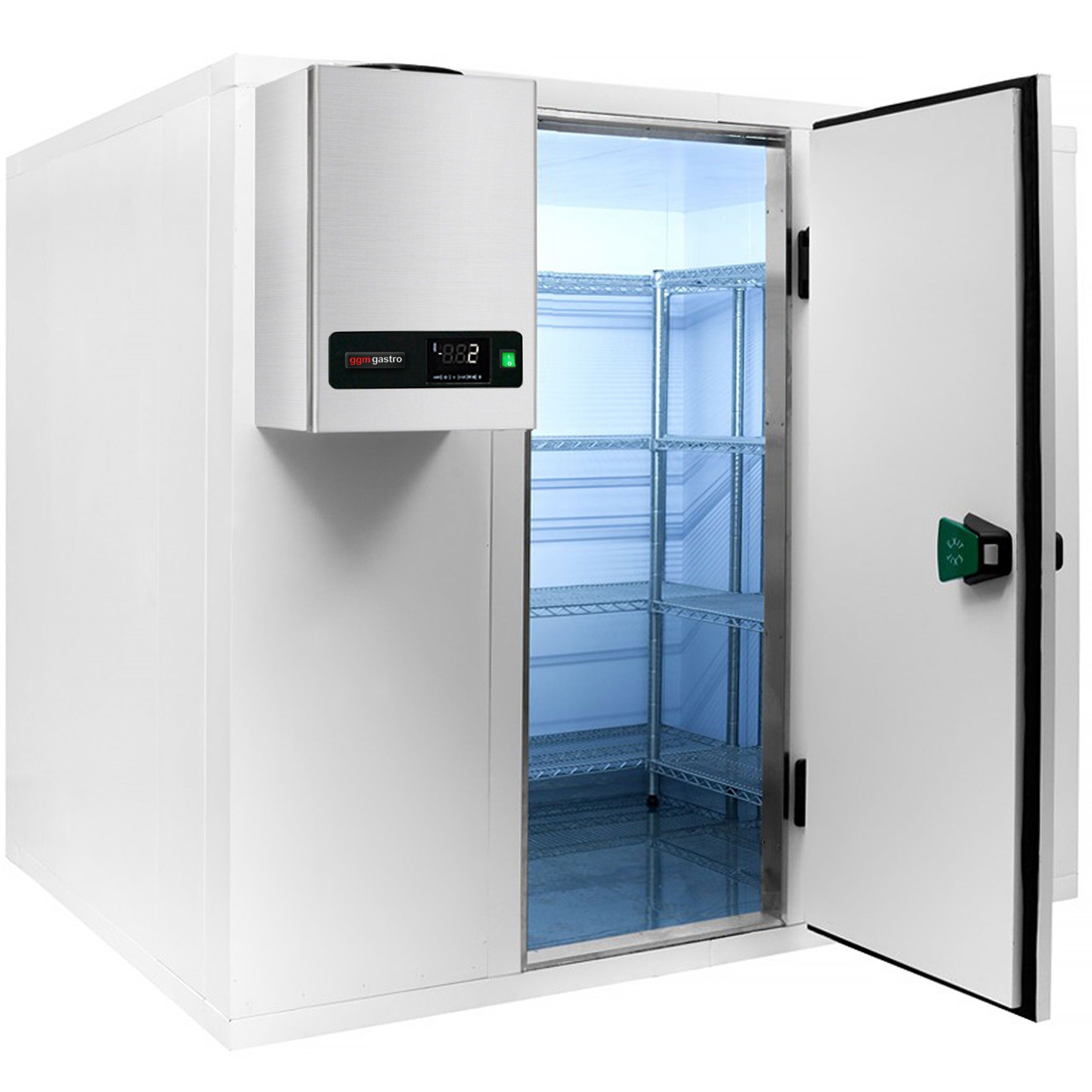

• Freezing chamber + Wall-mounted cooling unit

• The unit is permanently built into the cooling chamber panel

• including a lamella curtain for cooling

• High quality product

• Particularly hygienic thanks to easy cleaning

• Lots of space despite the compact design

• Perfect for storing supplies

• Rounded corners

• Long service life

Our recommendation

• Control module part no. WMKEV (Wifi) or BMKEV (Bluetooth)

• Automatic daily temperature documentation for the food control office (HACCP)

• Relieving staff and reducing formalities

• Constant temperature monitoring

• Avoid damaging the products

Quality

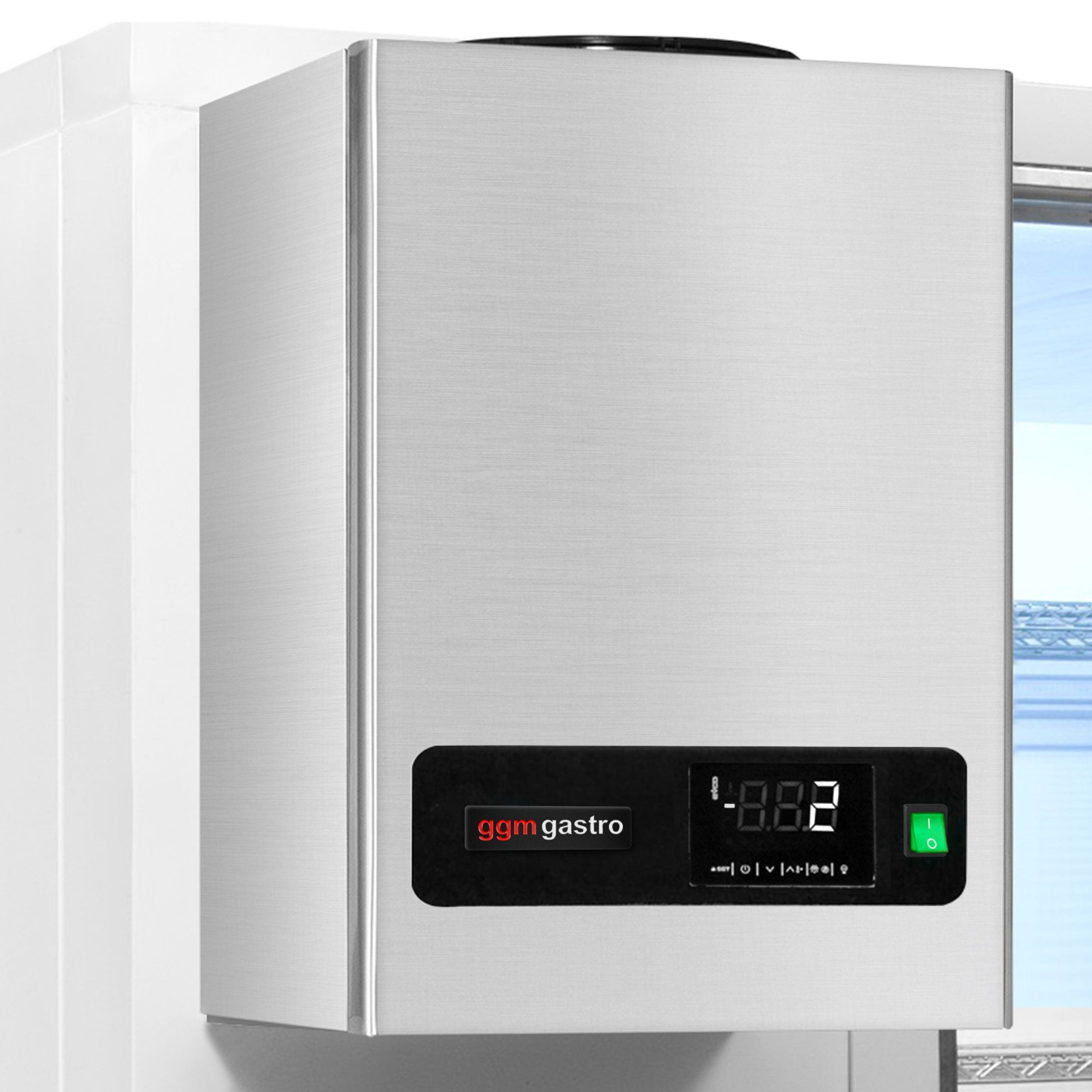

• Top-class wall-mounted unit

• Compact & Durable Design

• Energy-saving polyurethane insulation

• High quality product made in Europe

Connection

• Power: 650 Watts

• Electrical connection: 230VV / 1N/PE phase / 50 Hz

Sizes

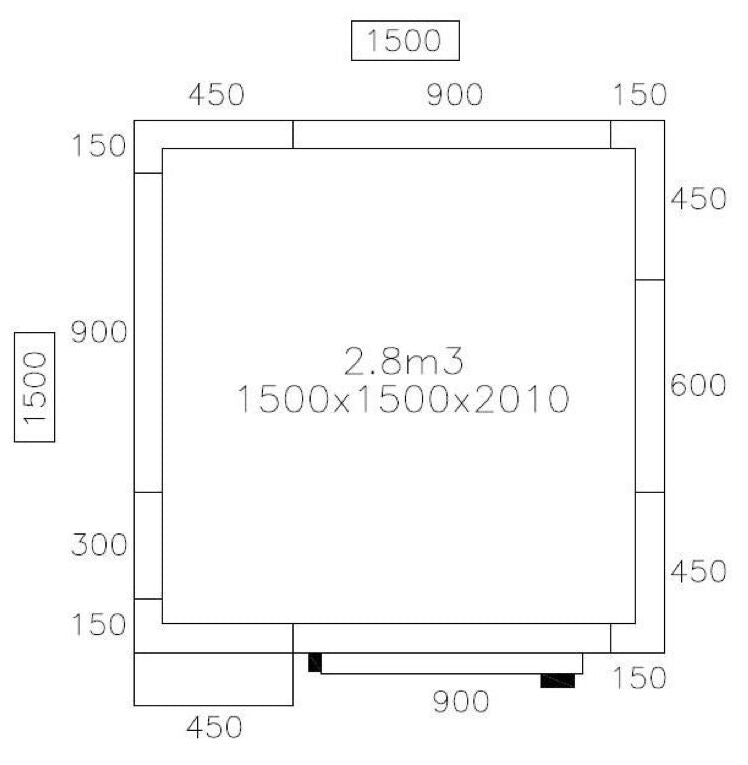

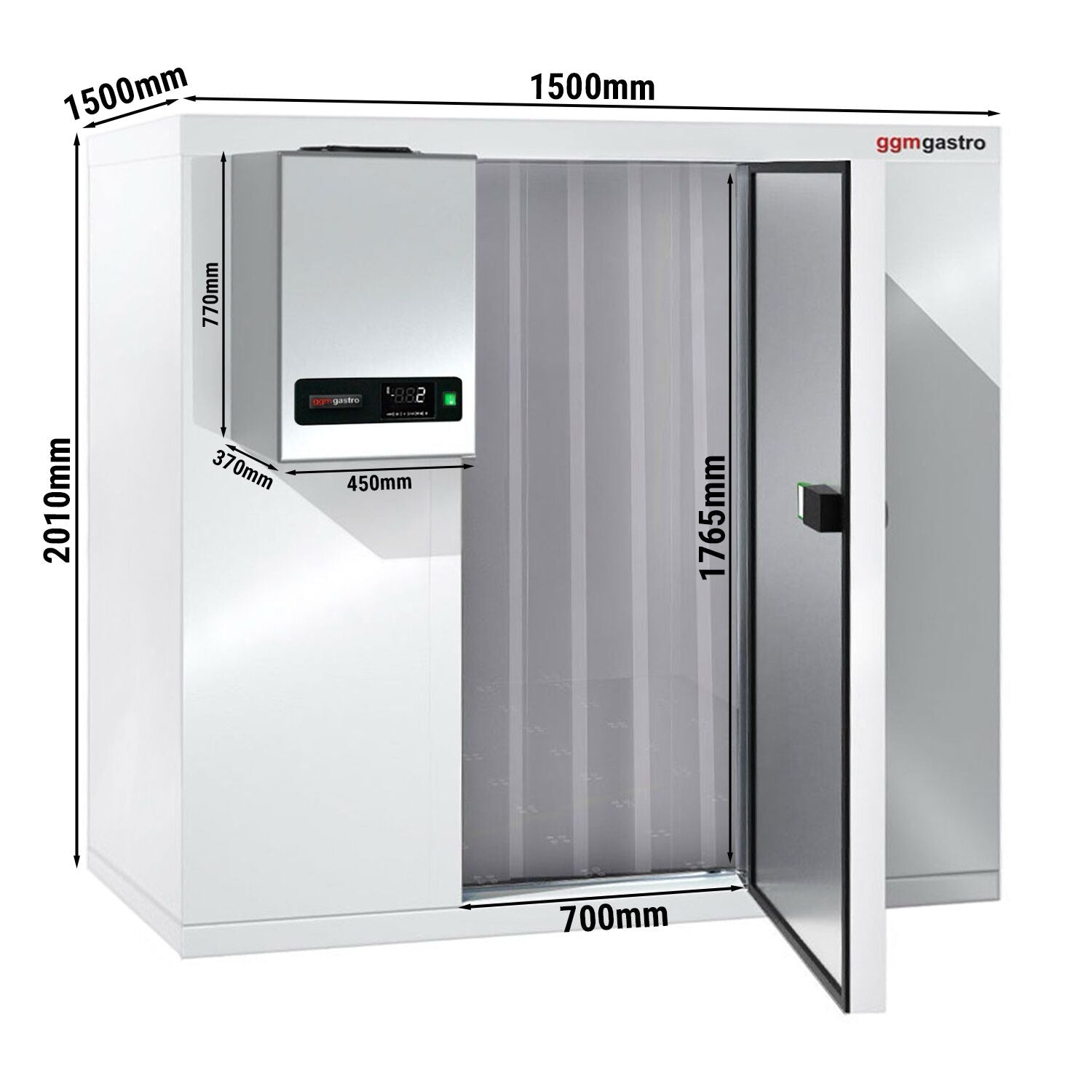

• External dimensions W x D x H: 1,500 mm x 1,500 mm x 2,010 mm

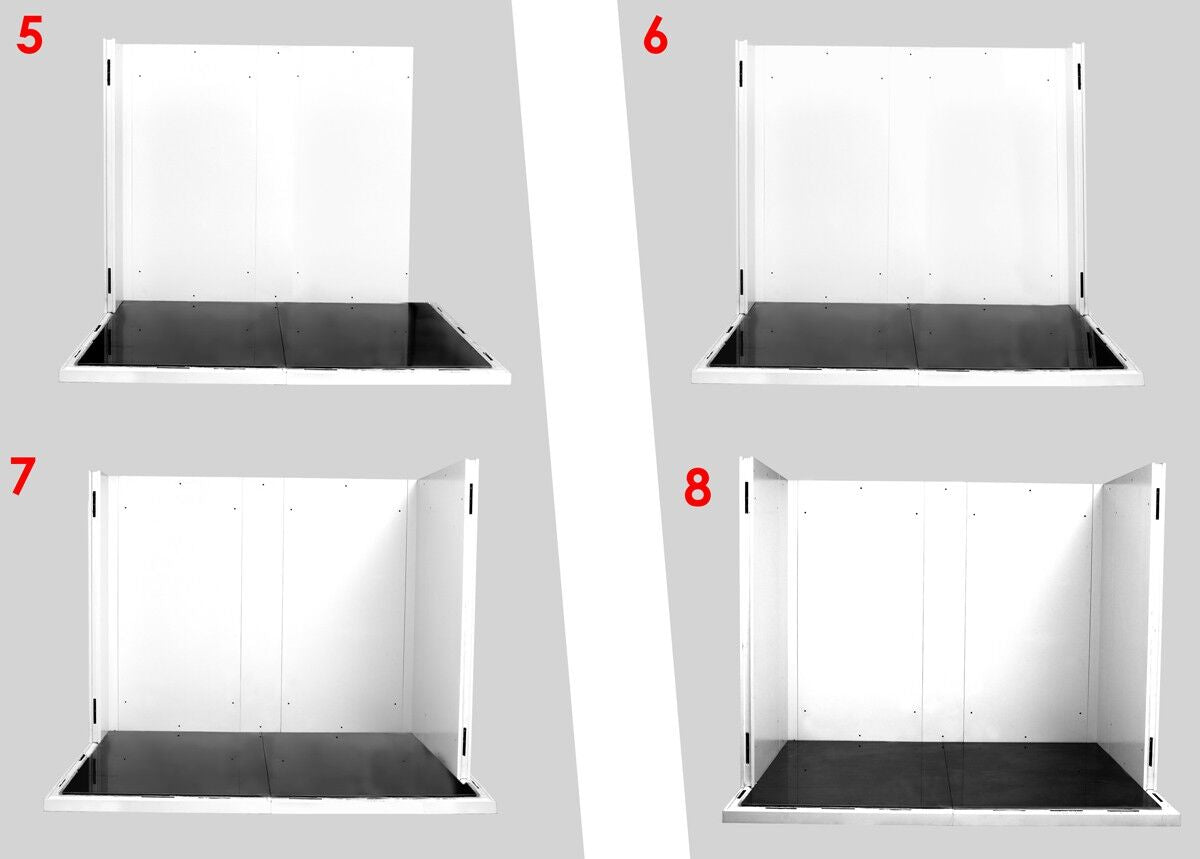

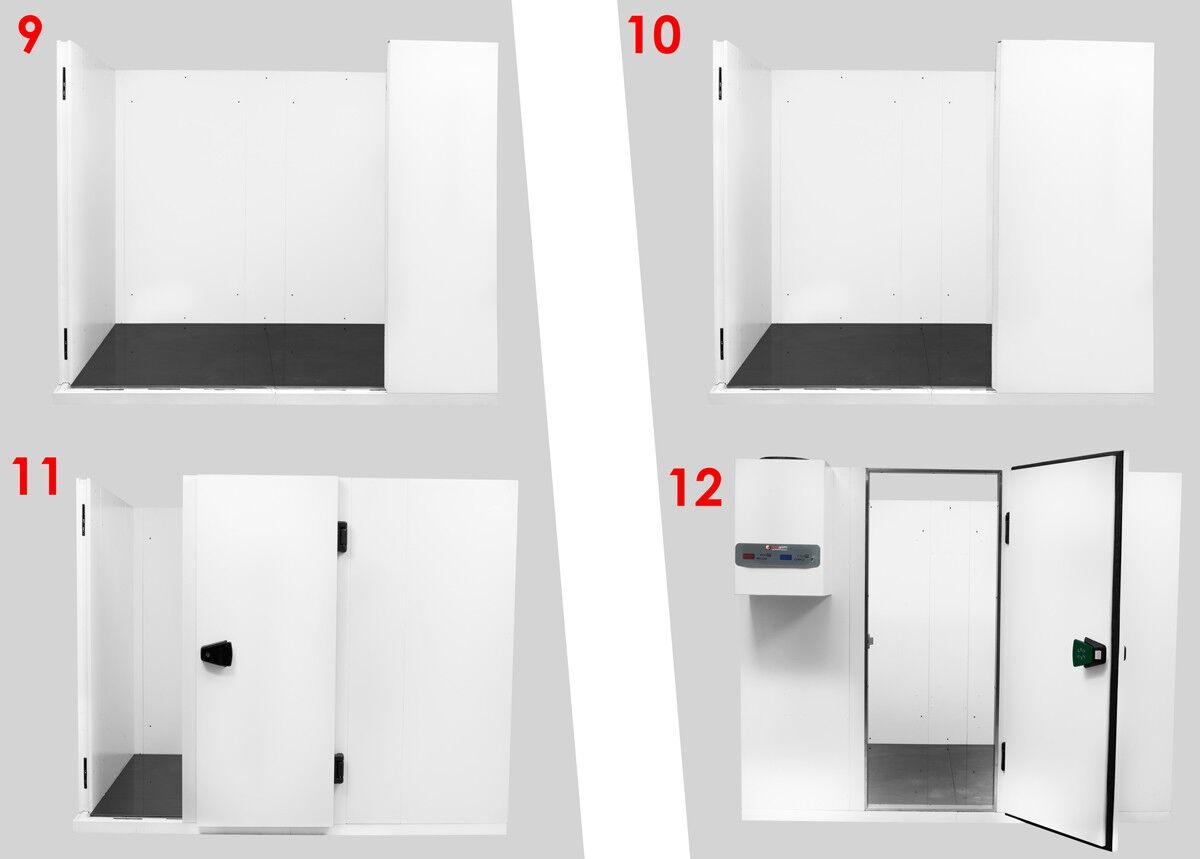

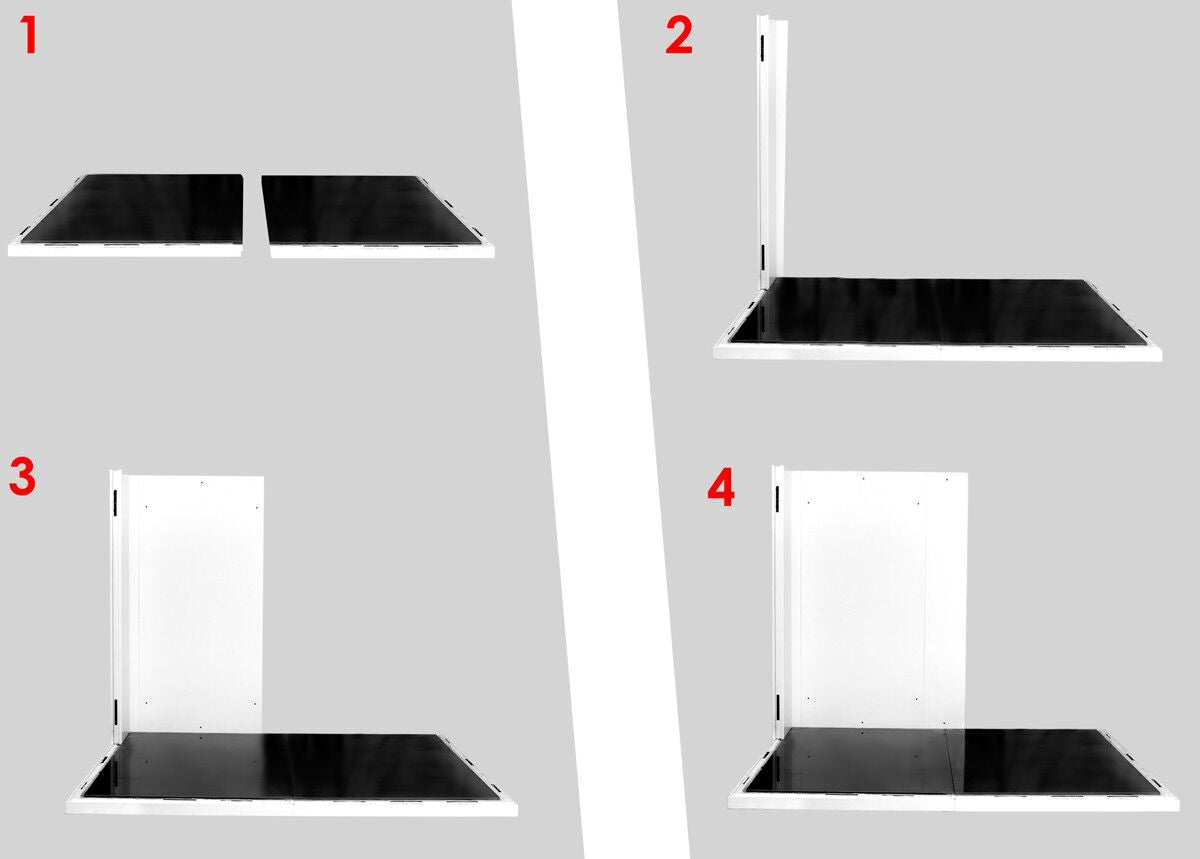

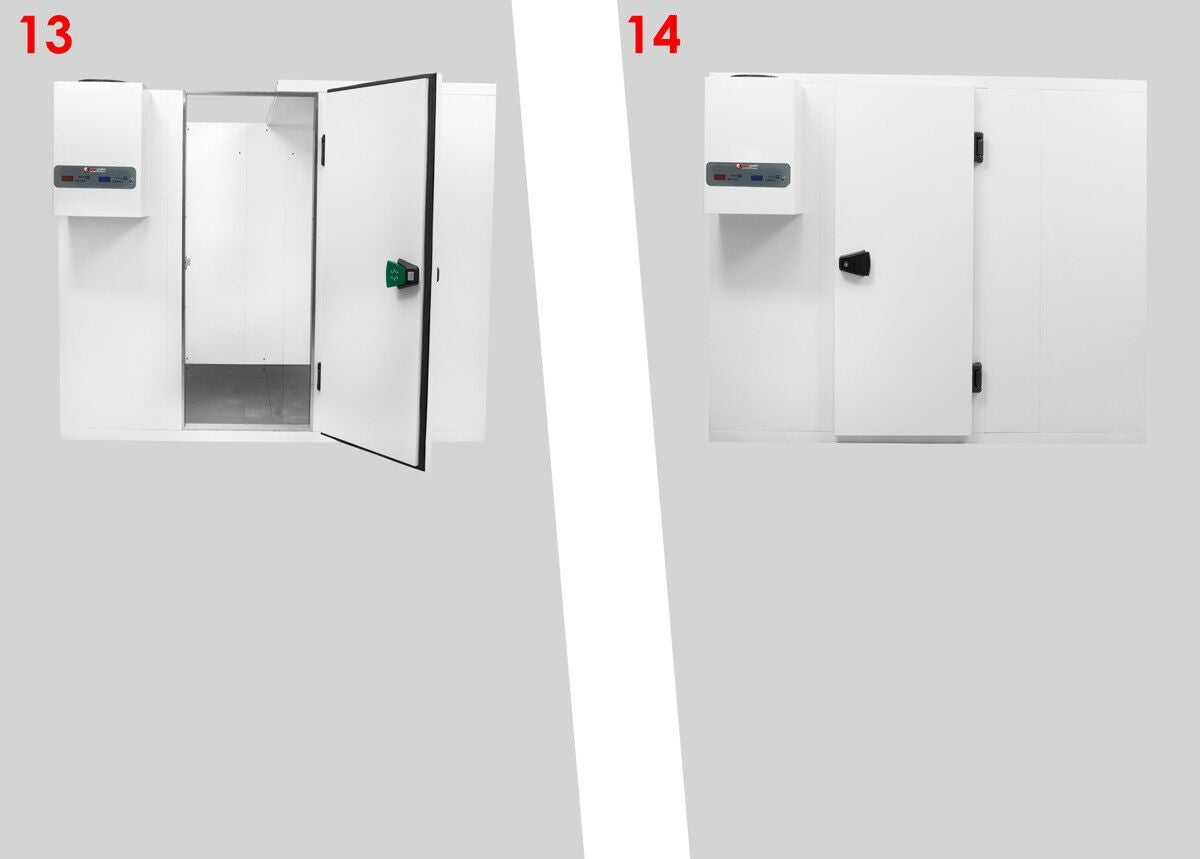

Wall-mounted construction

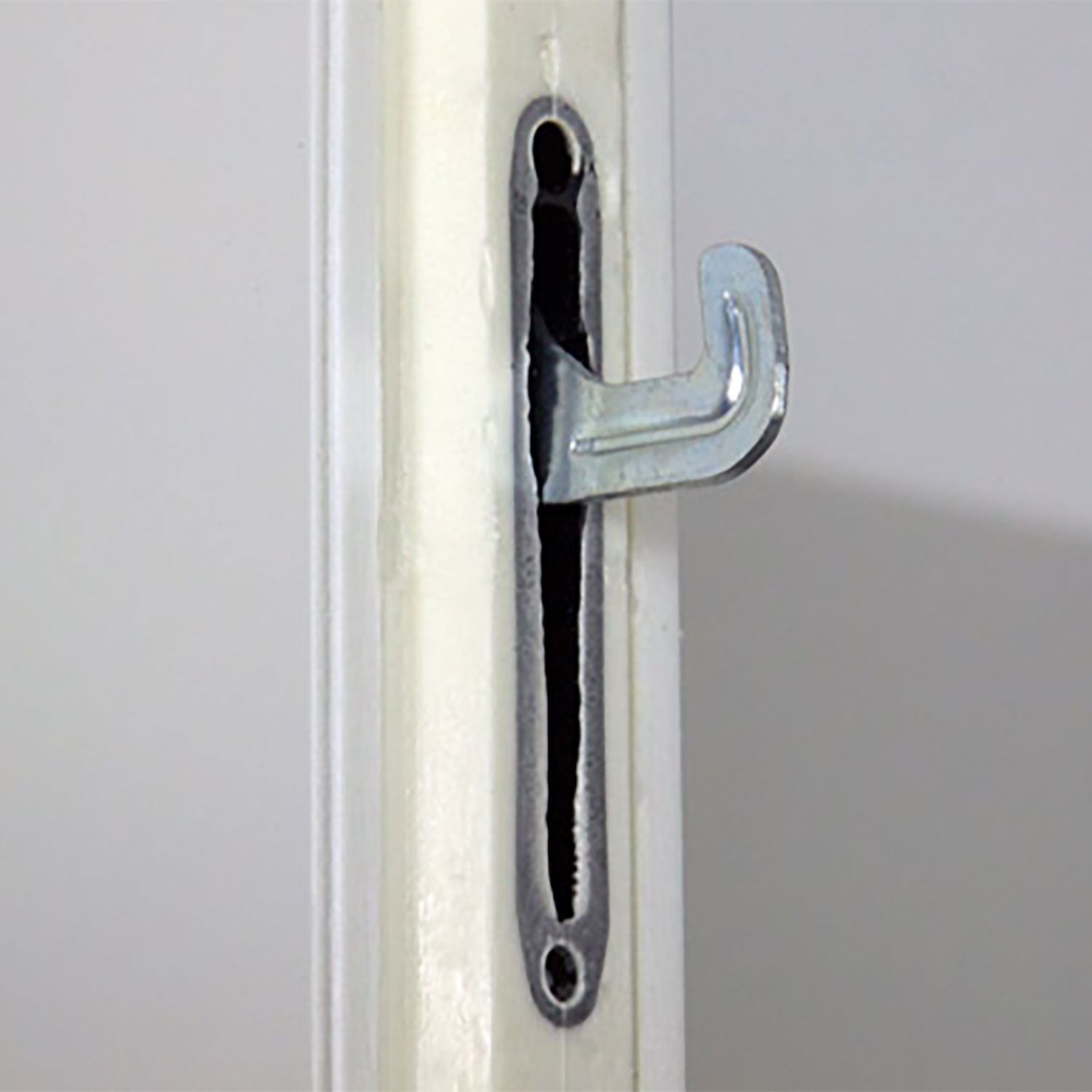

• Corrosion-resistant fasteners ensure stability and tightness of the connection

• Foam pullers for force-connecting elements

• Easy installation

Chamber floor

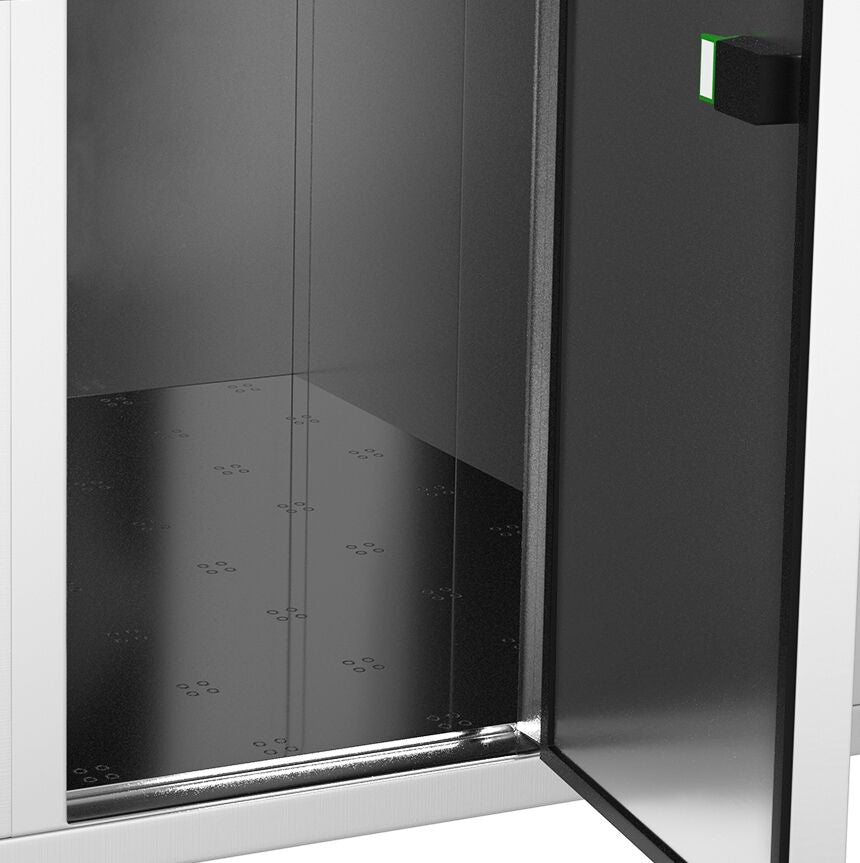

• Base with embossed surface for maximum grip

Cooling

• Refrigerant: R290

• On/Off switch

• Temperature: -10 °C to -22 °C

• Air-cooled capacitors

• Automatic defrosting with programmable controllers

• Powerful and constant cooling at outside temperatures up to 43 °C

Insulation

• Wall thickness 120 mm PUR (HFC and CFC free)

• In accordance with EU regulations (Halon Directives)

• Particular energy savings thanks to the best insulation

• Top-class insulation values ​​thanks to polyurethane

Surface

• made of stainless steel

• Surface color: Weiß, RAL 9002

• All elements are additionally equipped with a protective film

Door Features

• Lockable door with surface mounted locking mechanism

• Replaceable door hinges

• Interior with built-in emergency opening

• Door threshold made of stainless steel

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• Material compliant with European food standards

Optional accessories

• Shelves
