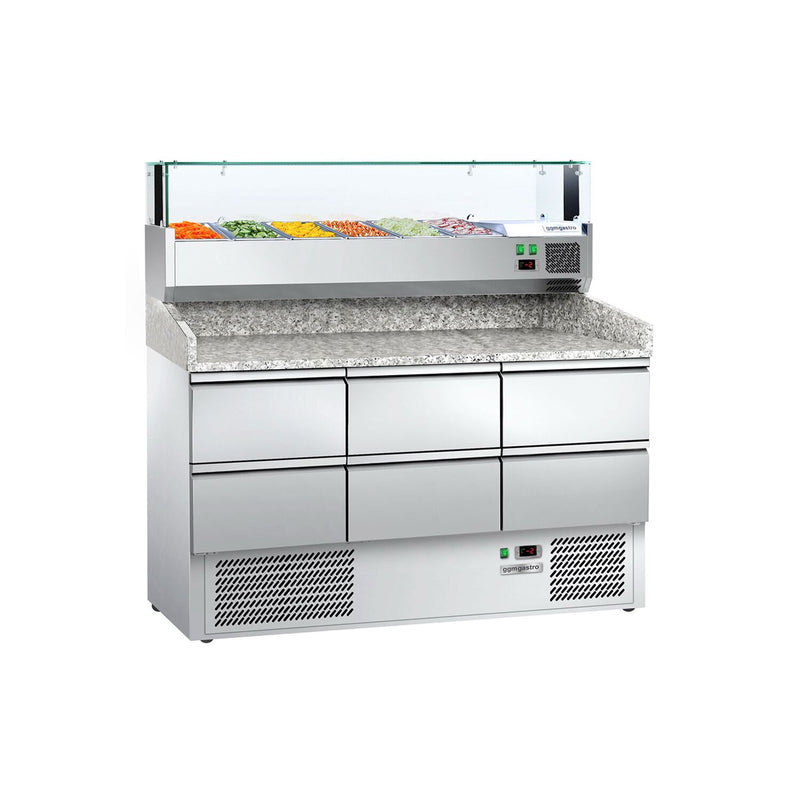

ECO pizza cooling table - 1400x700mm - with 6 drawers 1/2
Stan: Nowy
Kraj produkcji: China
Characteristics
- ECO version
- Working height: 850 mm
- Electronic control
- Digital display
- Usable capacity: 368 l
- Insulation of sides and doors 0
- High power with low power consumption (environmentally friendly)
- Height adjustable legs
- Suitable for pizzerias
- Easy to clean
Quality
- Housing and drawers made of high quality [stainless_steel] AISI 304
- Thickness of stainless steel: 0.70 mm
- Worktop with granite base
Cooling
- Cold rooms: convection cooling
- Temperature range: 2 °C to 8 °C
- Top-mounted refrigerated display cabinet: Static cooling
- Temperature range: 2 °C to 10 °C
- Extremely efficient cooling engine
- Low energy consumption
- Constant high-power cooling
- Refrigerant: R600a /35 g , CFC-free
Top-mounted refrigerated display case
- suitable for 6 x 1/4
- Simple glass construction
- With LED lighting
Interior fittings
- Internal part in AISI 304 stainless steel
Connection
- Cooling table power : 240 Watts
- Electrical connection: 1N/PE 50 Hz230V
- Power of the top cooling display: 230 Watts
- Electrical connection: 1N/PE 50 Hz230V
- Refrigerant: R600a /35 g , CFC-free
Sizes
- External dimensions W x D x H: 1,400 mm x 700 mm x 1,460 mm
Scope of delivery
- GN container NOT included in the scope of delivery
Guidelines
- In accordance with CE regulations ISO 9001 (international TÜV certificate)
- Natural production in line with hygiene and safety guidelines
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- ECO version
- Working height: 850 mm
- Electronic control
- Digital display
- Usable capacity: 368 l
- Insulation of sides and doors 0
- High power with low power consumption (environmentally friendly)
- Height adjustable legs
- Suitable for pizzerias
- Easy to clean
Quality
- Housing and drawers made of high quality [stainless_steel] AISI 304
- Thickness of stainless steel: 0.70 mm
- Worktop with granite base
Cooling
- Cold rooms: convection cooling
- Temperature range: 2 °C to 8 °C
- Top-mounted refrigerated display cabinet: Static cooling
- Temperature range: 2 °C to 10 °C
- Extremely efficient cooling engine
- Low energy consumption
- Constant high-power cooling
- Refrigerant: R600a /35 g , CFC-free
Top-mounted refrigerated display case
- suitable for 6 x 1/4
- Simple glass construction
- With LED lighting
Interior fittings
- Internal part in AISI 304 stainless steel
Connection
- Cooling table power : 240 Watts
- Electrical connection: 1N/PE 50 Hz230V
- Power of the top cooling display: 230 Watts
- Electrical connection: 1N/PE 50 Hz230V
- Refrigerant: R600a /35 g , CFC-free
Sizes
- External dimensions W x D x H: 1,400 mm x 700 mm x 1,460 mm
Scope of delivery
- GN container NOT included in the scope of delivery
Guidelines
- In accordance with CE regulations ISO 9001 (international TÜV certificate)
- Natural production in line with hygiene and safety guidelines
- Material compliant with European food standards
Technical values for the cooling table
sizes
Width | 1.400mm |
---|---|
Depth | 700mm |
Height | 1.016 mm |
Details
Useful content | 368 l |
---|---|
Stainless steel legs | Ø 40 mm (height adjustable) |
Drawers | 6 |
Refrigerant:
Cooling factor | convection cooling |
---|---|
Refrigerant | R600a / 35g |
Temperature | 2°C to 8°C |
Connected loads
Connection | Electric |
---|---|
power | 240 Watt |
Frequency | 50Hz |
Phases | 1N/PE |
Technical values for a top-mounted refrigerated display cabinet
sizes
Width | 1.400mm |
---|---|
Depth | 335mm |
Height | 435mm |
Cooling
Cooling factor | Static cooling |
---|---|
Defrosting | Manual |
Refrigerant | R600a / 35g |
Temperature range | 2°C to 10°C |
Connected loads
Connection | Electric |
---|---|
Tension | 230V |
Frequency | 50Hz |
Overall sizes
Width | 1.400mm |
---|---|
Depth | 700mm |
Height | 1,460 mm |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Not mounted |
Libra | 170kg |
Technical values for the cooling table
sizes
Width | 1.400mm |
---|---|
Depth | 700mm |
Height | 1.016 mm |
Details
Useful content | 368 l |
---|---|
Stainless steel legs | Ø 40 mm (height adjustable) |
Drawers | 6 |
Refrigerant:
Cooling factor | convection cooling |
---|---|
Refrigerant | R600a / 35g |
Temperature | 2°C to 8°C |
Connected loads
Connection | Electric |
---|---|
power | 240 Watt |
Frequency | 50Hz |
Phases | 1N/PE |
Technical values for a top-mounted refrigerated display cabinet
sizes
Width | 1.400mm |
---|---|
Depth | 335mm |
Height | 435mm |
Cooling
Cooling factor | Static cooling |
---|---|
Defrosting | Manual |
Refrigerant | R600a / 35g |
Temperature range | 2°C to 10°C |
Connected loads
Connection | Electric |
---|---|
Tension | 230V |
Frequency | 50Hz |
Overall sizes
Width | 1.400mm |
---|---|
Depth | 700mm |
Height | 1,460 mm |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Not mounted |
Libra | 170kg |
