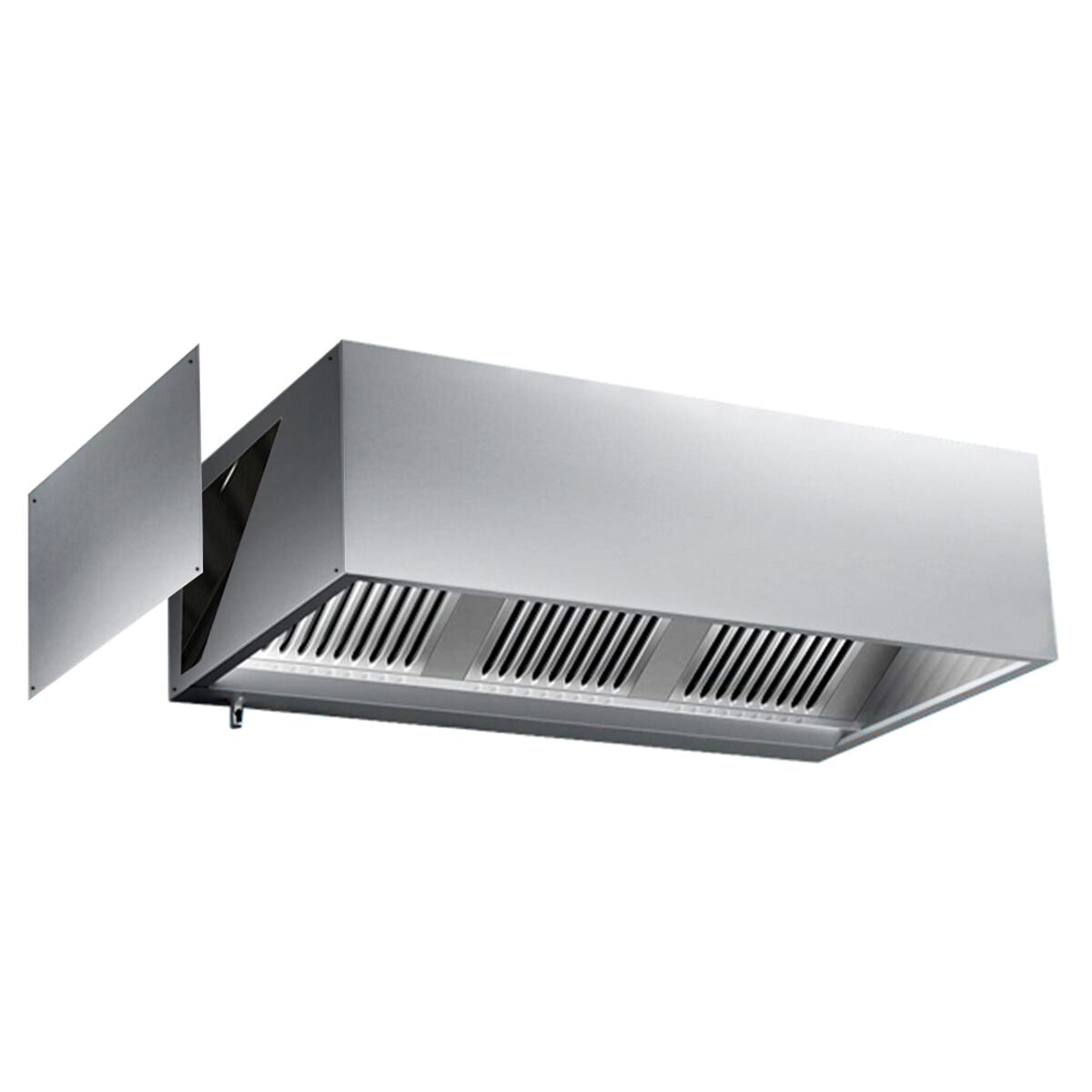

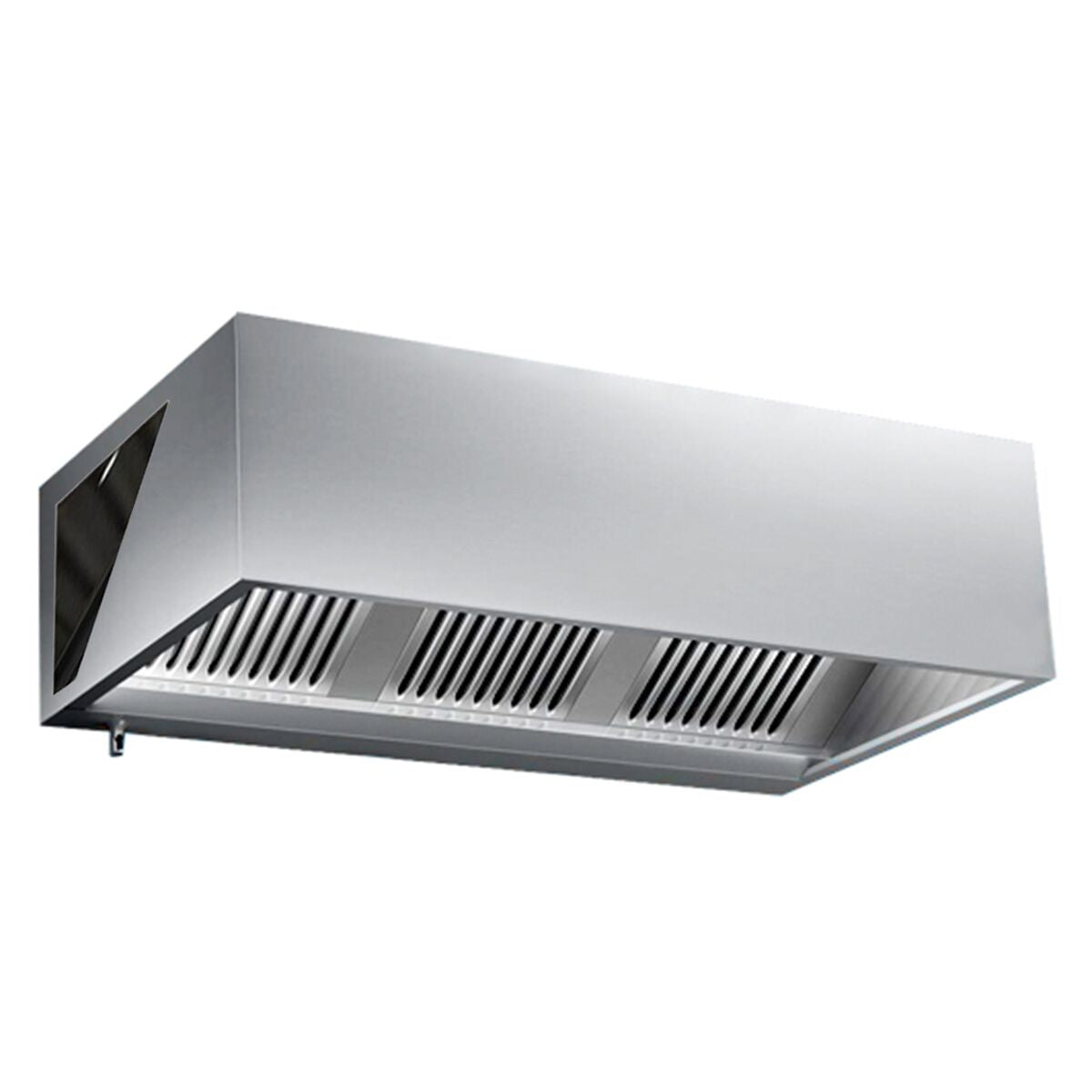

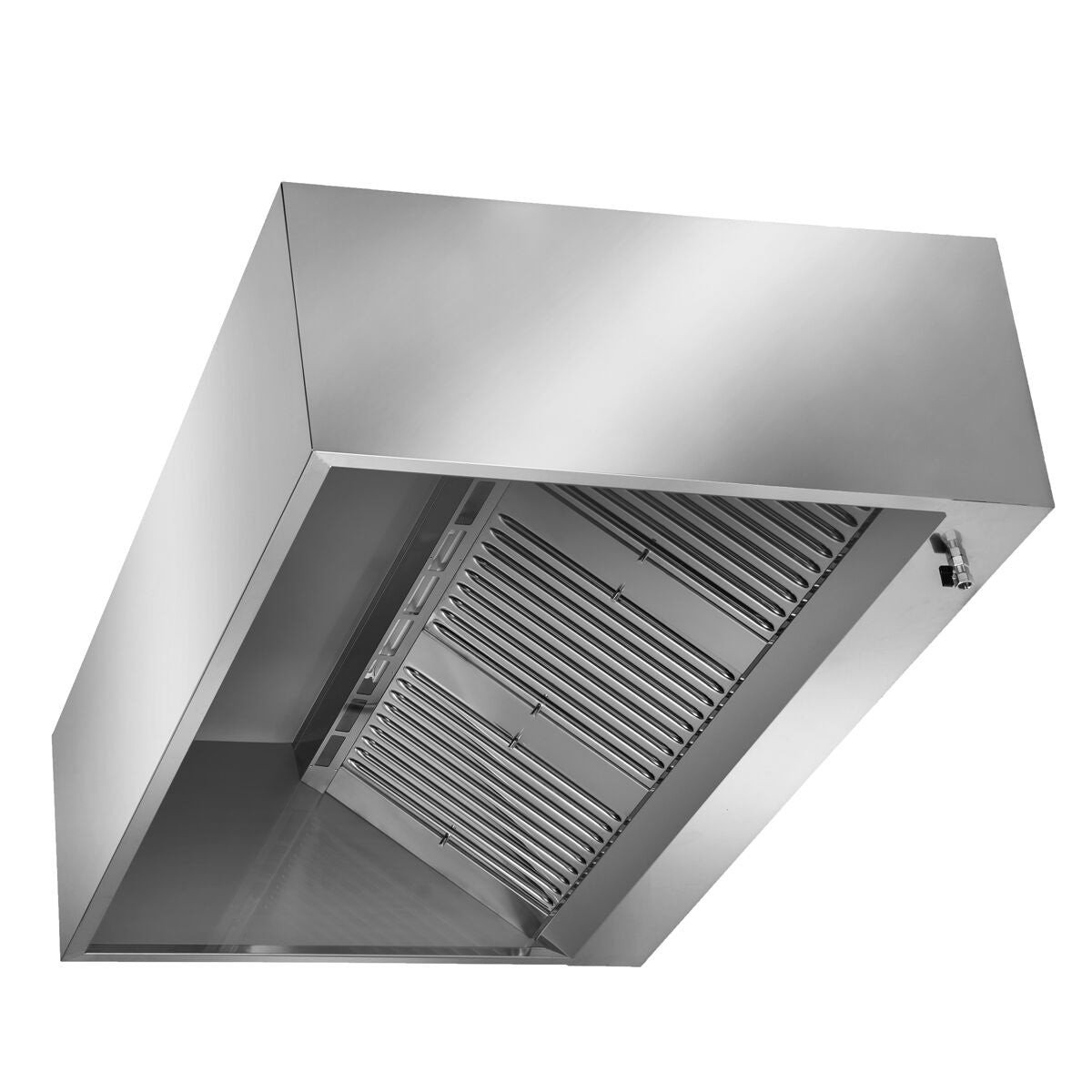

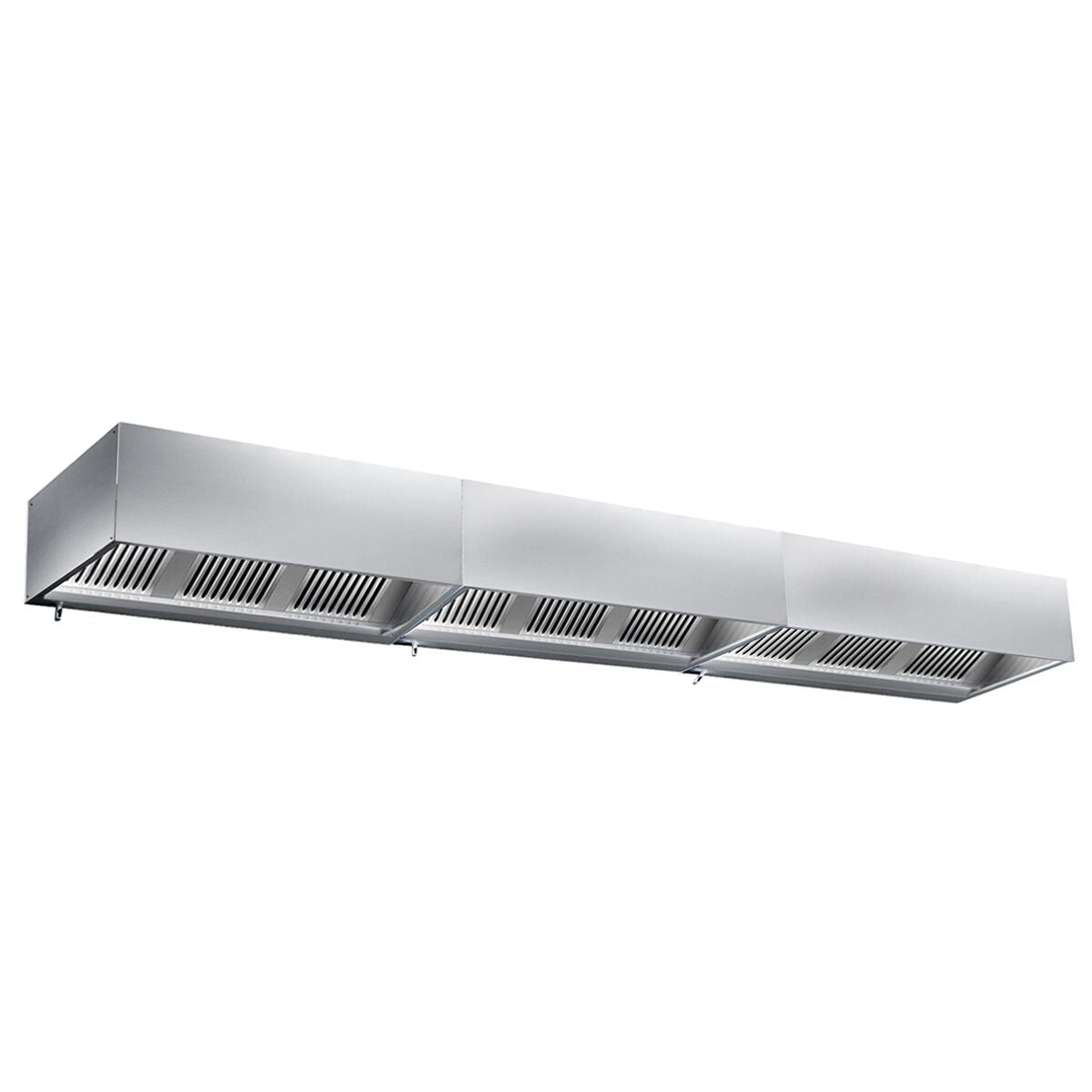

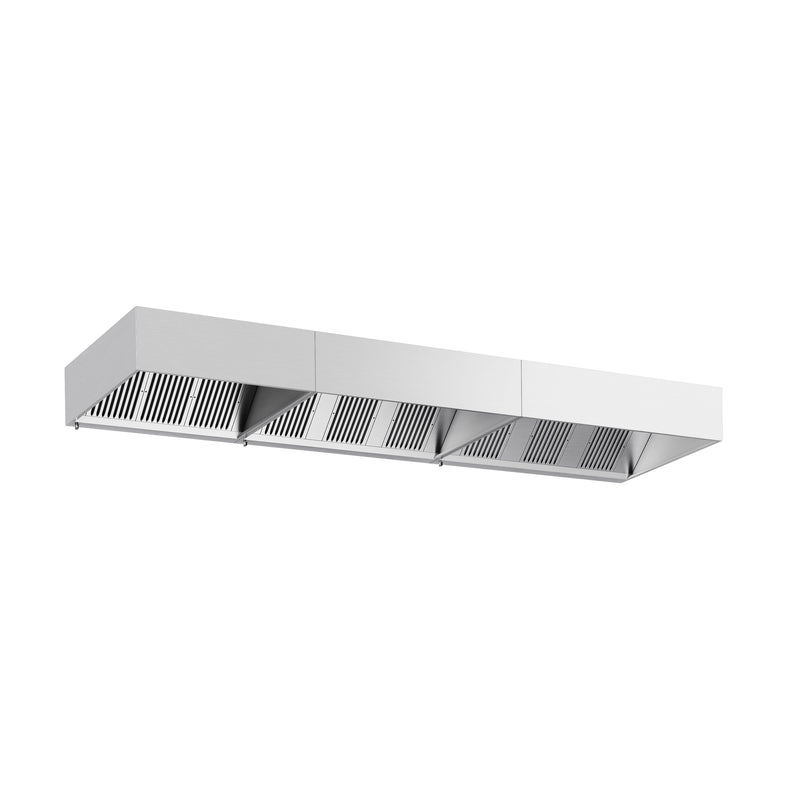

Box hood - 5.2 m - with filter and lamp

Characteristics

• Made in Europe

• Number of filters: 9 .

• Transport volume: 6,000 m³ per hour .

• High quality workmanship

• Electronically welded

• Drip-free, airtight grease collection channel with drain taps

• Scotch-Brite Satin Finish

• Compact & Durable Design

• Lighting

• Fat drain tap

• Installation in minutes

• Easy to clean

Quality

• Single-block construction made of AISI 430 stainless steel

• Grease-free labyrinth filter made of 18/10 stainless steel

Sizes

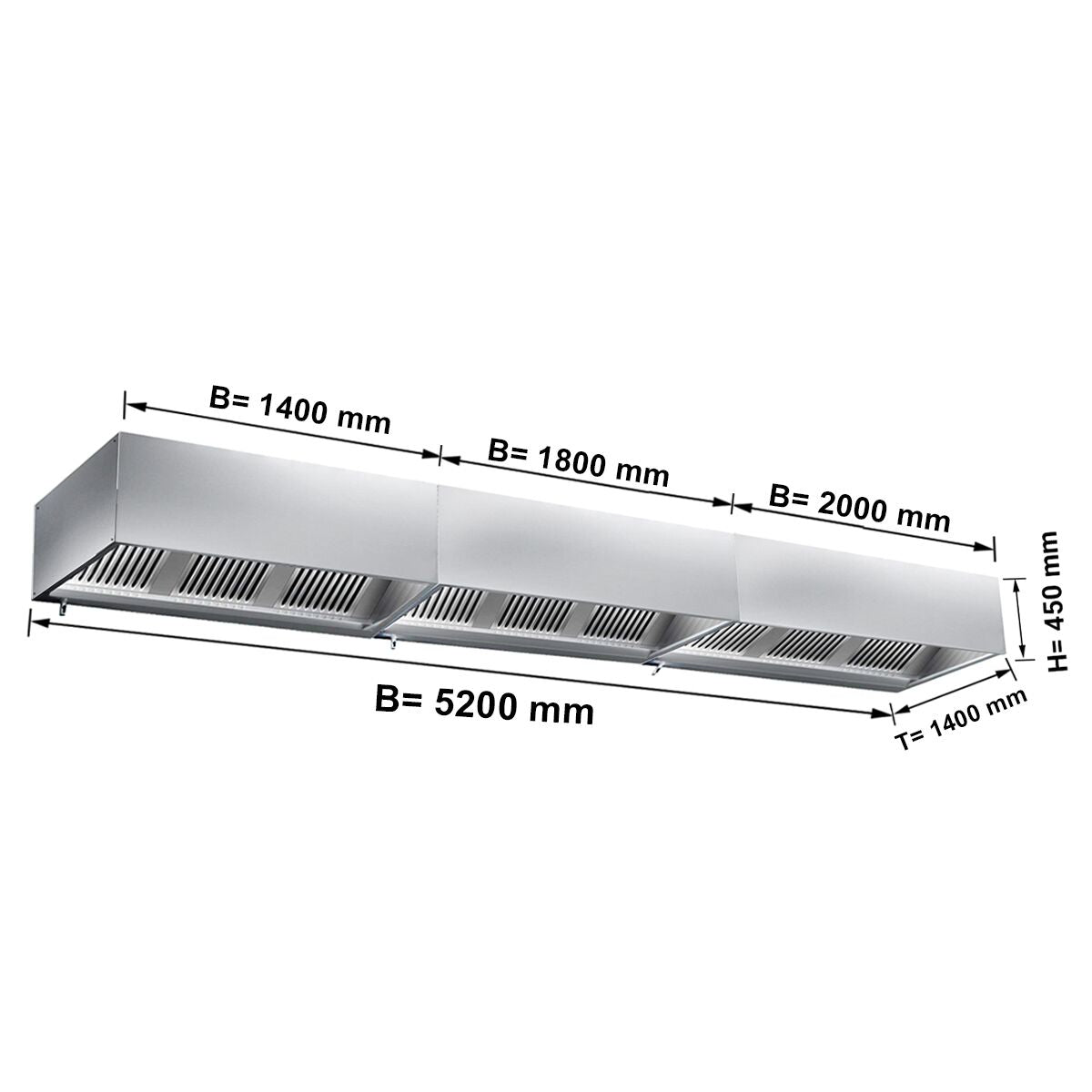

• External dimensions block 1 (WxDxH): 1,400 mm x 1,400 mm x 450 mm

• External dimensions block 2 (WxDxH): 1,800 mm x 1,400 mm x 450 mm

• External dimensions of block 3: W x D x H: 2,000 mm x 1,400 mm x 450 mm

Scope of delivery

• Flame retardant filter 9 / Type B

• Interior lighting

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• Material compliant with European food standards

Attention

• Mounting material is not included in the scope of delivery
