Ice maker - Cube - 155 kg/24 hrs.

Design

• ice maker

• Ice cube mold: Vollwürfel à 12 g or Halbwürfel à 6 g

• Ice production: 155 kg/ 24 hrs

• Container capacity 45 kg

• On/Off switch

• Intelligent front panel ventilation system

• The electronic control system allows operation in extreme climatic conditions

• Low energy consumption

• Flexible coating to maximize durability

• Constant high-power cooling

• Strong motor gearbox

• Speed, energy saving, cost saving, sales promotion

• Simple and reliable production design

• Refrigerant: R290

Quality

• Housing made of high quality AISI 304 stainless steel

Connection

• Power: 1.86 kW

• Electrical connection: V / 1N/PE phase / 50 Hz

• Drainage is required

Sizes

• External dimensions (WxDxH): 762 mm x 762 mm x 832 mm

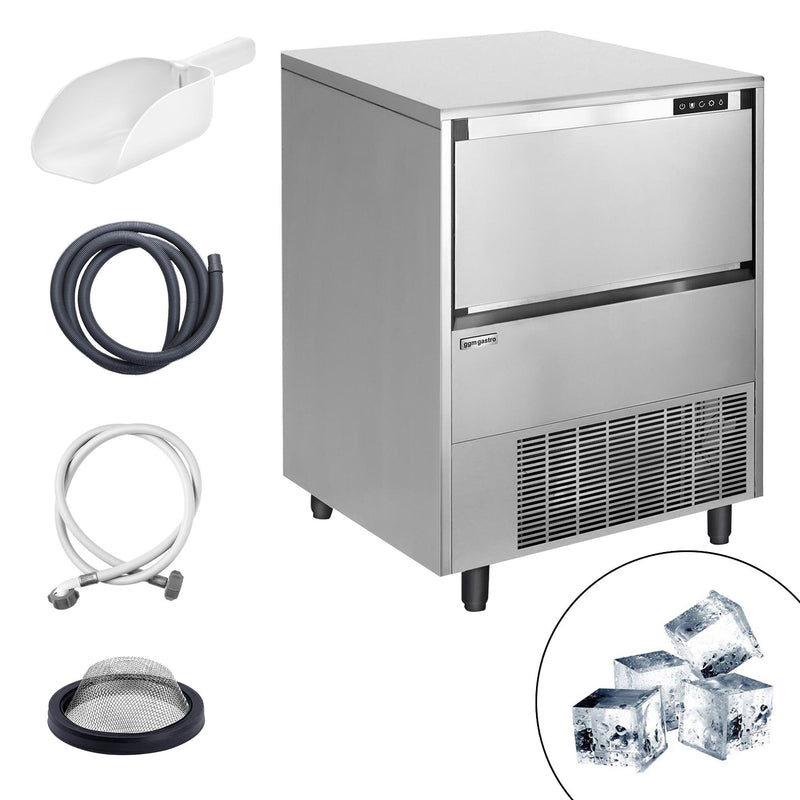

Scope of delivery

• 1x Water inlet hose

• 1x drain hose

• 1x ice cream scoop

• 1x Water inlet filter/gasket

• 1x Set of 4 height adjustable legs

Guidelines

• Natural production in line with hygiene and safety guidelines

• The product is CE marked in accordance with the regulations

• Material compliant with European food standards

Attention

• This device requires a permanent water connection!

• Note: Integrated containers not suitable for permanent storage of ice cubes!

• If you have used a descaler, please note that it must be regenerated after approx. 2,000 l of water flow. The actual maximum flow rate depends on the water hardness.

• Detailed instructions can be found in the "Download" and "Video" tabs.
