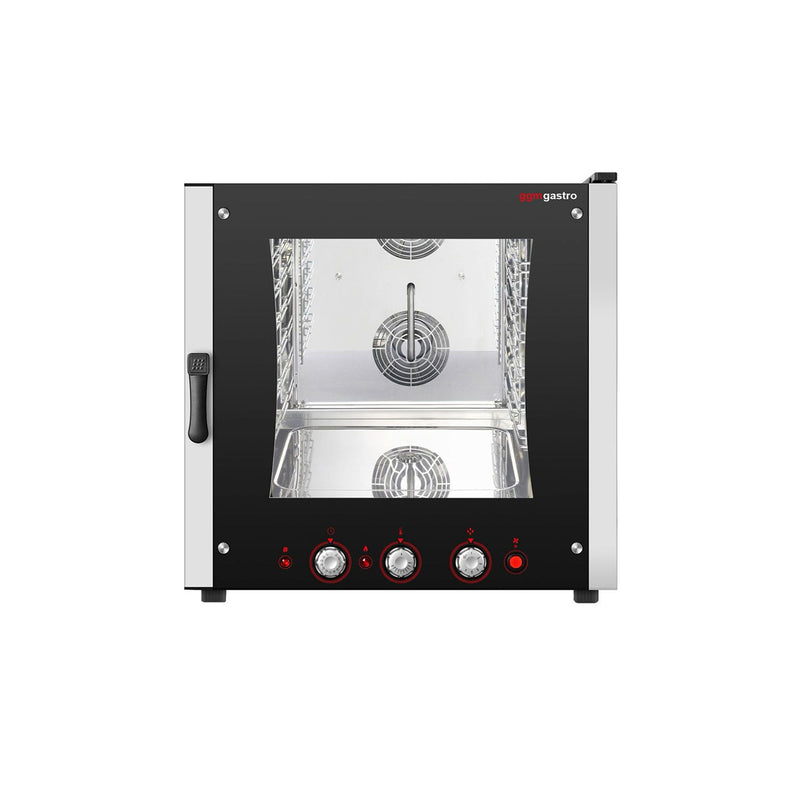

Bakery combi-steam oven - 6 x GN 1/1 & EN 40 x 60 cm
Stan: Nowy
Kraj produkcji: Italy
Characteristics
- Convection-steam bakery oven
- Baking trays are not included in the delivery
- Version: Electrical device
- Capacity: 6 x GN 1/1 or EN 40 x 60
- Low energy consumption thanks to high-quality insulation
- The inner glass can be opened for cleaning
- Right door hinge / left door handle
- With a capacitor tray under the door
- Safety thermostat
- Halogen lighting
- Easy to install accessories
Quality
- High-quality AISI 304 stainless steel casing
- Carbon fiber handle
- Rounded inside corners
Cooking chamber
- Maximum temperature: 270 °C
- Steam generation by controlled direct injection
- The steam function can be turned off completely
- Engine with control
- Distance between slide-in rails: 80 mm
Operation/Control
- Manual water injection control
- Mechanical timer 120 min
- Manual temperature control
Cooking options
- Cooking / Baking / Stewing / Grilling
- Baking
- Steaming / Dehydrating
- Defrosting
Connection
- Choice of electrical connection
- Power: 10.70 kW
- Electrical connection: 1N/PE-3N/PE / 50 Hz-60 Hz / 230/400V, 380V-415V
Sizes
- External dimensions W x D x H: 850 mm x 915 mm x 830 mm
Scope of delivery
- 6 x GN 1/1 mounts
Guidelines
- The product is CE marked in accordance with the regulations
- Natural production in line with hygiene and safety guidelines
- Material compliant with European food standards
Attention
- Delivery without connection material - must be connected by a specialist
