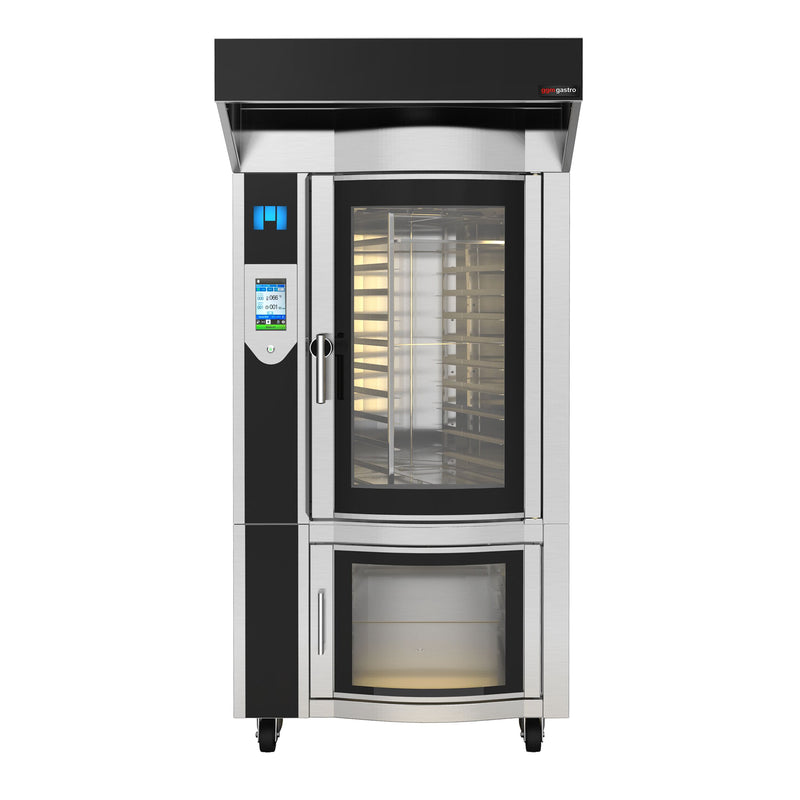

Rotary convection bakery oven - Touch - 10x EN 60x40 - including hood & proofer
Stan: Nowy
Kraj produkcji: Türkiye
Characteristics
- Rotary/convection bakery oven
- With proofer and extractor cover
- Stylish and ergonomic design
- Color: Stainless steel
- Touch screen control with display
- The oven and the proofer are controlled centrally via the display
- including handle: 10x EN 60x40
- Low energy consumption thanks to high-quality insulation
- Temperature range: 50 °C to 300 °C
- Right door hinge / left door handle
- With door lighting
- Easy change of position due to wheels
- 4 Wheels with 2 brakes
Quality
- Made entirely of high quality AISI 304 stainless steel
- Stainless steel door handle
- High-performance fume system
- Automatic fume control and air flap
Cooking options
- Cooking / Baking / Stewing / Grilling
- Baking
- Steaming / Dehydrating
- Defrosting
- Low temperature cooking
Connection
- Power: 15.50 kW
- Electrical connection: 380V / 3N/PE / 50 Hz
- With water connection and water drain
Sizes
- External dimensions W x D x H: 1,100 mm x 1,350 mm x 2,200 mm
Attention
- We recommend using the device only with a descaler, otherwise it may damage the engine and cooling system.
- This device requires a permanent water connection!
Scope of delivery
- Including hood & proofer
Guidelines
- The product is CE marked in accordance with the regulations
- Natural production in line with hygiene and safety guidelines
- Material compliant with European food standards
* nie obejmuje produktów outletowych
-
Beskrivelse
-
Teknisk data
-
Technical Specsheets
Characteristics
- Rotary/convection bakery oven
- With proofer and extractor cover
- Stylish and ergonomic design
- Color: Stainless steel
- Touch screen control with display
- The oven and the proofer are controlled centrally via the display
- including handle: 10x EN 60x40
- Low energy consumption thanks to high-quality insulation
- Temperature range: 50 °C to 300 °C
- Right door hinge / left door handle
- With door lighting
- Easy change of position due to wheels
- 4 Wheels with 2 brakes
Quality
- Made entirely of high quality AISI 304 stainless steel
- Stainless steel door handle
- High-performance fume system
- Automatic fume control and air flap
Cooking options
- Cooking / Baking / Stewing / Grilling
- Baking
- Steaming / Dehydrating
- Defrosting
- Low temperature cooking
Connection
- Power: 15.50 kW
- Electrical connection: 380V / 3N/PE / 50 Hz
- With water connection and water drain
Sizes
- External dimensions W x D x H: 1,100 mm x 1,350 mm x 2,200 mm
Attention
- We recommend using the device only with a descaler, otherwise it may damage the engine and cooling system.
- This device requires a permanent water connection!
Scope of delivery
- Including hood & proofer
Guidelines
- The product is CE marked in accordance with the regulations
- Natural production in line with hygiene and safety guidelines
- Material compliant with European food standards
sizes
Width | 1.100mm |
---|---|
Depth | 1.350mm |
Height | 2,200 mm |
Detail of the cooking chamber
including handles | 10x EN60x40 |
---|---|
Maximum temperature | 300°C |
Device type | Convection oven |
Production of fumes | Adjustable direct injection |
Detail Corrector
Width | 1.000mm |
---|---|
Depth | 1.300mm |
Height | 710mm |
Number of drawers (EN 60x40) | 12 |
Connected loads
power | 15.50kW |
---|---|
Tension | 380V |
Phases | 3N/PE |
Frequency | 50Hz |
Water connection | 1/2" inches |
Delivery
Shipping Method | Forwarding agency |
---|---|
Delivery Status | Installed |
Libra | 450kg |
